Description
GE Multilin 269 PLUS-D/O-100P-125V Motor Management Relay
The GE 269 PLUS-D/O-100P-125V is a GE Multilin 269 Plus motor management relay, configured as the drawout (D/O) version with a 100 Ω platinum RTD input and high-range control power suitable for 125 VDC systems. GE’s ordering documentation defines D/O as the drawout version, 100P as the 100 Ω platinum RTD option, and the HI power option as 80–300 VDC / 65–265 VAC.
| Specification | Details |
|---|---|
| Brand | GE / GE Multilin |
| Model | 269 PLUS-D/O-100P-125V |
| Product Family | Multilin 269 Plus |
| Product Type | Motor Management Relay |
| Version | Drawout (D/O) |
| RTD Option | 100 Ω Platinum RTD (100P) |
| Control Power | 90–300 VDC or 70–265 VAC, 50/60 Hz; 125 VDC is within the supported range |
| Phase Current Inputs | External CT inputs; configuration is specified by the order code |
| Ground CT | Required for D/O configuration; CT selection is part of the order code |
| RTD Inputs | Up to 12 programmable RTD inputs |
| Digital Inputs | 5 factory-programmed digital inputs |
| Output Relays | 4 output relays |
| Analog Output | 1 programmable analog output |
| Communications | Serial communications; optional Profibus/DeviceNet interfaces are documented for the platform |
| Typical Application | AC motor protection, monitoring, control, and motor management |
| Approx. Shipping Weight | 6.5 lb (2.9 kg) for a listed configuration; verify actual packed weight |
| Listed Shipping Dimensions | 7.5 × 11.5 × 5.0 in (19.1 × 29.2 × 12.7 cm), source-specific |
| Country of Manufacture | Canada, according to a current secondary-market listing; verify for the actual unit before customs documentation |

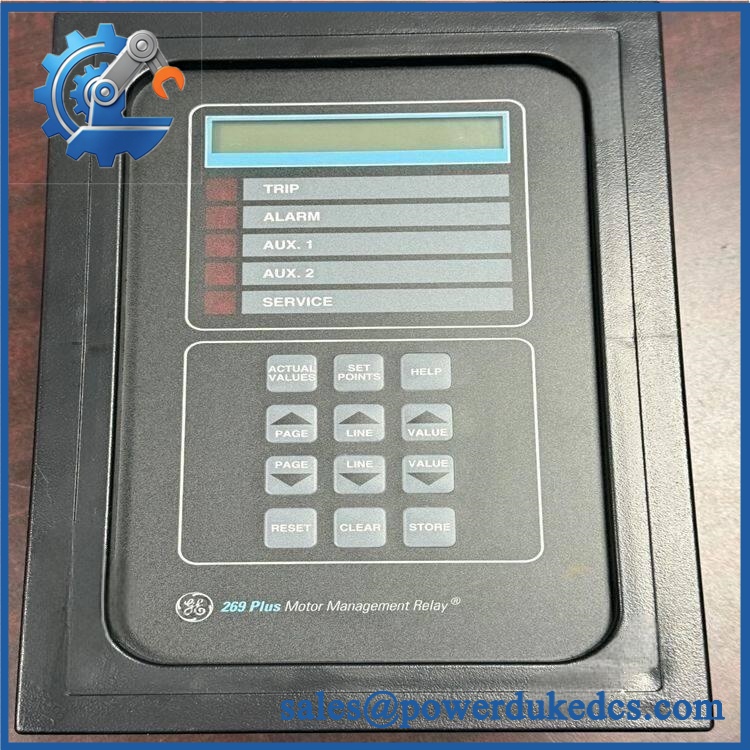

GE 269
Product Overview
The 269 Plus is a multifunction motor management relay designed to provide protection, monitoring, and control for AC motors. GE’s documentation describes functions covering motor overload and thermal protection, current-based protection, bearing temperature monitoring, undercurrent protection, and communication with supervisory control systems.
For this particular configuration, the D/O designation is significant. GE specifies the drawout version separately from the standard version, and certain ordering parameters—including CT information, failsafe code, and contact arrangement—are fixed at manufacture for drawout units rather than being freely field-selectable.
Configuration Breakdown
269 PLUS — GE Multilin 269 Plus motor management relay.
D/O — Drawout version.
100P — 100 Ω platinum RTD option.
125V — This ordering description is commonly used for the high-range power version intended for systems using 125 VDC control power. The GE documentation specifies a broad HI control-power range rather than a narrow 125 VDC-only input.
Procurement and Replacement Notes
When replacing an installed 269 Plus D/O, matching only the basic “269 Plus” family is insufficient. The phase CT ratio, ground CT arrangement, relay failsafe code, contact arrangement, RTD type, control-power range, and communications configuration can all affect the exact ordered assembly. GE specifically notes that several of these options must be specified when ordering drawout relays.
Before quotation or installation, verify the complete nameplate/order-code string, especially the CT and contact/failsafe portions that may not be visible in the shortened commercial description.
Lifecycle Considerations
The 269 Plus is a legacy GE Multilin product, and current market availability is primarily through industrial automation inventory and secondary channels. A current supplier listing still identifies the exact configuration as available, while GE’s documentation remains useful for configuration verification.
For critical motor applications, the spare should be checked against the installed relay’s order code and firmware revision, not just its nominal 269 Plus model. The instruction manual identifies the relay firmware revision as part of the device information.
FAQ
What is GE 269 PLUS-D/O-100P-125V?
It is a GE Multilin 269 Plus drawout motor management relay configured with a 100 Ω platinum RTD option and high-range control power suitable for 125 VDC applications.
Is the 125V version limited to 125 VDC?
No. GE’s technical specification gives the control-power range as 90–300 VDC or 70–265 VAC, 50/60 Hz.
What does 100P mean?
It designates the 100 Ω platinum RTD option.
What does D/O mean?
D/O means drawout version. Drawout models have order-code parameters that must be matched carefully during replacement.
Can another 269 Plus relay be used as a direct replacement?
Not automatically. The complete configuration—including CT ratios, ground CT, failsafe/contact arrangement, RTD type, power option, and firmware/application requirements—should be matched first.
