GE SD-98762 | Controller Module for Legacy Industrial Control

Description

• Brand: GE
• Full Model Number: SD-98762
• Associated Part Number: 101-098762-001
• Lifecycle Status: Legacy / Obsolete support item; current OEM lifecycle status not independently verified
• Core Function: Industrial control module; public records variously identify it as a controller, PLC-related module, or digital input assembly
• Top 3 Technical Specs: 101-098762-001 association; GE industrial control architecture; exact I/O and electrical configuration requires nameplate and host-system verification
• Reported Channel Configuration: 32 discrete inputs in one current third-party technical record
• Reported Input Type: Dry-contact or wetted-contact, nominal 24 VDC
• Reported Interface: VME-compatible host connection
• Stock & Condition: Physical inventory confirmation required; New Surplus / Used Tested subject to quotation
• Shipping: Emergency dispatch available subject to inspection completion and carrier cutoff

Identification note: Public records are inconsistent. One technical listing associates SD-98762 / 101-098762-001 with a 32-channel digital input module, while other listings describe it as a controller or PLC-related component. A separate indexed article connects the same model number with GE PLC serial communications and SNP identification. These differences make exact nameplate and host-system verification essential before procurement.

Obsolescence & Supply Chain Deep Dive

When an older GE control installation loses an SD-98762, the main procurement problem is often identification rather than simple availability. Publicly indexed records consistently associate SD-98762 with GE and part number 101-098762-001, but the published descriptions do not agree on the precise hardware role. One detailed record identifies it as a 32-channel discrete input module for GE Mark VIe-related applications, while other records classify the same part number as a controller or PLC interface. That discrepancy creates a real approval risk: ordering by model string alone can result in the wrong hardware family, connector arrangement, or host interface. For a shutdown-critical spare, the safer purchasing path is a serial-number or nameplate check against the installed unit (especially when the original cabinet documentation is incomplete).

The TCO argument centers on retaining the installed control architecture when the failed component can be matched correctly. Replacing one verified legacy module can avoid cabinet redesign, new field wiring, application revalidation, operator retraining, and a larger migration project. A current technical listing reports 32 discrete inputs, 24 VDC field signaling, and a VME-compatible host connection, which would make the module relevant to high-density industrial I/O applications if those characteristics match the physical unit being purchased. Those specifications should be treated as reported data, not OEM-confirmed data, until the actual board revision and documentation are checked.

Compatibility & Replacement Matrix

Field Traps (Watch Out)

Model-Number Ambiguity: The same SD-98762 / 101-098762-001 combination appears in public records under conflicting product descriptions. Do not approve a substitute until the physical nameplate, PCB markings, and host equipment are compared.

PLC Communications Assumptions: An indexed technical article associated with SD-98762 / 101-098762-001 discusses GE PLC communication using SNP ID matching. That evidence should not be interpreted as proof that every SD-98762 unit is a serial communications module; it does, however, reinforce the need to verify the host application and communication role before replacement.

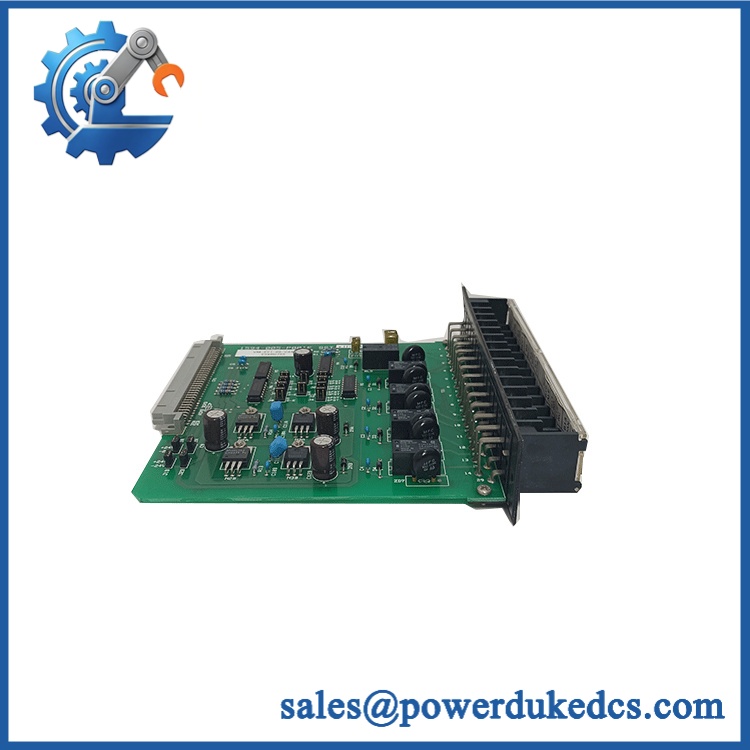

GE SD-98762

Quality Assurance & Testing SOP

Incoming Identity Control: Record the GE marking, SD-98762 designation, 101-098762-001 identifier where present, PCB revision, serial number, connector arrangement, and visible date or lot markings.

OEM Anti-Counterfeit Visual Inspection: Compare manufacturer markings, PCB artwork, connector construction, component population, solder workmanship, labels, and revision identifiers against available reference material. Any inconsistency triggers a hold status.

Mechanical Inspection: Examine card edges, connectors, mounting hardware, terminal interfaces, shields, and PCB surfaces for corrosion, cracks, bent contacts, contamination, or evidence of unauthorized rework.

Power-On Self-Test: Install the unit in an approved compatible test environment. Record host recognition, initialization behavior, diagnostic messages, and any available board status indicators. Do not assume the presence of a specific LED scheme until it has been confirmed on the physical revision.

I/O Load Testing: Where the physical unit is confirmed as the reported 32-channel discrete-input version, exercise every channel using controlled dry-contact and wetted-signal simulations within the applicable test limits. Verify state recognition, channel isolation behavior, and repeatability. The 32-channel and 24 VDC characteristics come from a current third-party technical record and require unit-level confirmation.

Communication Verification: Where the installed application uses PLC communications, verify the actual protocol, device identification, serial parameters, and host response. SNP-related behavior should be checked only when the installed system documentation confirms that architecture.

Extended Run Test: Operate the unit continuously under representative load and monitor resets, communication faults, input-state instability, unexpected alarms, and temperature behavior.

Final QA Record: Archive the exact model, part number, revision, photographs, test environment, measured results, and packing condition before release.

Procurement & Lifecycle FAQ

Is the GE SD-98762 genuinely in stock, and what is the emergency-shipping cutoff?
Stock should be confirmed against the physical inventory unit rather than a catalog entry. For emergency procurement, request confirmation of exact part number, revision, inspection completion, packing readiness, and the daily carrier cutoff before releasing the PO.

How do you verify the condition and authenticity of an obsolete or surplus SD-98762?
Use a unit-specific inspection process: manufacturer markings, 101-098762-001 identification where applicable, PCB revision, connector comparison, visual inspection, and functional testing. Because public descriptions of this model are inconsistent, the physical unit should take precedence over generic online descriptions.

Are there firmware or software compatibility issues engineers should check before issuing the PO?
Yes. Confirm the installed host platform, application role, driver or firmware environment, I/O mapping, communication protocol, and configuration data. For systems using GE PLC serial communications, verify the applicable SNP settings and device identification rather than assuming identical behavior across revisions.

Is SD-98762 a direct replacement for every GE module with a similar number?
No. The available records do not establish a universal cross-reference. The same model is described inconsistently across current public sources, so replacement approval should be based on exact part number, hardware revision, connector arrangement, electrical characteristics, and host-system documentation.

What warranty and return terms apply?
The quotation for the actual unit should state warranty duration, DOA coverage, RMA procedure, return window, and replacement or refund conditions. For a shutdown-critical spare, obtain these terms in writing before PO approval.
