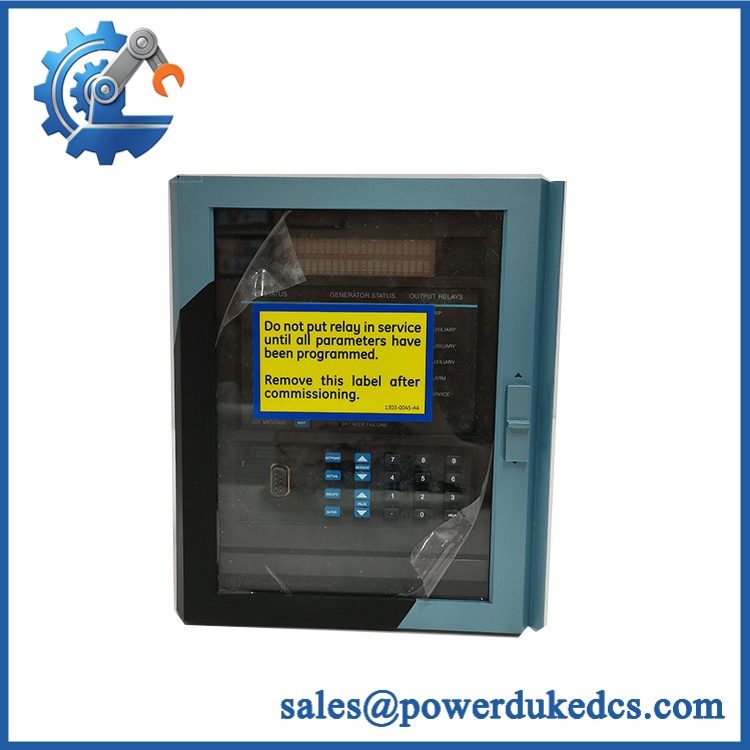

GE SR489-P1-HI-A20-E | 489 Generator Management Relay

• Brand: GE Multilin
• Full Model Number: SR489-P1-HI-A20-E
• System/Series Family: Multilin 489 Generator Management Relay
• Core Function: Generator protection, monitoring, metering, and control
• Top 3 Hardcore Specs: 489 relay platform; generator protection and management; high-input voltage configuration
• Stock Status: New Surplus / Fully Tested Refurbished subject to actual inventory inspection

Module 3: Commercial-Technical Deep Dive

A generator protection relay is not a component you replace by matching the front-panel dimensions alone. The GE Multilin SR489-P1-HI-A20-E belongs to the 489 Generator Management Relay family, designed to consolidate generator protection, monitoring, metering, and control functions within one protection platform. The 489 supports protection functions covering generator electrical faults, thermal conditions, abnormal operating conditions, and machine-related measurements, making correct model and configuration identification critical when restoring a protection panel.

The commercial advantage is consolidation. Instead of rebuilding a protection scheme around multiple independent instruments, the 489 architecture places generator protection and monitoring functions in a single relay platform, while communications and metering provide additional access to operating information. Exact capabilities depend on the installed relay configuration and firmware, so do not assume every 489 variant has identical I/O, communications, or control features. For replacement work, matching the complete SR489-P1-HI-A20-E ordering code is far safer than selecting a generic 489 based only on the family name.

Module 4: Compatibility & Installation Traps

Migration/Compatibility

• Replacement status: Configuration-specific GE Multilin 489 Generator Management Relay.
• Logic rewrite: Usually not required when replacing an identical relay configuration and preserving the existing settings file.
• Firmware flash: Do not assume it is required. Verify firmware compatibility with the existing settings and application before commissioning.
• Drop-in status: Potentially a direct hardware replacement when the complete model number, I/O arrangement, power supply, CT/VT configuration, communications, and firmware environment match.
• Settings: Back up the existing relay settings before removal whenever the original unit remains accessible.

⚠️ Field Traps (Watch Out)

• CT secondary hazard: Never open-circuit an energized CT secondary while the generator is operating. Confirm the CT circuits are properly shorted or isolated according to the site’s protection procedure before disconnecting the relay.
• CT polarity and phase sequence: A relay can power up and communicate normally while producing incorrect protection measurements if CT polarity, phase identification, or wiring sequence is wrong. Verify each phase against the approved protection drawing.
• Trip-circuit testing: Do not perform breaker-trip tests casually after installation. Isolate the appropriate trip outputs and use the site’s approved commissioning procedure before injecting test currents or simulating faults.

GE SR489-P1-HI-A20-E

Module 5: Quality Assurance SOP

Before shipment, the GE SR489-P1-HI-A20-E should undergo a protection-relay-specific inspection:

1. OEM anti-counterfeit visual inspection — verify GE Multilin markings, catalog number, nameplate information, terminal layout, front-panel construction, and relay identification.
2. Physical inspection — examine the enclosure, display, keypad, terminal blocks, connectors, mounting hardware, and PCB condition for damage or contamination.
3. Power-input verification — confirm the relay’s configured supply requirement against the ordering code before applying test power.
4. Power-on self-test (POST) — energize the relay using an appropriate test source and verify expected startup behavior, display operation, and ERR/RUN or corresponding status indications.
5. Protection-function verification — where the correct relay test system is available, apply controlled simulated electrical inputs and verify applicable protection elements against the configured settings.
6. Metering verification — check representative current, voltage, frequency, power, and other supported measurements against known test values.
7. Communication handshake verification — establish communication with the supported service or control interface and verify relay identification and data exchange.
8. Output verification — test applicable alarm, trip, and control outputs using a controlled protection-relay test setup; no live generator breaker should be operated during bench testing.
9. Final QC record — document catalog number, serial number where available, firmware revision, settings/test configuration, results, photographs, and packaging condition.

For generator protection hardware, power-up alone is not an acceptance test. CT/VT measurement integrity, protection logic, communications, and output behavior are the meaningful checkpoints.

Module 6: CRO-Driven Buyer FAQ

1. Is GE SR489-P1-HI-A20-E obsolete, and how do I verify an authentic unit?

The Multilin 489 is a legacy generator protection platform, so sourcing condition and exact configuration deserve close attention. Request a clear nameplate photograph showing the complete SR489-P1-HI-A20-E ordering code, serial information where available, firmware revision, and physical condition. A generic 489 relay should not be treated as equivalent.

2. Can I hot-swap the ?

No—do not assume this relay can be removed under power. Generator protection circuits can involve energized CT and VT circuits as well as breaker-trip outputs. Use a controlled shutdown or approved protection-maintenance procedure, observe LOTO requirements, and secure CT circuits before disconnecting the relay.

3. Will replacing the relay require reprogramming?

An identical replacement can often use the existing protection settings rather than requiring a complete protection scheme rewrite. However, the settings file, firmware compatibility, I/O configuration, CT/VT ratios, communications parameters, and output assignments must be verified before commissioning.

4. What is the most important check before ordering this relay?

Match the complete ordering code, not just “489.” Confirm , supply configuration, CT/VT inputs, I/O arrangement, communications requirements, firmware compatibility, and existing protection settings. If possible, provide photographs of the installed relay nameplate and terminal wiring.

5. What warranty and technical support are available?

Warranty duration should be stated according to the actual inventory condition—new surplus or tested refurbished. Technical support should cover model verification, configuration review, bench-test documentation, and installation guidance. Protection-setting engineering and live generator commissioning remain the responsibility of the site’s qualified protection engineer.
