Description
- Brand: GE Multilin
- Full Model: SR745-W2-P1-G1-HI-E-H
- Product Family: Multilin 745 Transformer Protection System
- Core Function: Transformer differential and protective relay functions for two-winding transformer applications
- Winding Configuration: W2 — two windings per phase
- Phase Current Inputs: P1 — 1 A phase-current inputs for the applicable windings
- Ground Current Inputs: G1 — 1 A ground-current inputs
- Control Power: HI — 90–300 VDC or 70–265 VAC at 48–62 Hz
- Display: E — enhanced display with larger LCD and improved keypad
- Environmental Option: H — harsh-environment conformal coating for chemical environments
- Condition: Availability and physical condition to be verified by lot before quotation
The SR745-W2-P1-G1-HI-E-H is a configured GE Multilin 745 transformer protection relay rather than a generic 745 unit. The order code identifies the electrical input arrangement, control-power range, display configuration, and environmental option. GE documentation specifically defines W2 as two windings per phase, P1 as 1 A phase-current inputs, G1 as 1 A ground-current inputs, HI as the high-voltage control-power option, E as the enhanced display option, and H as harsh-environment conformal coating.
Obsolescence & Supply Chain Deep Dive
The Multilin 745 is a mature transformer protection platform. For an installed relay population, procurement should therefore be based on the complete ordering code rather than the generic “745” family name. A replacement with a different current-input configuration, control-power option, display configuration, or environmental treatment can create commissioning, wiring, or protection-setting issues even when the front-panel family appears similar. GE documentation lists multiple phase-current combinations, ground-current combinations, control-power options, and display enhancements within the 745 family.
For lifecycle planning, retain the exact SR745-W2-P1-G1-HI-E-H configuration in the site’s spare-parts master data. A practical buffer strategy is to hold at least one verified spare for each transformer protection configuration where an outage would create a significant production or grid-impact risk. Before approving an alternate, compare CT input ratings, ground-current inputs, control voltage, protection functions, communications requirements, firmware, display configuration, and environmental treatment. GE has also published firmware documentation for the SR745, including firmware version 5.24, demonstrating that firmware revision is a relevant procurement attribute for this relay family.
Compatibility & Replacement Matrix
| Replacement scenario | Assessment | Procurement implication |
|---|---|---|
| Exact SR745-W2-P1-G1-HI-E-H | Direct configuration match | Preferred for minimizing configuration changes |
| SR745 with W2 but different P/G code | Conditional | Verify CT and ground-current ratings before substitution |
| SR745 with LO instead of HI | Not electrically equivalent | Control-power supply range must be checked |
| with different display option | Conditional | Verify faceplate and operator-interface requirements |
| without H option | Conditional | Confirm environmental requirements before deployment |
| Different GE Multilin relay family | Engineering review required | Protection settings, wiring, firmware, and commissioning may change |
| Newer transformer relay platform | Migration project | Requires protection-setting conversion and field validation rather than assuming drop-in replacement |
Field Traps
CT rating mismatch: The P1 suffix specifies 1 A phase-current inputs. Installing a relay configured for a different CT secondary rating without engineering verification can produce incorrect measurement and protection behavior. GE’s 745 ordering documentation explicitly distinguishes 1 A and 5 A input configurations.
Control-power mismatch: The HI suffix specifies a high-voltage control-power range of 90–300 VDC or 70–265 VAC at 48–62 Hz. Do not substitute a LO-version relay merely because the base 745 model is identical.
Environmental option mismatch: The H suffix identifies conformal coating intended for harsh chemical environments. For installations exposed to chemical contamination or demanding environmental conditions, verify that the replacement retains the required environmental treatment.

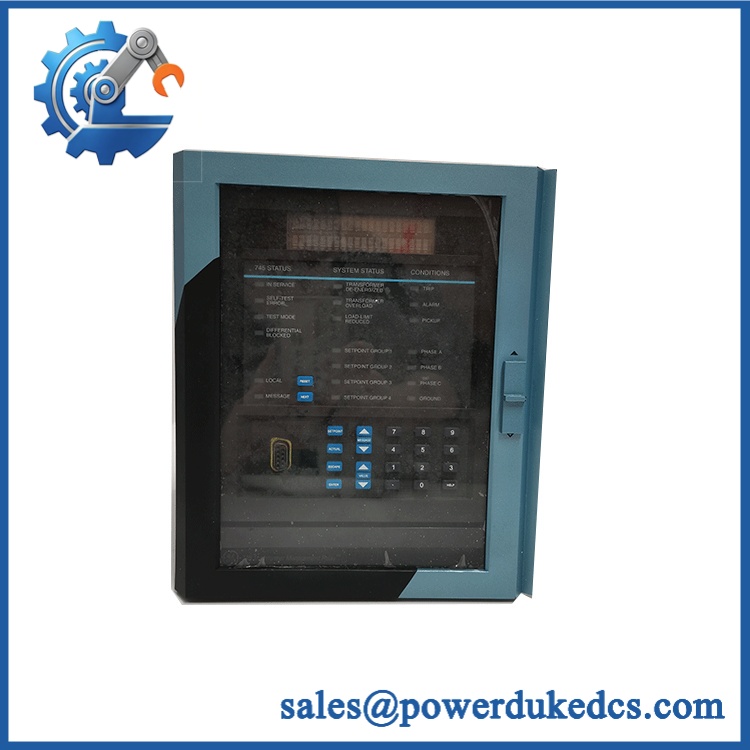

GE SR745-W2-P1-G1-HI-E-H
Quality Assurance & Testing SOP
A procurement-grade inspection should verify the complete nameplate ordering code:
SR745-W2-P1-G1-HI-E-H
The receiving checklist should include:
- Verify GE Multilin / 745 identification and complete ordering code.
- Compare the nameplate against the purchase order and approved configuration.
- Inspect the relay case, terminals, faceplate, LCD, keypad, mounting hardware, and connector areas for damage or unauthorized modification.
- Check serial number, manufacturing information, firmware identification, and available configuration records where accessible.
- Confirm that the unit has the HI control-power configuration.
- Confirm the P1 1 A phase-current input configuration and G1 1 A ground-current configuration.
- Confirm the E enhanced display and keypad configuration.
- Confirm evidence of the H harsh-environment conformal-coating option where identifiable from documentation or inspection.
- Power the relay using an appropriate controlled test source within the specified supply range.
- Verify startup behavior, LCD operation, keypad response, alarms, self-diagnostics, and event/status indications.
- Perform simulated current-input testing using calibrated secondary injection equipment.
- Verify representative transformer protection elements and trip/alarm logic against the approved test plan.
- Verify digital input and output operation where the site configuration uses these circuits.
- Verify communications only when the required communication interface and configuration are part of the supplied unit.
- Record firmware revision and configuration data before shipment.
- Preserve photographs of the nameplate, front panel, terminal areas, and packaging as part of the inspection record.
No test result should be represented as completed until the physical relay has actually passed the applicable procedure. For high-consequence transformer protection applications, final acceptance should be based on the site’s approved protection-testing procedure and settings documentation.
Procurement & Lifecycle FAQ
What does -W2-P1-G1-HI-E-H specify?
The code identifies a GE Multilin 745 transformer protection relay configured for two windings per phase, 1 A phase-current inputs, 1 A ground-current inputs, high-voltage control power, enhanced display, and harsh-environment conformal coating.
What is the control-power requirement?
The HI option is rated for 90–300 VDC or 70–265 VAC at 48–62 Hz according to GE’s published 745 ordering information. Verify the installed control-power source before replacement.
Is a different configuration automatically interchangeable?
No. The 745 family contains multiple CT input, ground-current, control-power, display, and option configurations. A replacement should be checked against the complete ordering code and the installed protection scheme rather than the base model alone.
Which firmware information should procurement record?
Record the installed firmware revision whenever possible. GE has published firmware documentation, including a version 5.24 release, so firmware should be treated as a lifecycle and commissioning data point.
What should be confirmed before purchase?
Confirm the exact ordering code, physical condition, serial number, firmware revision, nameplate photographs, included accessories, warranty terms, and actual availability. For a critical transformer application, also confirm whether the supplied relay has the expected configuration and environmental treatment before shipment.
