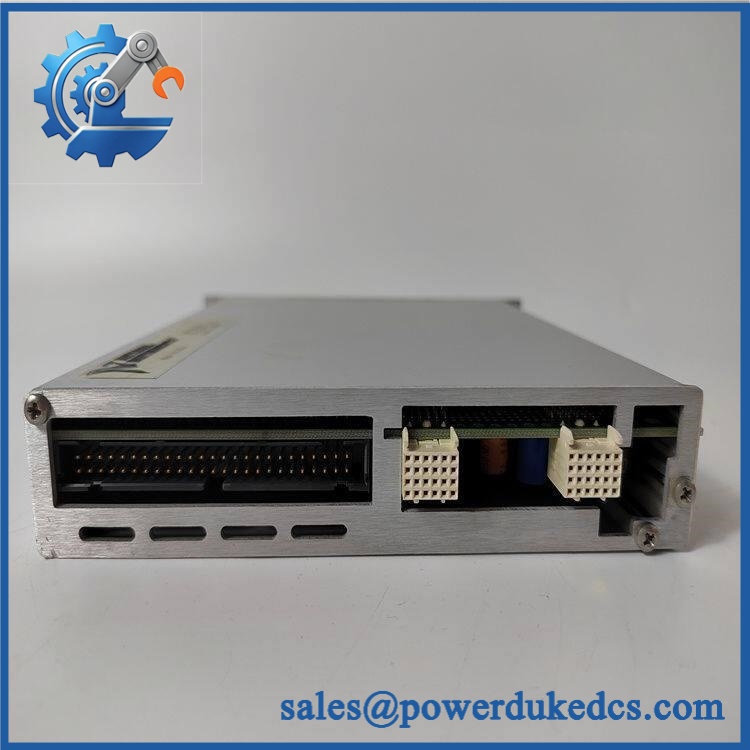

GE SW1-31 | Power Supply Card for GE DV-300 DC Drives

Description

• Brand: GE General Electric
• Full Model Number: SW1-31
• OEM Catalog Reference: 6KS5N03
• Lifecycle Status: Obsolete / legacy supply item; DV-300 equipment is documented as discontinued by current secondary-market sources
• Core Function: Power supply card for GE DV-300 DC drives
• Top 3 Technical Specs: DV-300 application | Power supply card | Used across multiple DV-300 voltage/current configurations in GE replacement-parts tables
• Associated Drive: GE DV-300 digital DC drive
• Condition: Physical unit condition and board revision verified against available inventory
• Stock & Shipping: Current physical stock subject to order confirmation | Emergency dispatch available according to quoted cutoff

Module 3: Obsolescence & Supply Chain Deep Dive

A failed SW1-31 can become a procurement problem well before it becomes an engineering problem. GE documentation identifies SW1-31 as the power supply card within the DV-300 replacement-parts structure, with catalog reference 6KS5N03. The card appears across several DV-300 configurations, including the 240/500 Vdc non-regenerative family and the 690 Vdc family. For a plant still operating a legacy DV-300, that distinction matters: replacing one board can preserve the existing drive architecture without turning a localized electronics failure into a full-drive replacement project. (Legacy board availability is inherently lot-dependent, so physical identification should precede the PO.)

From a TCO perspective, a board-level replacement keeps the existing motor, power section, control cabinet, field wiring, and established operating parameters in service. GE’s DV-300 literature describes the drive as a digital DC converter with separate regulation and power-related cards, which supports a targeted component replacement strategy rather than assuming a complete drive migration is necessary. The economic case becomes stronger when engineering labor, cabinet modifications, commissioning, parameter recreation, production validation, and scheduled downtime are included in the upgrade comparison. A replacement board does not eliminate those risks entirely; revision, connector condition, and the exact DV-300 configuration still require verification before installation.

Module 4: Compatibility & Replacement Matrix

GE’s documentation separately identifies as the power supply card and the R-TPD32-GE as the regulation card, so this should not be treated like a CPU or communication-module firmware replacement.

Field Traps — Watch Out

• Drive configuration mismatch: Confirm the complete DV-300 drive catalog number and voltage/current configuration before releasing the replacement. GE’s parts tables show across different DV-300 configurations, but the surrounding power hardware varies by drive size.
• Board identification and connector condition: Match the physical marking, catalog reference where available, connector arrangement, and board revision against the installed card. Do not approve the purchase from the text alone. GE’s manual provides a dedicated card drawing within the DV-300 replacement-parts section.
• DC bus safety: Treat the DV-300 power section as hazardous until the site’s lockout/tagout and discharge procedure confirms zero stored voltage. The replacement card does not remove the drive’s electrical isolation requirements.

GE SW1-31

Module 5: Quality Assurance & Testing SOP

Each available should pass a controlled board-identification and electrical inspection before shipment. The procedure begins with an OEM anti-counterfeit visual inspection: GE marking, identification, catalog-reference markings where present, PCB finish, component condition, connector integrity, solder joints, mounting hardware, and evidence of rework are checked against the physical unit. Serial or lot information is photographed for the shipment record. No board with unexplained corrosion, cracked components, lifted pads, burned areas, or connector damage proceeds to packing.

Electrical testing then follows a controlled sequence appropriate to the board and available DV-300 test setup. This includes resistance checks before energization, controlled power-on testing, verification of supply behavior under representative load, and inspection for abnormal temperature rise or audible switching faults. Where the installed DV-300 assembly provides ERR/RUN LED indications, those indicators are checked during the power-on self-test; the card itself should not be assumed to contain those indicators. A representative I/O load test is performed on the downstream control circuit where the test setup permits, confirming that the replacement power-supply path supports the connected control load. Test results, photographs, and final visual condition are retained with the shipment record.

Module 6: Procurement & Lifecycle FAQ

Is the GE genuinely in stock, and what is the emergency-shipping cutoff?
Stock should be confirmed against the physical board before the PO is released. Because is a legacy DV-300 component, availability can change by individual unit or lot. Emergency dispatch cutoff should be stated on the quotation for your destination rather than assumed as a fixed 24-hour promise.

How do you verify the condition and authenticity of an obsolete ?
The unit should be identified by its physical GE/ markings and compared with the documented DV-300 power-supply-card configuration. Visual inspection covers PCB condition, connectors, component damage, evidence of repair, and board identification; electrical testing is completed before shipment. GE’s documentation explicitly identifies as the DV-300 power supply card and associates it with catalog reference 6KS5N03.

Does require a firmware update?
is documented as a power supply card, while GE separately identifies the R-TPD32-GE as the regulation card. On that basis, a firmware flash is not normally the primary compatibility issue for itself. Engineers should still verify the installed DV-300 control/regulation hardware and configuration before commissioning.

What warranty and return terms apply?
Warranty coverage should be stated on the quotation or sales order according to the actual condition supplied. For an obsolete board, retain the original identification labels and do not modify, repair, or install the unit before completing incoming inspection if return eligibility depends on pre-installation condition.

Can be replaced without upgrading the complete DV-300 drive?
For a correctly matched , the documented architecture supports a board-level replacement approach. The final approval should verify the exact DV-300 drive model, board revision, connectors, surrounding power cards, and site electrical requirements before installation.
