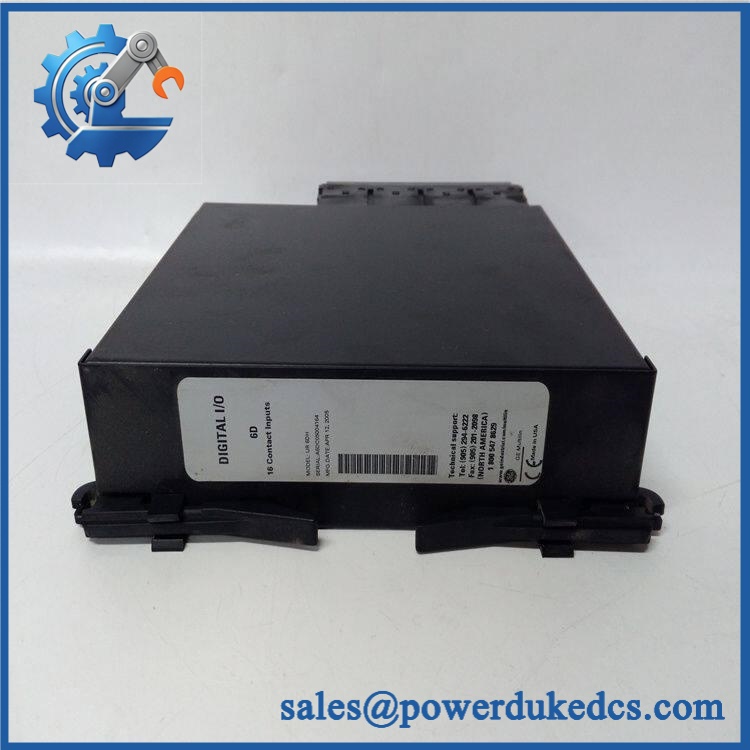

GE UR-6A-H | Digital I/O Module for Multilin UR Series

• Brand: GE Multilin
• Full Model Number: UR-6A-H
• System/Series Family: Multilin Universal Relay Series
• Core Function: Digital field signal input and relay output expansion
• Top 3 Hardcore Specs: 8 digital contact inputs; 2 Form-A outputs; 2 Form-C outputs
• Stock Status: Current lot condition and availability to be verified before PO

GE identifies the Universal Relay platform as a modular protection and control architecture with expandable I/O. The exact UR-6A-H is specified as a Multilin Universal Relay digital I/O module with eight digital inputs and four outputs configured as two Form-A plus two Form-C contacts.

Technical Product Introduction

A failed digital I/O section can leave the protection logic intact while breaking the physical interface to breakers, alarms, interlocks, or auxiliary equipment. The GE UR-6A-H addresses that interface requirement by providing 8 digital contact inputs and 4 relay outputs within the Multilin Universal Relay modular architecture. The output mix is important: 2 Form-A contacts and 2 Form-C contacts give the engineer both normally-open switching and changeover contact arrangements.

The useful number here is I/O density, not processor speed. Eight contact inputs plus four relay outputs can restore a failed I/O module without replacing the complete protection relay, provided the installed relay configuration accepts the same module type. In a maintenance shutdown, that distinction matters because the existing protection scheme, wiring philosophy, and commissioning records may remain substantially unchanged. The UR platform itself is built around modular CPU, measurement, communications, and I/O functions, so individual module replacement is consistent with its system architecture.

Application Scenarios & Field Realities

• Breaker control and status circuits: In medium- and high-voltage switchgear, several digital points may be needed just to confirm breaker position, trip status, spring charge, or permissive conditions. The UR-6A-H provides eight contact inputs for this type of discrete status collection, while its Form-A and Form-C contacts can interface with control and alarm circuits.
• Transformer or generator protection panels: When the main relay already handles protection calculations, the practical problem is often the number of hardwired field signals reaching the panel. Oil alarm contacts, lockout indications, auxiliary relay states, and breaker feedback are typical discrete signals. Keeping these points on the UR I/O architecture can avoid redesigning the entire protection panel.
• Industrial motor protection systems: A motor protection relay may need external indications from MCC contactors, interlocks, local/remote selectors, permissive circuits, and shutdown devices. The UR-6A-H is useful where those signals must be brought into the Universal Relay logic rather than handled through a separate discrete interface.
• Substation automation and interlocking: Where relay outputs are used as control or alarm interfaces, the distinction between Form-A and Form-C wiring becomes operationally significant. A technician replacing the module should reproduce the original contact philosophy exactly—especially on circuits tied to breaker trip, close permissive, or common alarm paths.

Migration, Compatibility & Installation Traps

Replacement Matrix

GE describes the UR family as a common modular platform with expandable I/O, which supports a module-level replacement approach. The critical point is not physical fit alone. The replacement must match the required I/O type: the UR-6A-H provides 8 digital inputs, 2 Form-A outputs, and 2 Form-C outputs. Substituting another UR I/O variant can change the available contact arrangement.

Field Traps — Watch Out

I/O mapping mismatch: Before removal, record the existing input labels, output assignments, and FlexLogic references. A physically correct module can still produce an incorrect control sequence if the engineering configuration does not correspond to the original point mapping.

Contact-type mismatch: Do not treat every UR digital output module as electrically equivalent. Form-A and Form-C contacts have different terminal behavior. Reproduce the original NO/changeover circuit exactly, then perform point-to-point verification before returning the relay to service.

Backplane handling: Isolate the protection and control equipment according to the site’s switching procedure before removing the module. Protect exposed connectors against ESD and inspect for bent contacts, contamination, or mechanical damage—small connector faults can create intermittent I/O symptoms that are difficult to diagnose later.

GE UR-6A-H

Quality Assurance SOP

For a surplus GE UR-6A-H, our pre-shipment procedure should focus on identity, physical condition, electrical behavior, and host-relay recognition rather than a superficial visual check.

• OEM anti-counterfeit visual inspection: Verify GE/Multilin labeling, model identification, nameplate details, connector construction, board markings, and manufacturing-label consistency against the expected UR-6A-H configuration.
• Mechanical inspection: Examine the housing, edge connectors, terminal interfaces, fasteners, and PCB areas for cracks, corrosion, contamination, bent contacts, or evidence of unauthorized rework.
• Power-on self-test (POST): Install the module in an appropriate UR host system and check the relay’s ERR/RUN LED behavior during startup. Record abnormal indications before proceeding.
• Module recognition check: Confirm that the host UR system recognizes the installed digital I/O configuration without module or configuration alarms.
• Communication handshake verification: Verify the internal backplane exchange between the host relay CPU and the I/O module, then confirm that expected digital states are correctly detected.
• Digital input test: Exercise the available contact inputs individually and confirm state transitions in the relay interface and logic.
• Output contact test: Command each Form-A and Form-C output under controlled test conditions and verify the expected contact state and terminal behavior.
• Final traceability check: Record model number, serial or identification data where available, inspection results, test date, and shipment condition in the QC record.

The UR-6A-H is specifically identified as a GE Multilin Universal Relay digital I/O module with 8 digital inputs and 4 contact outputs, while GE documentation describes the wider UR family as a modular platform with expandable I/O.
