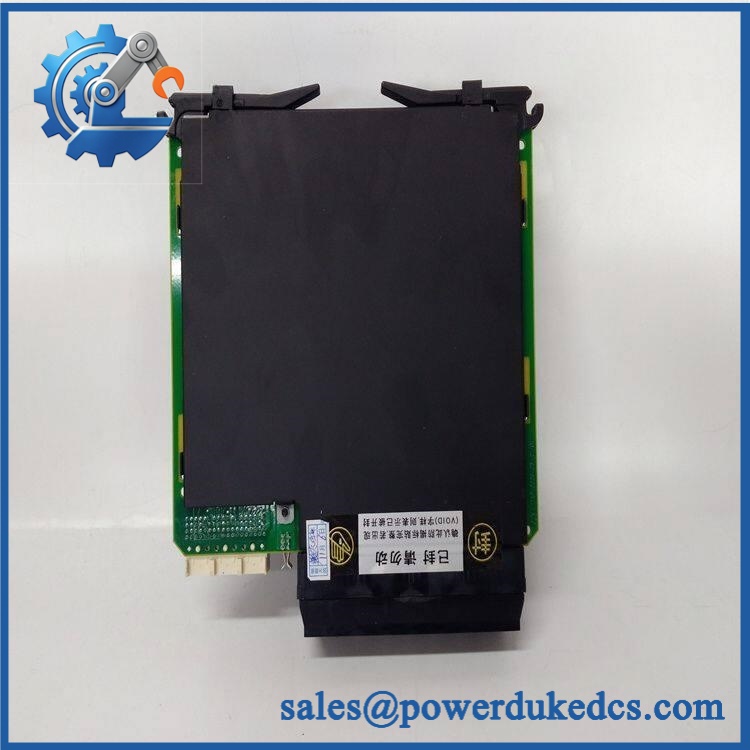

GE UR6AV | Digital I/O Module for Multilin Universal Relay

Description

• Brand: GE Multilin
• Full Model Number: UR6AV / UR-6AV
• System/Series Family: Multilin Universal Relay UR Series
• Core Function: Digital I/O expansion for configurable protection and control applications
• Top 3 Hardcore Specs: 8 digital inputs; 2 Form-A + 2 Form-C outputs; Form-A output activation under 4 ms
• Stock Status: New Surplus — stock confirmation required

The GE Multilin UR6AV is a digital I/O module within the modular Universal Relay platform. It adds eight digital inputs plus a mixed Form-A/Form-C output arrangement, allowing a compatible UR relay to interface with external breaker status, control circuits, alarms, interlocks, and other discrete field signals. GE describes the UR family as a modular protection and control platform with expandable I/O and programmable FlexLogic control.

Technical Product Introduction

A failed or unavailable I/O module can leave an otherwise serviceable protection relay unable to receive field status or issue required control commands. The UR6AV addresses that hardware-level I/O requirement by providing eight digital inputs together with two Form-A and two Form-C outputs. The Form-A outputs are intended for applications requiring fast operation, with published technical information specifying activation below 4 ms; output contacts are isolated from signal ground. FlexLogic provides the programmable logic layer used by the UR platform to associate digital signals with protection and control functions.

For maintenance teams, the key advantage is modular replacement rather than replacing an entire UR relay assembly. The UR platform supports configurable I/O and programmable automation, while the broader family supports interfaces such as RS232, RS485, Ethernet, Modbus, DNP 3.0, and IEC 61850 depending on the installed relay and communication module. The UR6AV itself should therefore be treated as an I/O hardware component, not as a standalone communications processor. Exact signal assignments depend on the host relay model, order code, firmware, and configured FlexLogic scheme — verify those parameters before installation.

Application Scenarios & Field Realities

• Breaker control circuits: Where a protection relay must monitor breaker auxiliary contacts while also issuing trip or control signals, the UR6AV’s mixed Form-A/Form-C architecture can accommodate different contact requirements without forcing the engineer into a single output-contact format. Confirm the existing wiring diagram before moving conductors.
• Substation interlocking: For switchgear interlocks, permissive signals, and equipment-status feedback, the eight digital inputs provide additional discrete acquisition capacity. Field technicians should verify the input circuit voltage and contact arrangement against the installed UR relay configuration rather than assuming every UR chassis uses identical I/O assignments.
• Industrial plant protection panels: In generator, transformer, feeder, or motor protection panels, discrete signals often include breaker position, trip circuit status, local/remote selection, lockout status, and alarm contacts. The UR family is designed for protection, control, monitoring, and automation applications across these equipment classes.
• Replacement of failed I/O hardware: When the protection logic and relay CPU remain operational but an I/O module has failed, replacing the corresponding module can reduce the scope of the intervention. The important check is the complete UR order code and module position, not simply the visual similarity of the replacement card.

Migration, Compatibility & Installation Traps

Replacement Matrix

Field Traps — Watch Out

Order-code mismatch: UR-series I/O modules are not interchangeable solely because they fit within the same general platform. The has a specific combination of eight digital inputs, Form-A outputs, and Form-C outputs. Compare the installed module designation and the complete relay order code before installation. Published technical information also distinguishes the from other I/O options in the same family.

FlexLogic configuration: Hardware replacement does not automatically guarantee identical application behavior. Save and document the existing relay configuration before removing the module, then verify every affected input, output, interlock, and trip/control equation after commissioning. A visually correct module can still produce an incorrect plant response if the configuration does not match.

Contact wiring: Form-A and Form-C contacts have different terminal arrangements. A Form-C circuit provides normally open, normally closed, and common contacts, whereas a Form-A circuit uses normally open and common terminals. Photograph and label existing conductors before removal, then perform point-to-point verification after installation.

GE UR6AV

Quality Assurance SOP

The should pass a documented inspection sequence before shipment:

• OEM anti-counterfeit visual inspection: Verify GE/Multilin markings, model designation, labels, connector condition, board construction, and visible manufacturing identifiers against known product references.
• Part-number verification: Confirm the module marking reads and reconcile the physical identification with the sales order.
• Mechanical inspection: Check connector pins, terminal interfaces, mounting hardware, PCB condition, and enclosure for deformation, corrosion, contamination, or impact damage.
• Digital I/O verification: Where the available test setup permits, verify the eight digital-input channels and the specified Form-A/Form-C output functions.
• Output response check: Test Form-A output operation against the documented module behavior; the published reference specifies activation below 4 ms for Form-A outputs.
• Power-on self-test (POST): On a compatible UR test assembly, check startup behavior and confirm expected ERR/RUN LED indications before release.
• Communication handshake verification: Where the module is tested within a complete UR relay, confirm that the host relay recognizes the installed I/O hardware and that the associated configuration operates correctly.
• Configuration verification: Review FlexLogic assignments and affected digital points after testing. Record abnormal indications rather than clearing them without investigation.
• Final inspection: Record model number, visible condition, test result, packaging condition, and serial/identification information before shipment.

Procurement note: is a modular I/O component for the GE Multilin Universal Relay platform. Exact compatibility should be confirmed against the host relay model, complete order code, firmware revision, existing I/O configuration, and field wiring before purchase. The UR family uses a common modular architecture, but individual I/O configurations are application-dependent.
