Description
- Brand: GE Multilin
- Full Model Number: UR6CH / UR-6CH
- System/Series Family: Multilin Universal Relay (UR) Series
- Core Function: Eight-channel Form-C relay output interface for auxiliary control, alarm, interlocking, and protection-related signaling
- Top 3 Hardcore Specs: 8 Form-C SPDT outputs | Common/NO/NC contact arrangement | Modular UR-series chassis installation
- Stock Status: New Surplus — stock status to be verified
GE identifies the UR platform as a modular protection and control architecture with expandable I/O and programmable configuration. Independent technical references identify the UR6CH specifically as an eight-channel Form-C digital output module.
Technical Product Introduction
A failed output module can leave a protection relay operating internally while the external breaker, alarm circuit, or interlock never receives the required command. The GE Multilin UR6CH addresses that interface point by providing eight Form-C relay outputs. Each channel uses a changeover arrangement with common, normally open, and normally closed contacts, giving the engineer three terminals for each output rather than a simple normally open contact. Within the UR architecture, that output logic is configured as part of the relay application and transferred to physical contacts for external equipment.
The practical advantage is wiring flexibility rather than an invented processing-speed gain. A Form-C channel can be wired for either NO or NC operation, which is useful for trip signaling, alarm annunciation, breaker commands, and interlocking circuits. GE’s UR family uses a common modular platform with configurable I/O, so replacing a failed UR6CH with the same I/O function can preserve the existing application architecture without redesigning the protection logic. Exact contact ratings, chassis position, and relay configuration should still be checked against the applicable GE documentation before energization.
Application Scenarios & Field Realities
- At a substation feeder panel, the UR6CH can take a programmed protection or control condition and present it as a physical Form-C contact for breaker control or status-related circuitry. Before replacement, record the common, NO, and NC wiring for every channel; one reversed contact can change the expected fail-state behavior.
- For transformer protection schemes, several output points may be assigned to trip, alarm, lockout, or auxiliary interlocking functions. The eight-channel configuration gives the UR relay a compact way to expose multiple discrete control states without adding a separate bank of external interface relays. Field commissioning should test each assigned channel individually.
- Where an alarm circuit requires a defined inactive-state contact, Form-C construction is particularly useful because the external circuit can use the NC contact rather than relying on software logic alone. That distinction matters in annunciator and interlock circuits where the de-energized state has operational significance.
- During an emergency spare replacement, the real concern is not whether the card physically fits. It is whether the replacement has the same I/O function, module designation, and host-relay configuration. GE’s UR architecture supports multiple I/O module types, so visual similarity is not sufficient evidence of interchangeability.
Migration, Compatibility & Installation Traps
Replacement Matrix: Software Compatible — when replacing an existing UR6CH with the same I/O function in a compatible GE Multilin UR chassis, the existing protection application can generally remain in place. No application redesign should be assumed merely because the replacement is physically similar; verify the complete relay configuration, module position, output assignments, and applicable firmware/documentation before returning the system to service.
Field Traps — Watch Out:
- Form-C terminal reversal: Every channel has common, NO, and NC contacts. Photograph and document the original wiring before removal. Do not treat a Form-C output as a two-terminal Form-A contact without checking the actual circuit drawing.
- Wrong module configuration: UR-family I/O modules are not interchangeable simply because they share the same physical platform. Confirm that the host relay’s configured I/O designation calls for the 6CH function before installation. After insertion, verify output assignments through the relay’s configuration and diagnostics.
For energized protection equipment, follow the site’s isolation, switching, and electrical-safety procedures. Although the UR platform was designed around modular I/O access, maintenance practice should follow the specific relay manual and site procedure rather than assuming every installation permits live replacement.

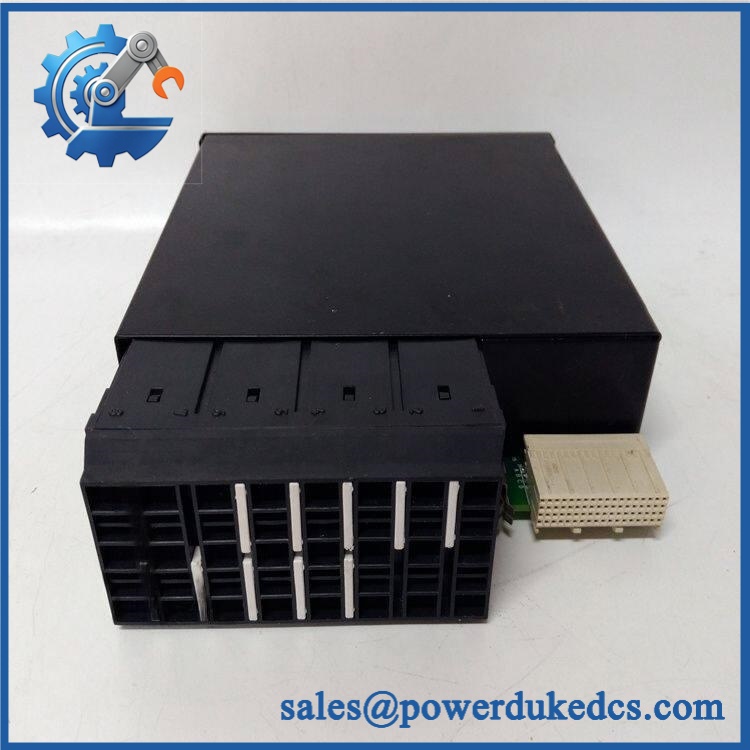

GE UR6CH
Quality Assurance SOP
Incoming Identification
- Record model marking:
- Check nameplate condition, labels, connector integrity, mounting hardware, and PCB condition
- Compare mechanical and electrical identifiers against the purchasing specification
- Perform OEM anti-counterfeit visual inspection, including labeling quality, part-number consistency, connector construction, and visible board workmanship
Electrical Pre-Shipment Test
- Perform visual inspection under controlled bench lighting
- Check connector and terminal continuity where applicable
- Inspect relay contacts for abnormal resistance or mechanical damage
- Verify each of the eight Form-C output channels independently
- Confirm common-to-NO and common-to-NC contact behavior against the expected relay state
Power-Up Verification
- Install the module in an appropriate test configuration
- Perform a controlled power-on self-test on the associated UR relay
- Check RUN/ERR status indications on the host relay and review diagnostic status
- Confirm that no unexpected module or configuration fault is reported
- Use EnerVista UR tools where applicable to verify the installed hardware and configured output functions
Functional and Communication Checks
- Trigger each programmed test condition individually
- Verify the corresponding output changes state as expected
- Perform a communication handshake between the host relay and engineering/configuration interface
- Confirm that output state, configuration data, and diagnostic information remain stable during repeated operations
- Record test results, serial/identification information, and final inspection status before packing
Release Criteria
- Correct model identification
- No visible mechanical or connector damage
- All eight output channels pass functional checks
- Host relay diagnostics show expected status
- Configuration and communication verification completed
- Test record retained with the shipment documentation
The ‘s defining function is its eight Form-C output architecture within the GE Multilin UR modular system; testing should therefore concentrate on channel-by-channel contact behavior and host-relay integration rather than relying only on a successful power-up.
