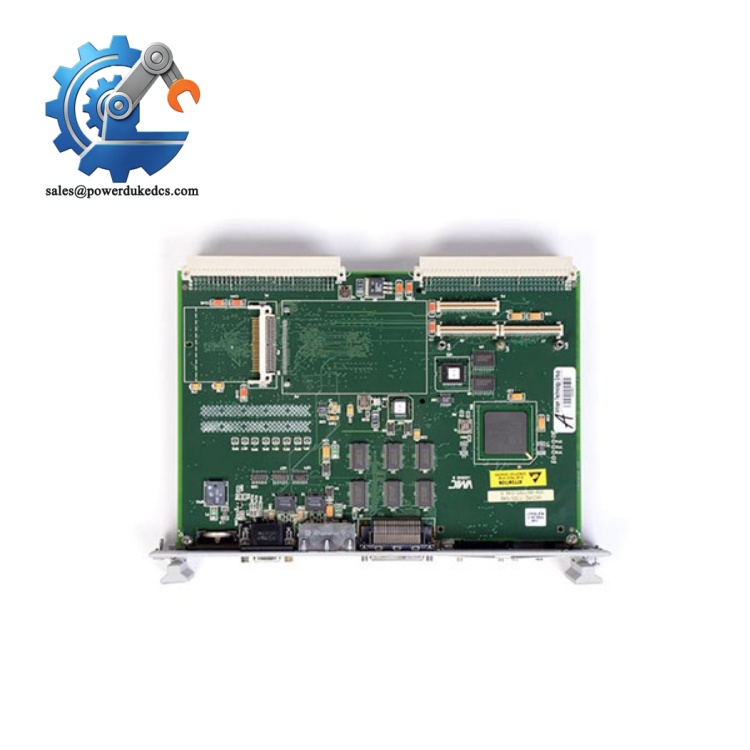

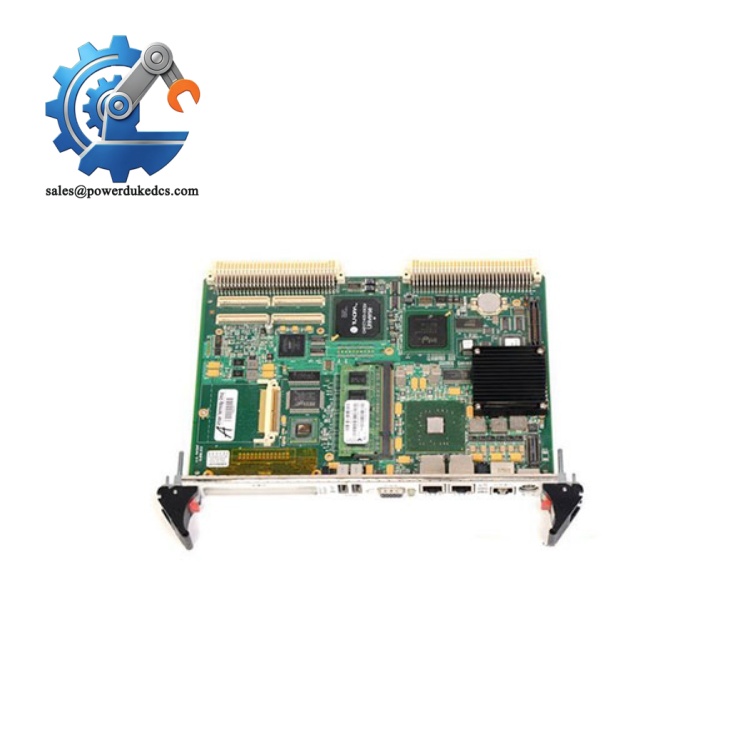

GE VMIVME2540-300 | Traceable Legacy Control Module

2. Unboxing & Physical Snapshot

Brand & Model: GE / VMIC VMIVME2540-300
Product Type: VME Intelligent Counter/Controller Module for industrial and embedded control applications. The VMIVME-2540 family is documented as a 24-channel VME counter/controller with RS-422 and TTL interfaces.
Physical Dimensions (W × H × D): Approximately 160 × 233 × 20 mm (6.3 × 9.2 × 0.8 in.) for a standard 6U VME board format.
Estimated Shipping Weight: Approximately 0.5–1.0 kg including ESD packaging and protective inserts.
What’s in the Box:
- GE VMIVME2540-300 VME controller module
- Front panel assembly with status indicators and connectors
- VME P1/P2 edge connectors
- Mounting screws and card ejectors (if supplied)
- Anti-static ESD shielding bag
- OEM documentation when available

3. Product Introduction

Structure B — Architecture Hook

The GE VMIVME2540-300 installs directly into a compatible VME chassis, where the backplane provides power, address/data communication, and system coordination. The module occupies a standard 6U VME slot and depends on precise connector engagement between the card edge contacts and the rack backplane (a small alignment issue can interrupt field signal acquisition).

This controller module is intended for deterministic industrial measurement tasks such as event counting, frequency measurement, pulse generation, and signal interfacing. The hardware includes dedicated processing resources rather than relying entirely on the host controller, which reduces loading on the main VME processor during repetitive measurement operations. Inspect the front-panel connectors, ejector handles, and VME contact fingers before placing the spare into service.

4. Core Technical Specifications

Parameter	Value
Manufacturer	GE / VMIC
Model Number	VMIVME2540-300
Product Type	Intelligent Counter/Controller VME Module
Form Factor	6U VME
Bus Interface	VMEbus
Input/Output Channels	24 channels
Processor	68HC000-class onboard controller (family dependent)
Counter Capacity	Up to 4 giga-events
Frequency Measurement Range	Approximately 1.16 × 10⁻³ Hz to 2.5 MHz
Pulse Generation Range	Approximately 0.0076 Hz to 2.5 MHz
Interfaces	RS-422 differential and TTL-compatible I/O
Data Transfer Width	8/16/24/32-bit
VME Address Modes	A24/A32 support (implementation dependent)
Power Input	VME backplane +5 VDC and auxiliary rails
Power Consumption	Verify exact revision datasheet
Cooling Method	Forced-air chassis cooling
Memory	Configuration dependent onboard memory resources

GE VMIVME2540-300

Technical values are based on VMIVME-2540 family documentation. Confirm exact revision before replacing an installed module.

5. ? Global Compliance & Industry Certifications

Expected regulatory considerations for this industrial VME module include:

CE Mark — applicable for qualified configurations meeting EMC and safety requirements.
UL/cUL Recognition — may apply depending on system installation and hardware revision.
RoHS Compliance — depends on manufacturing date and production revision.
IEC industrial EMC requirements — typically evaluated as part of the installed equipment system.
ATEX/IECEx — not normally a direct module certification; hazardous-area approval depends on the complete enclosure and installation method.
Marine approvals (DNV GL) — applicable only for specifically certified applications.

For industrial control cabinets, CE and UL evaluations help demonstrate that electrical emissions, insulation spacing, and safety requirements have been addressed. A non-certified replacement card can create documentation gaps during plant audits.

Verify specific lot certifications with OEM.

6. ? Long-Term Storage & Asset Preservation Guide

Keep the VMIVME2540-300 sealed inside its original anti-static (ESD) shielding bag. The VME connector fingers are exposed precision contacts; contamination or oxidation can create intermittent communication failures after installation.

Store the module in a humidity-controlled area below 60% RH. Avoid storage near corrosive chemicals, salt-air environments, or battery charging areas because connector plating and PCB surfaces can degrade over time.

Before energizing a long-stored card, inspect the front panel, PCB surface, solder joints, and connector pins. Perform a controlled bench verification first. Do not install an unknown-condition spare directly into a running production VME rack.

7. Physical Installation Prerequisites

Install only in a compatible 6U VME chassis with the correct backplane configuration.
Confirm slot assignment requirements before insertion.
Maintain sufficient rack airflow; leave approximately 50 mm or more clearance around ventilation paths where cabinet design permits.
Ensure card guides fully support the PCB before engaging ejector handles.
Verify protective earth continuity between chassis frame and cabinet grounding system.
Inspect VME P1/P2 connectors for contamination or bent contacts.
Secure front-panel retaining screws to prevent vibration movement.

Avoid forcing insertion. The VME connector assembly can be damaged by uneven mechanical pressure.

GE VMIVME2540-300

8. Buyer’s FAQ (Logistics & Compliance Focus)

Q1. What HS Tariff Code is typically used for the GE VMIVME2540-300?

A: The final Harmonized System classification depends on the module’s declared function and importing country rules. VME control modules are often reviewed under electronic control equipment categories, but the customs broker should confirm the final HS code before export.

Q2. Does Country of Origin affect this spare module’s import process?

A: Yes. COO affects duty calculations, trade agreement eligibility, and procurement traceability. Maintain original labels, serial numbers, supplier declarations, and inspection records with the asset history.

Q3. Should this VME module ship with insurance coverage?

A: Recommended. The board is lightweight, but impact damage can affect the edge connector, solder joints, or front-panel assemblies. Use ESD protection, shock-resistant packaging, and replacement-value freight insurance.

Q4. Does the VMIVME2540-300 include the latest firmware pre-loaded?

A: Firmware availability depends on the exact hardware revision and inventory history. The module may contain onboard firmware or programmable logic that should be verified against the approved system configuration before installation. Document the revision level during incoming inspection.
