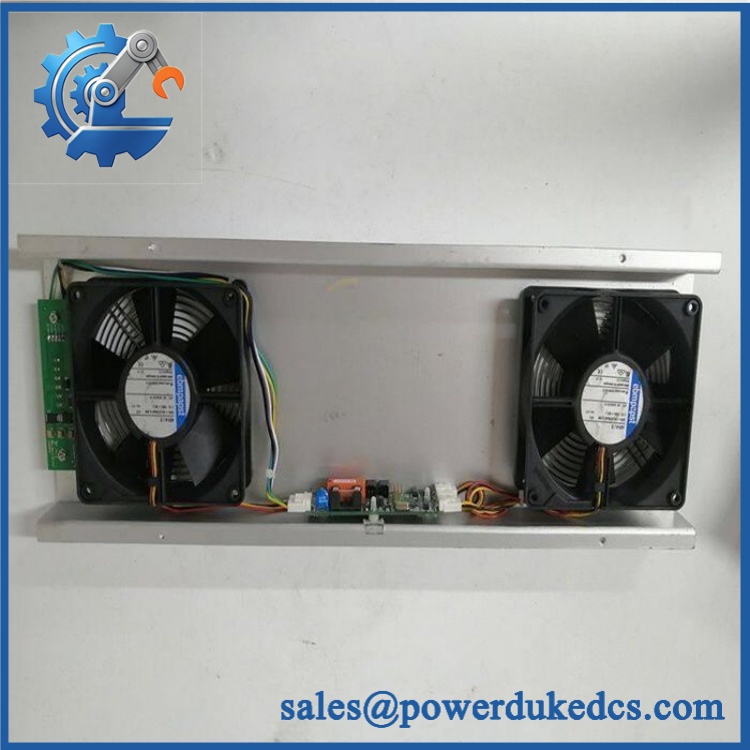

1. HIMA K9203A 996920360 | H41q H51q Rack Accessory

2. At-A-Glance Executive Brief

• Model: HIMA K9203A
• Part Number: 996920360
• Series: HIMA HIQuad / H41q / H51q Safety Control System
• Part Type: Rack Cooling Fan Module
• Core Function: Provides forced ventilation for HIMA safety control racks, maintaining acceptable thermal conditions for CPU, I/O, and system modules.
• Key Specifications:
  • Three axial fan assembly.
  • Redundant power supply design.
  • Fan and voltage monitoring capability.
  • Designed for 19-inch safety controller racks.
  • Used in SIL-rated industrial safety systems.
• Typical Procurement Category: Safety PLC spare, rack accessory, HIMA legacy system maintenance component.

3. Product Introduction

Inside a HIMA safety controller cabinet, the K9203A 996920360 rack fan module maintains airflow through the 19-inch rack assembly where safety CPUs, I/O modules, and communication components operate. A cooling failure can increase internal cabinet temperature and accelerate electronic aging. In field deployments, maintenance teams usually treat fan modules as preventive replacement items because airflow degradation may occur before a complete fan stop is detected (especially in continuously operating process plants).

The K9203A is designed as a rack ventilation accessory for HIMA safety systems, including HIQuad-based architectures. The module uses three axial fans with monitoring functions and redundant supply arrangements intended for safety-related control environments. Proper identification is important during lifecycle support because older HIMA systems often remain in service for decades.

4. Core Technical Specifications

Parameter	Value
Manufacturer	HIMA Paul Hildebrandt GmbH
Model Number	K9203A
Order Number	996920360
Product Type	Rack Fan Module
System Compatibility	HIMA HIQuad / H41q / H51q systems
Fan Configuration	3 axial fans
Supply Voltage	24 VDC system supply
Power Supply Design	Redundant supply monitoring
Monitoring Functions	Fan status and voltage monitoring
Installation Type	19-inch rack mounting
Rack Function	Forced ventilation / thermal management
Safety System Use	Safety-related control applications
Operating Temperature	Approx. -20°C to +60°C (system dependent)
Mounting Environment	Industrial control cabinet
Protection Concept	Internal rack cooling accessory

HIMA K9203A 996920360

5. Application Scenarios & Pain Points

At a chemical processing facility, a failed rack fan can increase cabinet temperature and create unexpected safety controller alarms during continuous operation.

For offshore platforms, the K9203A supports ventilation inside compact automation cabinets where humidity, vibration, and limited cabinet space create additional maintenance concerns.

In power generation plants, operators often maintain spare fan modules because a cooling interruption can affect safety system availability even when the controller electronics remain functional.

Without active rack ventilation, internal temperature may rise beyond the preferred operating range, reducing the service life of CPUs, power modules, and I/O assemblies.

With a tested replacement fan module, maintenance teams can restore cabinet airflow without modifying the installed safety system architecture.

6. Common Error Codes & Diagnostic Symptoms

Symptom/Code: Rack temperature increase / ventilation alarm
→ Diagnosis: One or more axial fans may have reduced speed, stopped operation, or lost supply power.
→ Action: Inspect fan operation and replace the K9203A module if airflow is insufficient.

Symptom/Code: Fan monitoring fault / voltage monitoring alarm
→ Diagnosis: Possible internal monitoring circuit fault, failed fan motor, or supply input problem.
→ Action: Verify 24VDC supply and replace the rack fan module.

Symptom/Code: Increased cabinet noise or abnormal fan vibration
→ Diagnosis: Bearing wear or mechanical degradation inside the axial fan assembly.
→ Action: Replace the module before complete cooling failure occurs.

7. Cross-Reference & Lifecycle Migration

• Compatible Systems:
  • HIMA HIQuad H41X/H51X systems.
  • HIMA safety-related 19-inch rack assemblies.
• Replacement Consideration:
  • Verify rack type.
  • Confirm 24VDC supply arrangement.
  • Check mounting compatibility.
  • Confirm monitoring wiring requirements.
• Firmware Requirement:
  No user firmware flashing is normally required because the K9203A is a rack accessory rather than a programmable CPU or I/O processor.
• Lifecycle Status: Legacy / Limited Availability.
  • Existing HIMA installations should maintain controlled spare stock.
  • Record rack configuration and installed safety system documentation with stored units.

8. Field Engineer’s Tech Notes (Anti-Pitfall Guide)

1. Do not replace the fan module without checking cabinet airflow direction.
   Incorrect installation orientation can reduce cooling efficiency even when the fans are running.
2. Verify the 24VDC supply before replacing hardware.
   A missing supply feed can appear as multiple fan failures (especially in older safety racks with aging power distribution components).
3. Avoid touching internal fan assemblies without ESD precautions.
   The module sits close to safety-related electronics where accidental discharge can affect nearby hardware.

9. Strict QA & Testing SOP

Step 1 — Incoming Inspection

• Verify HIMA label and part number.
• Confirm K9203A / 996920360 identification.
• Record serial number and revision.
• Inspect fan blades, housing, and connectors.

Step 2 — Mechanical Check

• Rotate fan assemblies manually.
• Check for abnormal resistance or bearing noise.
• Inspect mounting brackets.

Step 3 — Electrical Verification

• Apply controlled 24VDC supply.
• Confirm fan startup.
• Verify monitoring outputs where applicable.
• Check current consumption.

Step 4 — Functional Testing

• Install into compatible HIMA rack environment.
• Verify airflow.
• Confirm diagnostic status.
• Record operating results.

Step 5 — Packaging

• Use anti-static protection.
• Add shock protection around fan assemblies.
• Include inspection documentation.

Test videos are available for verification procedures when required.

10. Buyer’s FAQ (Dynamic Q&A)

Q: Can the HIMA K9203A be replaced while the safety controller remains powered?

A: Do not assume hot replacement is supported. Safety system maintenance procedures should be followed, and power isolation is normally required before rack accessory replacement.

Q: How can I verify a genuine HIMA K9203A 996920360 unit?

A: Confirm the HIMA label, order number, hardware markings, physical condition, and supplier inspection records. Safety system accessories require clear traceability.

Q: Does the K9203A contain system firmware?

A: No. The K9203A is a rack ventilation module. It does not store the safety application program or controller firmware.

Q: What warranty information should be requested before purchase?

A: Request functional test records, inspection photos, packaging details, and warranty coverage terms. For legacy safety hardware, documented testing is important before installation.

Procurement Note: The HIMA K9203A 996920360 should be managed as a safety-system support spare. Store it with rack drawings, system model information, and maintenance history to reduce troubleshooting time during planned or emergency interventions.
