Description
- ICS Triplex 9100 | OEM Safety System Hardware Asset
2. Unboxing & Physical Snapshot

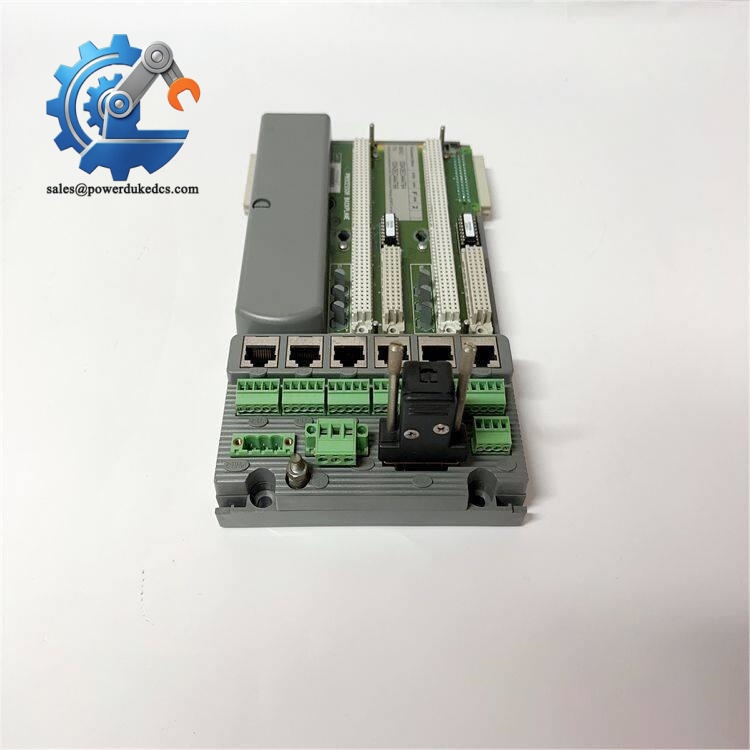

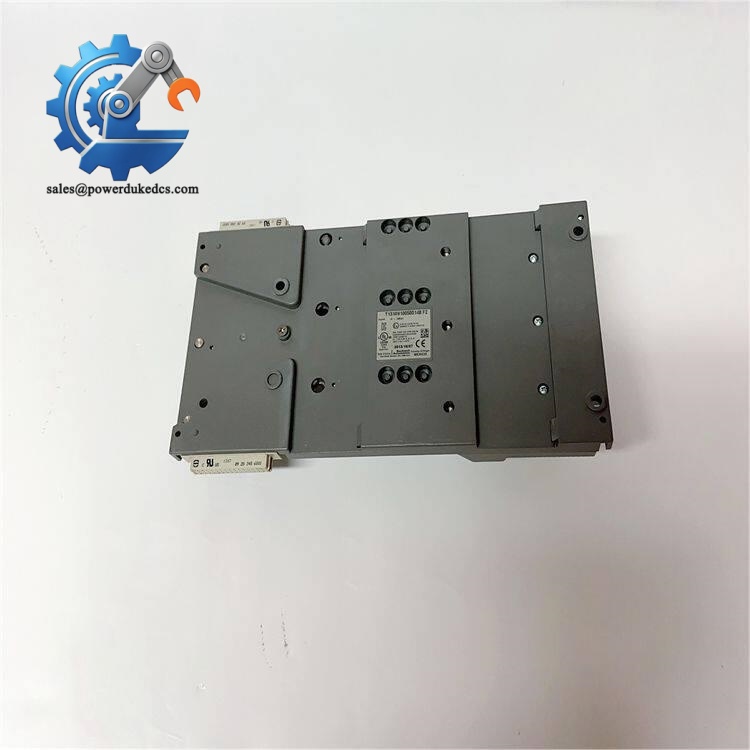

- Model & Brand: ICS Triplex 9100 Series Trusted/AADvance safety controller platform. The 9100 family represents a high-integrity programmable safety system using Triple Modular Redundant (TMR) processing concepts for critical industrial applications.
- Approximate Physical Dimensions (W × H × D): Approximately 152 × 152 × 178 mm (6.0 × 6.0 × 7.0 in.) for the processor base assembly format. Dimensions vary depending on whether the shipment contains the processor module, base unit, or complete controller assembly.
- Estimated Shipping Weight: Approximately 1.8 kg (4.0 lb) for a processor base unit configuration, excluding larger rack assemblies.
- What’s in the Box:
- ICS Triplex 9100 series controller hardware (configuration dependent)
- Processor base unit or processor assembly
- Front panel components
- Mounting hardware when supplied
- Anti-static (ESD) shielding packaging
- Protective foam inserts
- Documentation when available
3. Product Introduction
The ICS Triplex 9100 system mounts as part of a dedicated safety controller architecture where processor modules, I/O bases, and field termination assemblies connect through the controller backplane structure. Verify the installed hardware arrangement before replacement. The processor base, retaining clamps, and electrical interfaces must align correctly (which is critical during SIL-rated maintenance activities).
Designed for high-integrity process applications, the 9100 platform uses redundant processing methods to maintain operation during certain hardware faults. The architecture supports applications such as emergency shutdown systems, burner management, and critical process protection where deterministic response and fault diagnostics are required. Inspect processor sockets, connector surfaces, cabinet wiring, and stored firmware records before returning legacy hardware to operation.
4. Core Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | ICS Triplex |
| Product Family | 9100 Safety Controller Series |
| Product Type | TMR Safety Controller Platform |
| Safety Architecture | Triple Modular Redundant (TMR) |
| Processor Configuration | Single, dual, or triple processor arrangements depending on system design |
| Safety Integrity Level | Up to SIL 3 system capability |
| Processor Base Supply | 24 VDC nominal |
| Supply Range | 18–32 VDC |
| Communication Method | Controller backplane / system bus |
| Memory Type | Processor-dependent flash, SRAM, SDRAM resources |
| I/O Capacity | System configuration dependent |
| Diagnostics | Hardware fault monitoring and voting diagnostics |
| Programming Environment | TPLEX / system engineering tools |
| Mounting Method | Rack or base-unit mounting |
| Cooling Method | Cabinet airflow and convection |
| Typical Power Dissipation | Configuration dependent |
| Operating Temperature | 0°C to +60°C class |
| Storage Temperature | -25°C to +70°C class |
| Relative Humidity | 10–95% RH, non-condensing |
ICS Triplex 9100
5. Global Compliance & Industry Certifications
Expected regulatory approvals and compliance considerations for the ICS Triplex 9100 platform include:
- CE Mark compliance for applicable installed systems
- IEC 61508 SIL 3 capability when configured as part of a validated safety architecture
- UL/cUL Listed status where applicable to the complete controller assembly
- ATEX/IECEx suitability only when installed within approved hazardous-area equipment
- Marine approvals such as DNV GL for specifically certified offshore configurations
- Industrial EMC compliance according to the complete cabinet installation
IEC 61508 certification is important because it evaluates the ability of the safety system to detect faults and maintain the required risk reduction level. The certification applies to the validated architecture, including processors, I/O modules, software, and installation practices.
Verify specific lot certifications with OEM.
6. Long-Term Storage & Asset Preservation Guide
Keep 9100 series processor hardware inside the original anti-static (ESD) shielding bag during storage. The processor connectors and backplane contacts should remain protected from dust and oxidation.
Maintain warehouse humidity below 60% RH. Long storage periods can affect connector surfaces, memory retention components, and PCB protective coatings if environmental conditions are uncontrolled.
Before installation, inspect the processor socket area, retaining hardware, PCB surfaces, and identification labels. Record serial numbers, hardware revisions, firmware versions, and previous operating history before releasing the spare.
7. Physical Installation Prerequisites
- Install only within the approved ICS Triplex 9100 system architecture.
- Confirm processor base and module compatibility before insertion.
- Verify redundant 24 VDC power supply arrangement where required.
- Ensure protective earth grounding is correctly bonded.
- Maintain cabinet airflow for processor heat removal.
- Leave at least 50 mm clearance above and below rack ventilation areas where practical.
- Inspect backplane connectors for contamination or mechanical damage.
- Confirm module retention hardware is fully engaged before energization.
ICS Triplex 9100
8. Buyer’s FAQ (Logistics & Compliance Focus)
Q: What HS Tariff Code is commonly used for the ICS Triplex 9100?
A: Industrial safety controller hardware is commonly evaluated under HS 8537 classifications for electrical control equipment. The exact tariff code depends on whether the shipment is declared as a processor, controller assembly, or complete control system.
Q: Does Country of Origin affect importing the ICS Triplex 9100?
A: Yes. COO affects customs clearance, duty assessment, supplier records, and lifecycle traceability. Confirm origin using the equipment label, commercial invoice, and supplier documentation.
Q: Is shipping insurance recommended for a 9100 series controller?
A: Recommended. Legacy safety controller hardware often has long replacement lead times. Use ESD protection, shock-resistant packaging, moisture control, and receiving inspection records.
Q: Does the ICS Triplex 9100 include the latest firmware pre-loaded?
A: Firmware availability depends on the specific processor module and revision. The hardware may contain installed system firmware, but the version must be verified against the existing safety application before commissioning.
