- ICS Triplex T8431 | Authentic Trusted SIS Hardware
Unboxing & Physical Snapshot

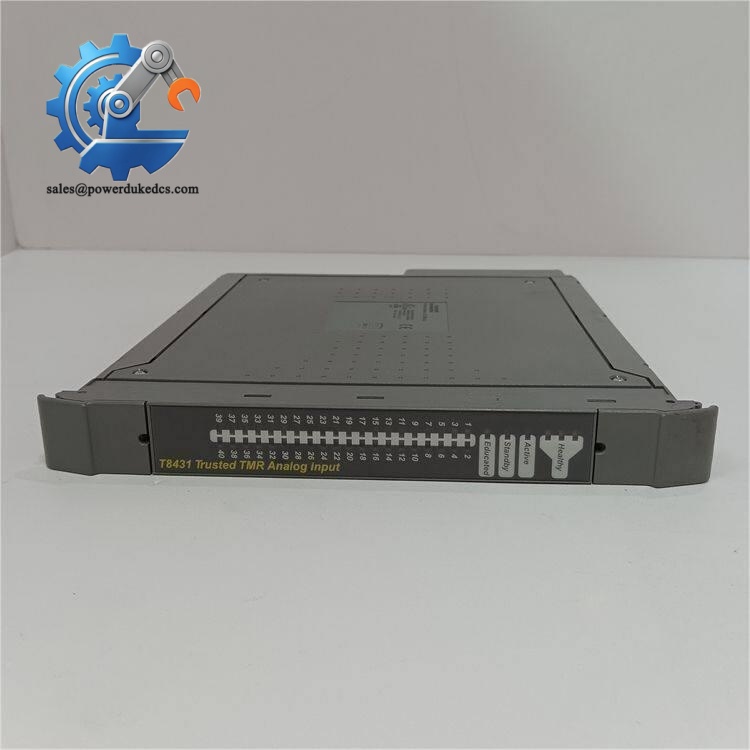

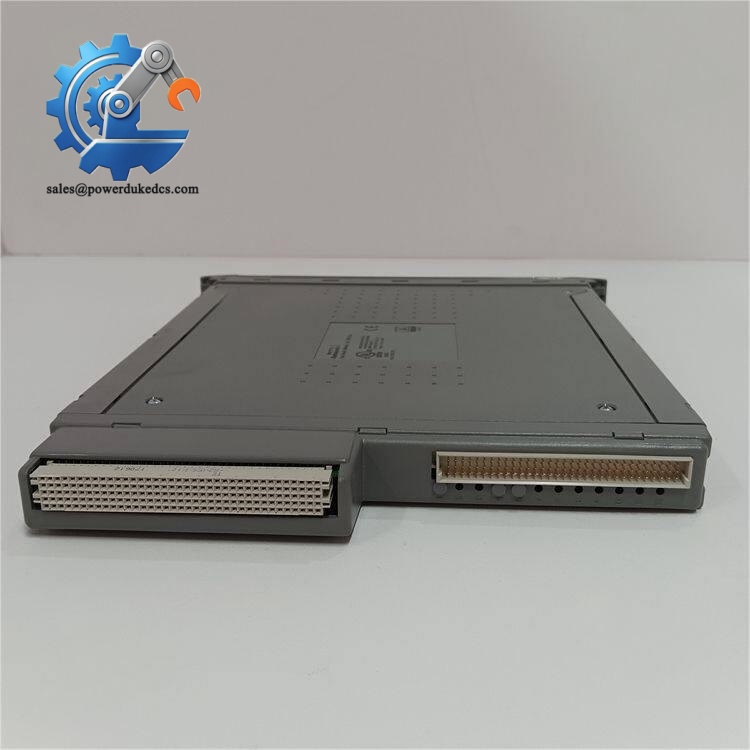

- Model & Brand: ICS Triplex T8431
- Product Type: Trusted™ TMR 24Vdc Analog Input Module for safety instrumented systems. The T8431 provides 40 analog input channels with triple modular redundant measurement paths for high-integrity process monitoring applications.
- Approximate Physical Dimensions (W × H × D):
- Approximately 31 × 266 × 303 mm
- Designed for installation in the ICS Triplex Trusted T8000/T8100/T8300 I/O rack system.
- Estimated Shipping Weight: Approximately 1.15 kg module weight; packaged shipping weight is typically around 2 kg depending on protection materials.
- What’s in the Box:
- ICS Triplex T8431 Trusted TMR Analog Input Module
- Front connector assembly (if supplied)
- Module identification label
- Anti-static (ESD) shielding bag
- Protective foam packaging
- Original documentation when available
Product Introduction
The ICS Triplex T8431 installs into the Trusted TMR controller rack and connects field analog signals into the safety control architecture. Its physical purpose is precise: acquire process measurements while maintaining triple-channel diagnostics and fault detection across critical safety loops (which is essential in emergency shutdown and process protection systems).
This module is maintained as a controlled safety spare rather than a standard PLC replacement part. Channel configuration, rack position, firmware compatibility, and proof-test records must match the approved SIS documentation before installation. The T8431 supports 40 input channels, configurable thresholds, line monitoring options, and internal diagnostic functions designed for safety-related applications. Check the module revision before commissioning.
Core Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | ICS Triplex |
| Model | |
| Product Family | Trusted™ T8000 Series |
| Module Type | TMR 24Vdc Analog Input Module |
| Input Channels | 40 channels |
| Input Current Range | 0-22 mA |
| Input Voltage Range | 0-6 Vdc |
| System Supply Voltage | 20-32 Vdc |
| Triple Modular Redundancy | Three independent measurement paths |
| Sample Update Time | Approximately 0.5 ms |
| Resolution | 3.9 µA (1/256 mA) |
| Safety Accuracy | ±1% of full scale |
| Calibration Accuracy | Approximately 0.03% |
| Field Common Isolation | ±250 Vdc sustained |
| Maximum Isolation Withstand | ±2.5 kVdc |
| Self-Test Interval | Approximately 2 minutes |
| Sequence of Events Resolution | 1 ms |
| Power Consumption | Approximately 15-20 W |
| Maximum Power Dissipation | Approximately 20 W |
| Mounting Location | Trusted T8100/T8300 I/O module slot |
| Operating Temperature | 0°C to +60°C |
| Storage Temperature | -25°C to +70°C |
| Relative Humidity | 10-95% RH non-condensing |
| Cooling Method | Cabinet forced convection cooling |
ICS Triplex T8431
? Global Compliance & Industry Certifications
Expected regulatory considerations for the ICS Triplex include:
- CE Mark: Applicable within the certified Trusted system installation for EMC and electrical safety compliance.
- IEC 61508 Functional Safety: The Trusted platform is designed for safety instrumented applications requiring high-integrity operation. Verify certification scope for the exact hardware revision.
- IEC 61511 Compatibility: Commonly applied in process safety environments where SIS lifecycle management is required.
- UL/cUL Recognition: May apply depending on the complete installed system configuration.
- ATEX / IECEx: The is not a standalone hazardous-area certified field device. Hazardous-area installations require approved barriers, field devices, and complete system certification.
- Marine Approvals (DNV GL): Applicable only when integrated into approved marine control systems.
For safety inventory management, retain serial number, hardware revision, firmware information, application configuration, and proof-test history. Missing records can create serious audit findings.
Verify specific lot certifications with OEM.
? Long-Term Storage & Asset Preservation Guide
Keep the ICS Triplex inside its original anti-static shielding bag during storage. The backplane connector contacts and internal electronic assemblies require protection from electrostatic discharge and contamination.
Maintain warehouse humidity below 60% RH. Avoid condensation cycles because moisture can degrade connector surfaces and create intermittent communication faults.
Inspect stored safety modules every 12-24 months. Check the connector pins, retaining clips, identification labels, PCB condition, and packaging integrity. Before installation into an operational SIS rack, perform a controlled inspection and verify the module revision matches the approved spare database.
Physical Installation Prerequisites
- Install the only in the approved ICS Triplex Trusted T8000/T8100/T8300 rack system.
- Confirm the correct I/O slot assignment before insertion.
- Verify field wiring matches approved loop drawings.
- Ensure the module connector is fully seated.
- Maintain cabinet airflow for convection cooling.
- Leave adequate clearance around rack assemblies to prevent localized heat buildup.
- Confirm cabinet grounding and protective earth bonding.
- Verify 24 Vdc supply quality before energizing.
- Confirm external barriers or isolators where required for hazardous-area circuits.
- Complete required SIS validation testing after replacement.
ICS Triplex T8431
Buyer’s FAQ (Logistics & Compliance Focus)
Q: What HS Tariff Code is commonly used for an ICS Triplex shipment?
A: Safety I/O modules are commonly reviewed under electronic control equipment classifications, often within HS 8538 or related industrial control component categories. Final classification depends on customs interpretation, declared function, and importing country requirements.
Q: Does Country of Origin (COO) documentation matter for the ?
A: Yes. COO records support customs clearance, safety asset traceability, and maintenance documentation. Verify the actual country marking on the module label and shipping paperwork for each unit.
Q: Should the ship with insurance coverage?
A: Recommended. Safety modules contain precision backplane connectors and calibrated analog measurement circuitry. Impact, vibration, or moisture exposure may create faults that appear only during commissioning.
Q: Does the ICS Triplex include the latest firmware pre-loaded?
A: The module contains internal firmware storage, but the installed revision depends on manufacturing history and previous service records. Confirm firmware compatibility, hardware revision, and Trusted system configuration before replacement.
