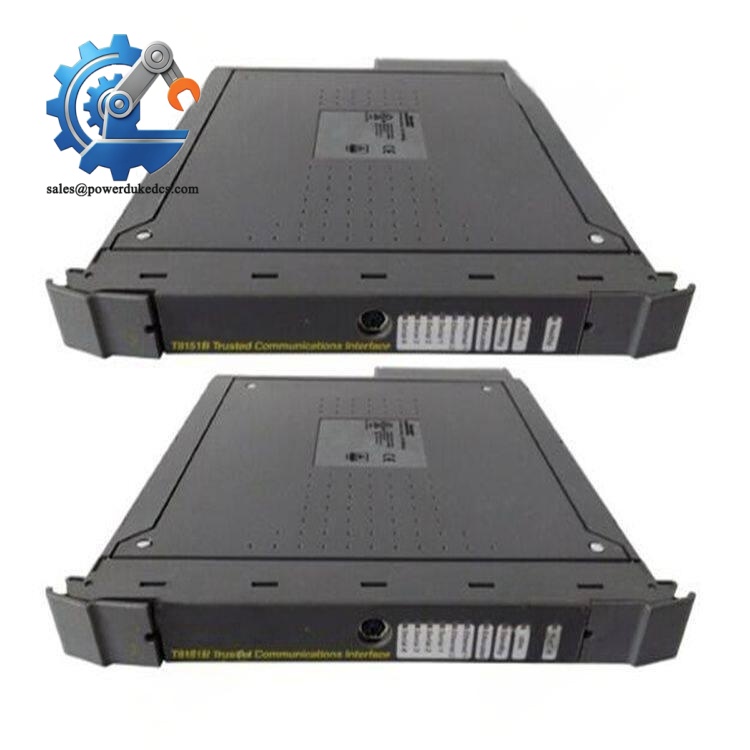

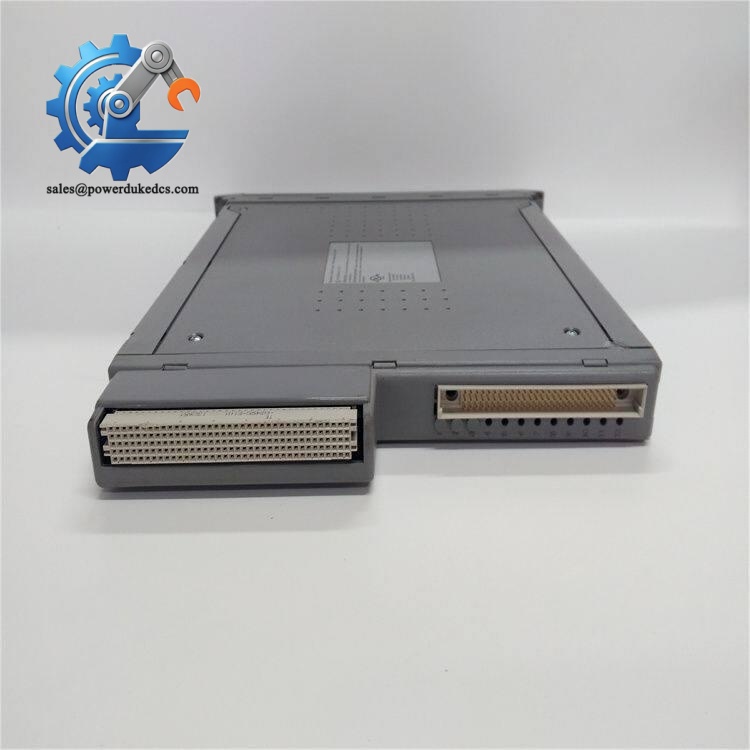

1. ICS Triplex T8151B | OEM Traceable Communication Spare

Unboxing & Physical Snapshot

• Model & Brand: ICS Triplex T8151B
• Product Type: Trusted Communication Interface (CI) Module
• Application: Communication interface module for the ICS Triplex Trusted TMR safety system. The T8151B handles communication services between the Trusted controller, engineering workstation, other Trusted systems, and third-party equipment, reducing communication workload on the TMR processor.
• Approximate Physical Dimensions (W × H × D):
  • Width: approximately 30–31 mm
  • Height: approximately 241 mm
  • Depth: approximately 300 mm
  • Form Factor: 3U Eurocard single-width module
• Estimated Shipping Weight: Approximately 1.2–1.5 kg including ESD packaging and protective transport materials.
• What’s in the Box:
  • ICS Triplex T8151B Trusted Communication Interface Module
  • Front diagnostic panel with status indicators
  • Rear communication interface connection points
  • Backplane interface connector
  • Anti-static (ESD) shielding bag
  • Protective foam packaging
  • Documentation when supplied with controlled inventory

Product Introduction

The T8151B mounts into a Trusted T8100/T8300 controller or expander chassis as a communication service module within the safety system architecture. It connects through the Trusted Inter-Module Bus and provides external communication paths including dual Ethernet and serial interfaces (important where safety controllers must exchange data without burdening the main TMR processor).

This module should be managed as a safety lifecycle component. Replacement requires verification of firmware revision, communication configuration, chassis slot location, and validated application settings. Inspect the rear connector pins, front diagnostic port, retaining hardware, and module casing before installation. A powered swap without configuration records can create unnecessary troubleshooting delays.

Core Technical Specifications

ICS Triplex

Global Compliance & Industry Certifications

Expected compliance considerations for the ICS Triplex include:

• CE Mark for applicable EMC and electrical safety requirements within the certified Trusted system installation.
• IEC 61508 SIL capability when used as part of the validated Trusted TMR safety platform.
• UL/cUL Listed or Recognized status depending on the final installed system configuration.
• ATEX/IECEx consideration when installed within a certified hazardous-area safety system.
• Marine approvals such as DNV GL where integrated into approved offshore or vessel control applications.

IEC 61508 compliance is significant because it defines requirements for safety-related electronic systems and their ability to reduce dangerous failure risks. The approval applies to the complete certified architecture, including hardware configuration, software, installation, and maintenance procedures.

Verify specific lot certifications with OEM.

Long-Term Storage & Asset Preservation Guide

• Keep the inside the original anti-static (ESD) shielding bag during warehouse storage. Protect the backplane connector and communication interfaces from oxidation.
• Maintain humidity below 60% RH to prevent corrosion on connector surfaces and degradation of PCB materials.
• Inspect stored units every 12–24 months. Record firmware revision, inspect the front LEDs and diagnostic connector condition, and verify packaging integrity before deployment.

Check the date code. Safety communication modules require accurate lifecycle records.

ICS Triplex

Physical Installation Prerequisites

• Install only into an approved ICS Triplex Trusted T8100/T8300 chassis slot.
• Verify module position, chassis configuration, and communication addressing before power application.
• Maintain cabinet airflow for heat removal. Leave approximately 50 mm clearance above and below the rack assembly where cabinet design permits.
• Confirm dual redundant 24 VDC backplane supply availability.
• Ensure cabinet protective earth grounding is correctly bonded.
• Use ESD protection during handling.
• Verify communication firmware, network parameters, Modbus settings, and safety validation documentation before returning the system to service.

Buyer’s FAQ (Logistics & Compliance Focus)

Q: What HS Tariff Code is commonly reviewed for the ICS Triplex ?
A: Industrial communication modules are commonly evaluated under HS 8537 or related electrical control equipment classifications. The final classification depends on the destination country, declared function, and customs authority interpretation.

Q: Does Country of Origin (COO) documentation matter for the ?
A: Yes. COO records support customs clearance, supplier qualification, and safety asset traceability. Maintain the OEM label, serial number, purchase documentation, and receiving inspection records.

Q: Should shipping insurance be purchased for the ICS Triplex ?
A: Yes. This module contains specialized safety communication electronics, processor hardware, and memory devices. Use ESD packaging, moisture protection, shock protection, and declared-value freight coverage.

Q: Does the ICS Triplex include the latest firmware pre-loaded?
A: Not necessarily. The module contains Flash firmware storage, but the installed firmware version depends on the individual unit and previous system configuration. Verify firmware revision, communication settings, and Trusted system compatibility before installation.
