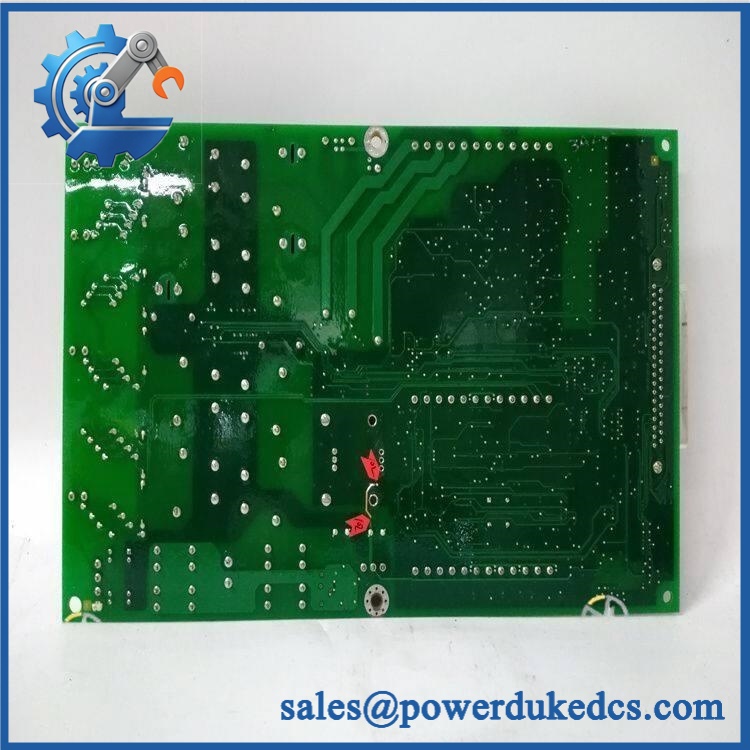

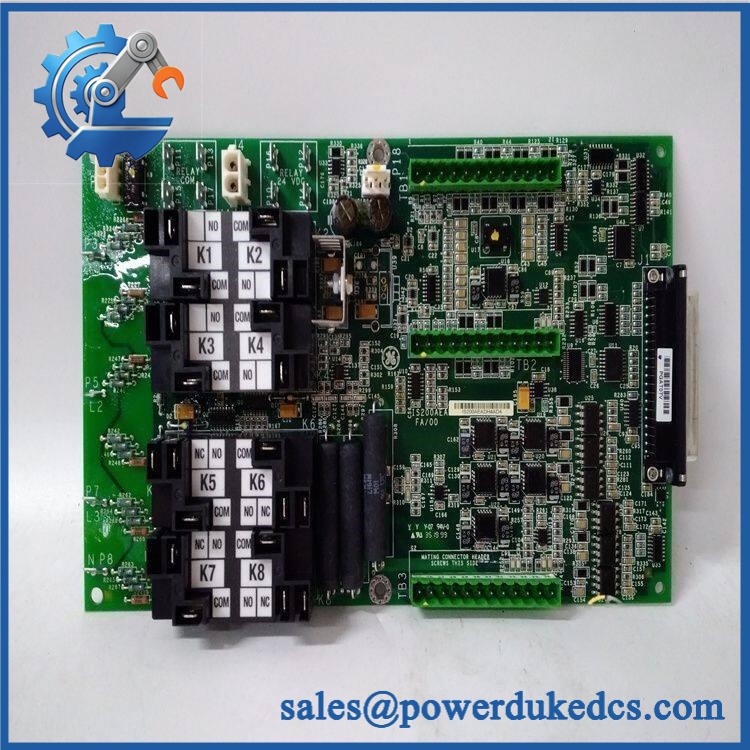

GE IS200AEPCH1ACC IS215AEPCH1DB | New Surplus Wind Control

Description

• Brand: GE Energy
• Full Model Number: IS200AEPCH1ACC / IS215AEPCH1DB
• System/Series Family: Mark VIe Wind Turbine Control
• Core Function: Alternative Energy Pitch Controller / Non-ESS Wind Pitch Center Control
• Top 3 Hardcore Specs: AEPC functional board; Mark VIe wind control; two-board PCB assembly configuration
• Functional Acronym: AEPC — Alternative Energy Pitch Control
• Assembly Type: IS215 higher-level board assembly
• Associated Board: IS210BP-PCH1AC commonly listed with IS215AEPCH1DB
• Application: Wind turbine pitch control
• Stock Status: New Surplus / Factory-Sealed or Fully Tested Refurbished subject to actual inventory condition

Available repair-industry records identify IS215AEPCH1DB as a Non-ESS Wind Pitch Center Control Board within the GE Mark VIe Wind Turbine series. Other component records list the IS215AEPCH1DB together with IS210BP-PCH1AC, while the IS200AEPCH1ACC is identified within the AEPC Alternative Energy Pitch Controller family.

GE IS200AEPCH1ACC IS215AEPCH1DB

Module 3: Technical Product Introduction

A wind-turbine pitch-control fault can quickly become an operational problem because blade-angle control directly affects turbine regulation and protection. The GE IS200AEPCH1ACC / IS215AEPCH1DB belongs to the Mark VIe Alternative Energy Pitch Control (AEPC) family. The IS215AEPCH1DB is specifically described as a Non-ESS Wind Pitch Center Control Board, while GE Energy component records associate the AEPC family with wind pitch-control applications.

The two identifiers should not be treated as unrelated catalog numbers. The IS200 designation represents a lower-level board assembly, while the IS215 designation identifies a higher-level assembly or assembly containing additional components. GE’s board-identification documentation explains that the IS200/IS215 structure distinguishes assembly levels and that the complete board number, including revision characters, matters for ordering. For the supplied combination, the associated IS210BP-PCH1AC board is also documented with the IS215AEPCH1DB assembly, so the exact physical assembly configuration should be checked before replacement.

Module 4: Application Scenarios & Field Realities

• Inside a Mark VIe wind turbine pitch system, the AEPC hardware participates in the control architecture responsible for blade-pitch operation. If pitch feedback or command behavior becomes abnormal, check the controller, associated I/O, power supply, feedback circuits, and communication paths before replacing the AEPC assembly.
• For non-ESS wind turbine configurations, the IS215AEPCH1DB is specifically identified as a Non-ESS Wind Pitch Center Control Board. That designation matters when comparing it with other AEPC variants because wind-control assemblies can differ by turbine configuration and pitch-system architecture.
• During board-level troubleshooting, inspect the associated IS210BP-PCH1AC assembly where applicable. Multiple equipment records list IS215AEPCH1DB together with IS210BP-PCH1AC, indicating that the IS215 assembly can incorporate a lower-level board assembly.
• For spare-parts planning on older Mark VIe wind equipment, keep the complete identification chain. A request containing only “AEPC board” is not sufficient. Record the IS200/IS215 number, all revision characters, associated IS210 board number, and the turbine control configuration.

GE IS200AEPCH1ACC IS215AEPCH1DB

Module 5: Migration, Compatibility & Installation Traps

Replacement Matrix

Field Traps — Watch Out

1. Do not treat IS200 and IS215 as interchangeable by number similarity.
GE’s board-number convention distinguishes assembly levels: IS200 identifies a base-level board, while IS215 represents a higher-level assembly or an assembly with additional components. The complete part number and revision characters are therefore important.

2. Verify the associated IS210 assembly.
Records for IS215AEPCH1DB show configurations paired with IS210BP-PCH1AC, IS210BP-PBH2CAA, and other assembly variants. This indicates that the suffix and associated board assembly can matter to the physical configuration. Do not order an IS215AEPCH1DB without comparing the existing assembly and material-list information.

Installation note: Follow the turbine manufacturer’s electrical isolation procedure before removing the pitch-control assembly. Preserve connector positions and record the existing board identification before disassembly. Pitch-control equipment should not be returned to normal turbine operation until the applicable pitch command, feedback, alarm, and protection functions have been verified.

Module 6: Quality Assurance SOP

For GE IS200AEPCH1ACC / IS215AEPCH1DB, QA should verify the complete board hierarchy because this is a Mark VIe wind-control assembly rather than a simple standalone PCB.

• Part-number verification: Confirm IS200AEPCH1ACC and IS215AEPCH1DB from the physical labels and purchasing record.
• OEM anti-counterfeit visual inspection: Examine GE Energy markings, board identifiers, revision codes, PCB construction, connectors, component placement, and manufacturing labels.
• Revision verification: Record every revision character. GE’s documentation states that all digits are important when ordering or replacing boards.
• Assembly verification: Confirm whether the IS215AEPCH1DB is fitted with the expected IS210BP-PCH1AC or another documented associated assembly.
• Mechanical inspection: Check mounting points, PCB edges, connectors, terminal areas, board guides, and assembly hardware for damage.
• Component inspection: Look for overheated components, cracked packages, corrosion, damaged connectors, loose hardware, or evidence of unauthorized repair.
• Power-on self-test (POST): Install the assembly in an approved Mark VIe test environment and verify startup behavior and available status indications.
• Power-rail verification: Confirm the required supply rails against the applicable GE turbine-control documentation before functional testing.
• I/O verification: Exercise the applicable pitch-control inputs and outputs using a controlled test fixture.
• Feedback verification: Where the test setup permits, verify the associated pitch feedback signal paths and diagnostic response.
• Control-function verification: Confirm that the AEPC assembly responds correctly to the approved pitch-control test sequence.
• Communication handshake verification: Verify communication between the AEPC assembly and the applicable Mark VIe control architecture.
• Diagnostic verification: Check for active hardware, communication, feedback, or configuration faults before releasing the board.
• Final inspection: Recheck connectors, board labels, revision markings, mounting hardware, and protective packaging.
• Traceability: Record the complete IS200/IS215 identification, associated IS210 assembly, revision, serial information where available, test results, inspection date, and condition classification.

Procurement caution: The combination IS200AEPCH1ACC / IS215AEPCH1DB should be preserved exactly in the RFQ or purchase record. GE’s own board-identification guidance states that the complete alphanumeric board number is important for replacement, while available Mark VIe wind-control records confirm that different AEPC assemblies can use different associated IS210 boards.
