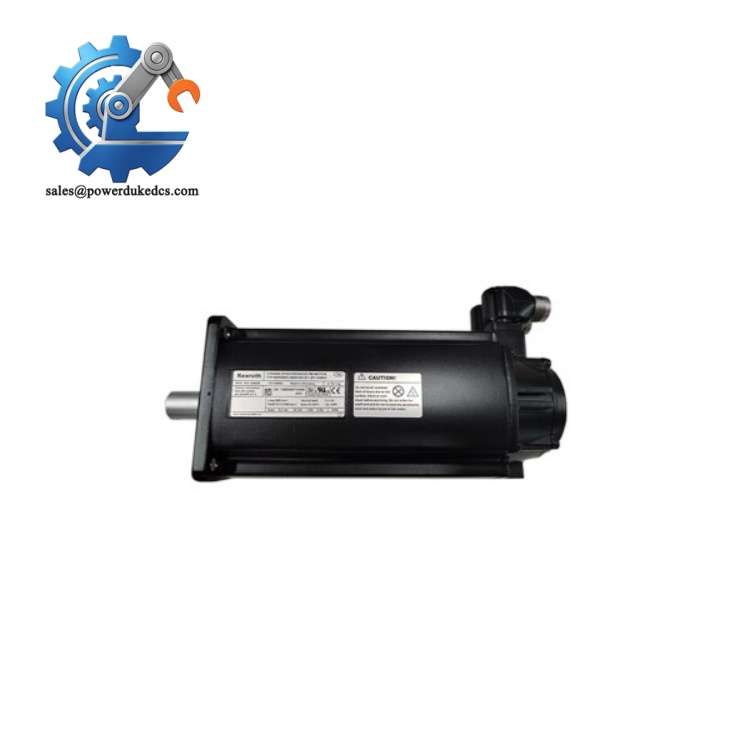

- Rexroth MSK060C-0600-NN-S1-UP1-NNNN | Traceable Motion Unit
2. Unboxing & Physical Snapshot
- Model & Brand: Bosch Rexroth Indramat MSK060C-0600-NN-S1-UP1-NNNN
- Product Type: IndraDyn S Synchronous Servo Motor
- Application: Precision servo motor for industrial motion systems, including machine tools, robotics, packaging equipment, and production machinery. The MSK series uses integrated encoder feedback and motor parameter storage for drive commissioning.
- Motor Series: MSK060C
- Feedback System: Single-turn absolute optical encoder with Hiperface interface.
- Holding Brake: Electrically released brake, 24 VDC, 10 Nm holding torque.
- Approximate Physical Dimensions (W × H × D):
- Estimated: 160 × 160 × 300 mm
- Final dimensions vary with shaft configuration and connector orientation.
- Estimated Shipping Weight: Approximately 8–10 kg including protective transport packaging.
- What’s in the Box:
- Bosch Rexroth MSK060C-0600-NN-S1-UP1-NNNN servo motor
- Motor power connector
- Encoder feedback connector
- Holding brake connection interface
- Shaft protection cover (if supplied)
- Anti-static and shock-resistant packaging
- Documentation when supplied with controlled inventory
3. Product Introduction
The MSK060C-0600-NN-S1-UP1-NNNN is installed as the rotary motion element within Bosch Rexroth IndraDrive automation systems. The motor converts electrical commands from the servo drive into controlled mechanical movement, with the integrated encoder providing position feedback for closed-loop operation. (The stored motor data inside the encoder simplifies replacement procedures in many validated machine environments.)
Handle this motor as a precision mechanical and electronic assembly. Inspect the shaft, flange face, encoder connector, brake wiring, and sealing surfaces before installation. The IP65 design helps protect against industrial contamination, but bearing damage, connector corrosion, or impact marks can still compromise long-term reliability.
4. Core Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | Bosch Rexroth Indramat |
| Model Number | MSK060C-0600-NN-S1-UP1-NNNN |
| Product Family | IndraDyn S MSK Series |
| Motor Type | Permanent Magnet Synchronous Servo Motor |
| Frame Size | MSK060C |
| Rated Speed | Up to 6000 rpm (motor variant dependent) |
| Continuous Current (60K) | Approx. 9.5 A |
| Maximum Current | Approx. 38 A |
| Encoder Type | Single-turn absolute optical encoder |
| Encoder Interface | Hiperface |
| Encoder Accuracy | Approx. ±80 angular seconds |
| Holding Brake Type | Electrically released |
| Holding Brake Voltage | 24 VDC |
| Holding Brake Torque | 10 Nm |
| Shaft Design | Keyway according to DIN 6885 |
| Cooling Method | Natural convection |
| Protection Class | IP65 |
| Thermal Class | Class 155 |
| Rotor Inertia | Model dependent |
| Processor | None |
| Memory | Encoder parameter memory |
| Firmware | No user firmware |
| Heat Dissipation | Motor winding and mechanical losses during operation |
Rexroth MSK060C-0600-NN-S1-UP1-NNNN
5. Global Compliance & Industry Certifications
Expected compliance considerations for the Bosch Rexroth MSK060C-0600-NN-S1-UP1-NNNN include:
- CE Mark
- RoHS compliance
- IEC 60034 motor standard considerations
- UL/cUL recognition may apply depending on market and system certification
- ATEX Group II Category 3 availability may apply for selected MSK configurations
- Marine approvals such as DNV GL are generally not applicable unless installed within a certified marine automation package
The CE marking is important for servo motors because they operate together with high-frequency switching drives. Correct EMC installation, shielding, and grounding prevent interference with nearby control electronics.
Verify specific lot certifications with OEM.
6. Long-Term Storage & Asset Preservation Guide
- Store the MSK060C-0600-NN-S1-UP1-NNNN in a dry indoor environment with protective packaging installed. Keep the shaft surface covered to prevent corrosion.
- Maintain warehouse humidity below 60% RH. Moisture exposure can affect encoder connectors, brake contacts, and bearing lubrication.
- Rotate stored motor shafts periodically according to maintenance practice when long-term storage exceeds several years.
Protect the encoder connector.
Do not place motors directly on concrete floors. Condensation cycles can introduce moisture into mechanical assemblies even when the external housing appears clean.
Record the motor serial number, encoder type, brake option, and inspection date before shelf storage.
7. Physical Installation Prerequisites
- Install using the correct IndraDrive-compatible motor cable and feedback cable.
- Confirm flange dimensions and shaft coupling compatibility before mounting.
- Connect protective earth grounding before energizing the drive system.
- Verify brake voltage and release function before machine operation.
- Keep encoder cables separated from motor power cables to reduce electrical interference.
- Maintain adequate cooling space around the motor and associated drive electronics.
- Leave approximately 50 mm clearance around cooling areas where machine design permits.
- Inspect the shaft seal, mounting bolts, and connector locking mechanisms before startup.
8. Buyer’s FAQ (Logistics & Compliance Focus)
Q: What HS Tariff Code is commonly reviewed for the Rexroth MSK060C-0600-NN-S1-UP1-NNNN?
A: Servo motors are commonly classified under HS 8501 categories for electric motors. The final tariff classification depends on rated power, construction, and destination-country customs requirements.
Q: Why does Country of Origin (COO) documentation matter for this servo motor?
A: COO supports customs clearance, machine-builder documentation, warranty records, and maintenance traceability. The COO should match the commercial invoice, packing list, and motor nameplate information.
Q: Is shipping insurance recommended for this servo motor?
A: Yes. The encoder assembly, bearings, shaft, and brake components require careful handling. Use shock-resistant packaging, moisture protection, and declared-value freight insurance.
Q: Does the MSK060C-0600-NN-S1-UP1-NNNN include the latest firmware pre-loaded?
A: No. The motor does not contain application firmware. The encoder stores motor identification and parameter data, while motion control firmware resides in the connected Rexroth drive controller.
