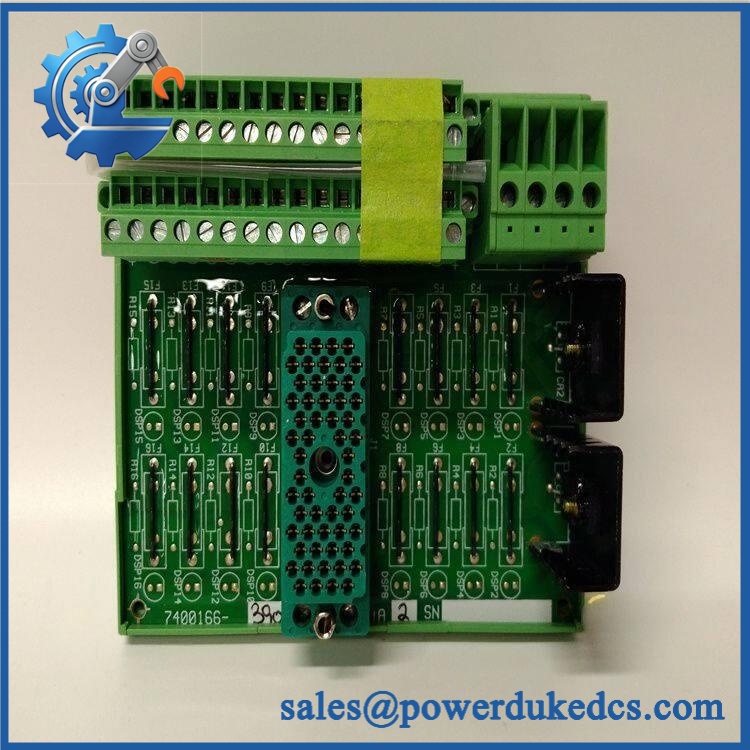

Triconex 3000520-390 DO | Digital Output Terminal Panel

Unboxing & Physical Snapshot

• Model & Brand: Triconex 3000520-390 DO.
• Product Type: External Termination Panel (ETP) for a Triconex digital-output configuration. The DO suffix should be retained as part of the controlled material identity.
• Physical Dimensions: Exact W × H × D should be taken from the applicable Triconex mechanical drawing. Do not substitute dimensions from another 3000520-series termination panel.
• Estimated Shipping Weight: Allow approximately 1–2 kg gross as a temporary freight-planning allowance until the actual packaged assembly is weighed.
• What’s in the Box: 3000520-390 DO termination panel and protective packaging when supplied as a standalone spare. The associated digital-output module, system cable, field wiring, and cabinet hardware should not be assumed included.
• Receiving Inspection: Photograph the complete part number, DO designation, serial/traceability information, terminal markings, connector condition, mounting hardware, and revision information.

Product Introduction

Architecture Hook

The 3000520-390 DO is termination hardware rather than the Tricon digital-output electronics themselves. Its role is to provide the field-side interface associated with the applicable Tricon digital-output assembly, so the terminal numbering, cable interface, and mating I/O module must all remain under configuration control.

That distinction is important during emergency spare replacement. A similar-looking termination panel from another Tricon I/O family can have different point assignments or cable pinouts (which can turn a physically successful installation into a wiring or safety-function error).

Core Technical Specifications

Triconex 3000520-390 DO

Configuration warning: The suffix DO identifies the signal class and should not be dropped from the ERP description. Do not infer the associated Tricon I/O model, output voltage, channel count, or cable number without the corresponding OEM cross-reference.

The terminal panel should be treated as a matched interface component, not a generic replacement for another Triconex ETP.

? Global Compliance & Industry Certifications

• CE Mark: Verify the applicable Triconex system declaration and the certification basis for the exact 3000520-390 DO assembly.
• UL/cUL: Confirm UL/cUL status from the applicable Tricon system certification documentation. Do not infer approval from the part number.
• ATEX/IECEx: Do not assume independent hazardous-area certification. Suitability depends on the complete certified field circuit, barriers/interface equipment, enclosure, and installation method.
• Marine Approvals: DNV, ABS, or Lloyd’s Register approval must be verified against the complete Tricon system configuration before marine or offshore use.
• Functional Safety: The ETP participates in a safety-system signal path but does not independently establish SIL capability. The complete sensor-to-logic-to-final-element architecture must be validated.
• Wiring Compliance: Terminal allocation and field wiring must match the approved Tricon engineering documentation. Incorrect termination can defeat the intended output function even when the ETP itself is undamaged.
• Audit Record: Preserve the part number, suffix, revision, associated I/O module, cable number, installation drawing, supplier traceability, and applicable certification records.

Verify specific lot certifications with OEM.

? Long-Term Storage & Asset Preservation Guide

1. Keep the ETP in its original protective packaging. Protect terminal blocks, connector contacts, and identification labels from dust, impact, and electrostatic contamination.
2. Maintain warehouse humidity below approximately 60% RH. Avoid condensation and large temperature swings; oxidation at terminal contacts can become an intermittent field fault months after installation.
3. Do not damage or obscure terminal markings. The point labels and circuit identifiers are installation-control information. Warehouse labels should be placed beside—not over—the OEM markings.
4. Store it with its system cross-reference. Record the associated Tricon DO module and system-cable part number once positively verified. Without that cross-reference, an ETP can become a shelf item with no reliable field-use authorization.

Physical Installation Prerequisites

• System Compatibility: Verify the exact Tricon digital-output module that mates with the 3000520-390 DO before issuing it for installation.
• Cable Compatibility: Confirm the correct Tricon system cable and connector pinout. Do not substitute a similar-looking cable.
• Mounting: Follow the OEM ETP mechanical drawing for panel mounting, fasteners, and orientation.
• Clearance: Maintain adequate front working space for terminal access and rear clearance for the mating connector and cable bend radius.
• Grounding: Follow the approved Tricon cabinet bonding and field-shield termination arrangement.
• Field Wiring: Verify each output point against the approved loop drawing before connecting final-element wiring.
• Power: The termination panel should not be treated as an independently powered output module; field power requirements come from the associated DO electronics and load circuit.
• Commissioning: Perform point-to-point continuity checks, output-state verification, field-load response checks, and final safety-function testing before returning the loop to service.

Buyer’s FAQ

Q1. What HS tariff code should be used for Triconex 3000520-390 DO?

Do not assign an HS code from the part number alone. The item should first be correctly identified as a digital-output external termination panel, after which the customs broker can determine the appropriate classification under the importing country’s tariff schedule.

The commercial invoice should distinguish the ETP from the active Tricon digital-output module and from the system cable.

Q2. Does Country of Origin affect this spare?

Yes. COO can affect duty rates, preferential tariff treatment, origin declarations, and customs screening.

Confirm COO from the physical assembly, OEM documentation, or a valid Certificate of Origin. Do not infer manufacturing origin from the supplier’s ship-from location.

Q3. Should shipping insurance be purchased?

Insurance should be evaluated against replacement value and the operational importance of the associated safety loop. The panel is not usually a high-mass item, but bent terminals, damaged connectors, or enclosure deformation can make it unsuitable for controlled installation.

Photograph the terminal panel, OEM label, terminal markings, connectors, and packaging before shipment.

Q4. Does the 3000520-390 DO include the latest firmware pre-loaded?

No firmware should be assumed. An external termination panel is passive interface hardware rather than a programmable processor.

The relevant receiving checks are the exact part number, DO designation, terminal configuration, associated I/O module, system cable, and mechanical condition.

Asset-control note: Maintain TRICONEX 3000520-390 DO as a distinct termination-panel material. Do not remove the DO suffix from the ERP record, and do not release the panel against a work order until its associated Tricon digital-output module and system-cable cross-reference have been verified.
