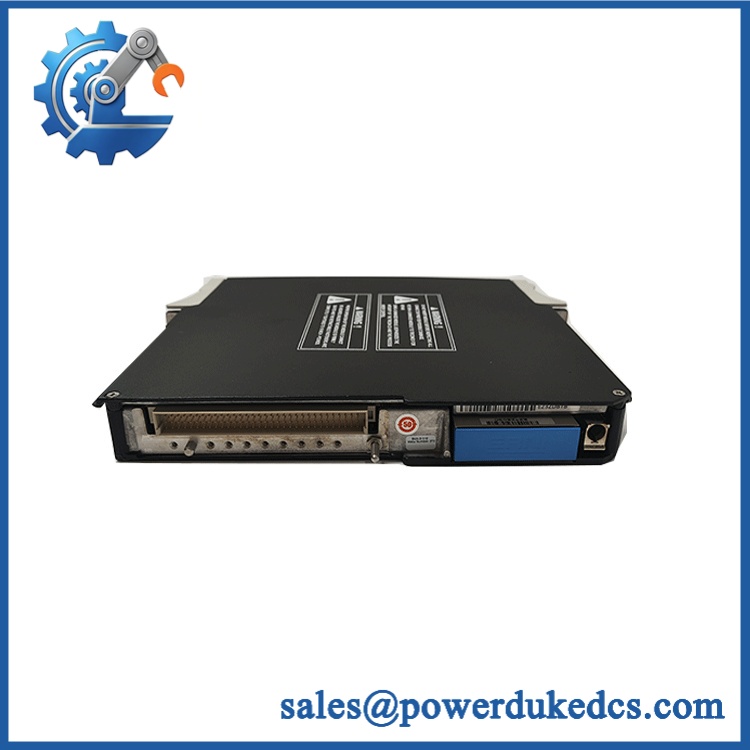

TRICONEX 3411S2 | Tri-GP 16 Point Supervised Digital Output Module

Description

• Brand: TRICONEX
• Full Model Number: 3411S2
• System/Series Family: Triconex General Purpose Tri-GP
• Core Function: 16-point supervised digital output module for monitored field devices in safety and fire-and-gas applications
• Top 3 Hardcore Specs: 16 commoned outputs; 24 VDC nominal; 19–30 VDC operating range
• Stock Status: Verify current New Surplus, Factory Sealed, or Fully Tested Refurbished condition before order

Module 3: Technical Product Introduction

A conventional digital output can confirm that its command changed, but that does not necessarily prove the field circuit and connected device are healthy. The TRICONEX 3411S2 is the Tri-GP Supervised Digital Output (SDO) module intended for monitored field circuits, particularly fire-and-gas applications. Schneider Electric documentation identifies 3411S2 as a 16-point SDO, with each point independently configurable for supervision. The module is compatible with Tri-GP version 2.1 and later systems.

The electrical limits are defined for a 24 VDC field system. Technical product specifications list 16 commoned outputs, 24 VDC nominal output voltage, and a 19–30 VDC operating range. The output circuitry is self-limiting to less than 4.8 A, with 30 mA minimum required field load, approximately 700 mA maximum self-limited output current, and an output voltage drop below 1.6 V at 1.6 A. The documented all-point loop-back scan time is under 8 ms.

Module 4: Application Scenarios & Field Realities

• In fire-and-gas systems, the 3411S2 is used where supervision of the field circuit matters alongside the commanded output state. Schneider documentation specifically identifies the module for providing loop supervision to field devices in fire-and-gas applications, with all 16 points independently configurable.
• When a solenoid, horn, beacon, or other monitored field device is controlled from the Tri-GP system, the SDO architecture provides diagnostic information beyond a simple output ON/OFF condition. The diagnostic environment exposes both Output Voter Diagnostic (OVD) and Supervision status for each SDO point.
• During a brownfield replacement, verify whether each channel is configured as supervised or supervision-inhibited. TriStation documentation provides a per-point supervision configuration, so two 3411S2 installations with the same hardware number can still have materially different application behavior.
• For high-current field loads, do not treat the 3411S2 as interchangeable with the standard 3401S2 merely because both are 16-point, 24 VDC digital-output modules. The 3411S2 is the supervised-output variant and uses the associated 2401HS2 high-current baseplate in the standard configuration documented for this module.

TRICONEX 3411S2

Module 5: Migration, Compatibility & Installation Traps

Replacement Matrix

Exact 3411S2 with matching Tri-GP configuration: Drop-in Replacement
When the existing controller uses 3411S2, the correct baseplate, approved firmware, identical field termination, and matching application configuration, the module can normally be exchanged as a direct hardware replacement.

3411S2 firmware or configuration revision change: Software Compatible / Configuration Verification Required
The module supports per-point supervision configuration. Capture the existing supervision settings and diagnostic configuration before replacement, then restore and verify them after installation.

3401S2 substituted for 3411S2: Hardware Modification Required
Both modules provide 16 commoned 24 VDC outputs, but 3411S2 adds supervised-output functionality and uses a different documented baseplate arrangement. A standard DO module should not be treated as a functional equivalent in a monitored fire-and-gas circuit.

⚠️ Field Traps (Watch Out)

Supervision configuration trap: The SDO’s supervision function is configurable per point. During replacement, verify whether each channel is set to Supervised or Supervision-Inhibited. The wrong setting can generate nuisance diagnostics or remove the intended field-circuit monitoring.

Minimum-load trap: The published specification identifies a 30 mA minimum required field load. A field device or test load below the specified requirement can cause unexpected supervision behavior even though the output voltage itself appears normal.

Baseplate trap: The documented 3411S2 configuration uses the 2401HS2 high-current digital-output baseplate or the applicable external-termination baseplate. Do not force a 3411S2 into an apparently similar DO baseplate without confirming the approved configuration.

Module 6: Quality Assurance SOP

Pre-Shipment QA Protocol for TRICONEX 3411S2

• Step 1 — Identity Verification: Confirm TRICONEX marking, 3411S2 model number, serial number, hardware revision, firmware revision where available, and associated baseplate identification.
• Step 2 — OEM Anti-Counterfeit Visual Inspection: Inspect labels, barcodes, PCB markings where accessible, connector geometry, mechanical keys, front-panel indicators, fasteners, and evidence of unauthorized repair.
• Step 3 — Mechanical Inspection: Check the housing, field connector, card-edge interface, mounting hardware, keying arrangement, and enclosure for cracks, corrosion, contamination, or deformation.
• Step 4 — Power and Load Fixture Verification: Prepare a controlled 24 VDC test source and representative field loads that comply with the documented minimum-load requirements.
• Step 5 — Power-On Self-Test: Install the module in an approved Tri-GP test assembly and verify normal startup, module recognition, PASS/FAULT status, and absence of diagnostic errors.
• Step 6 — 16-Channel Output Test: Exercise all 16 outputs individually and record energized/de-energized operation, output voltage, current response, and channel indication.
• Step 7 — Supervision Test: For each configured supervised channel, simulate the approved field-circuit conditions and verify that the module correctly reports normal supervision and applicable fault states.
• Step 8 — Output Voter Diagnostic Verification: Execute the approved diagnostic procedure and confirm the expected OVD status for the tested output points. Schneider documentation provides separate OVD and supervision status monitoring for 3411S2 points.
• Step 9 — Load and Stability Test: Operate representative channels under controlled loads and monitor for unexpected current limiting, intermittent output transitions, thermal rise, or diagnostic faults.
• Step 10 — Final QC Record: Record model, serial number, hardware/firmware revision, all 16 channel results, supervision results, OVD status, measured supply voltage, visual condition, test date, and final QC disposition.

Technical Verification Note: Schneider Electric documentation identifies 3411S2 as the Tri-GP Supervised Digital Output module, with 16 independently configurable points, intended for loop supervision of field devices in fire-and-gas applications. The technical product guide specifies 24 VDC nominal output, 19–30 VDC operating range, 30 mA minimum field load, less than 4.8 A self-limiting output capability, and less than 8 ms loop-back scan time for all 16 points. The module is compatible with Tri-GP v2.1 and later systems.
