TRICONEX 8312 | Triple-Redundant Power Module

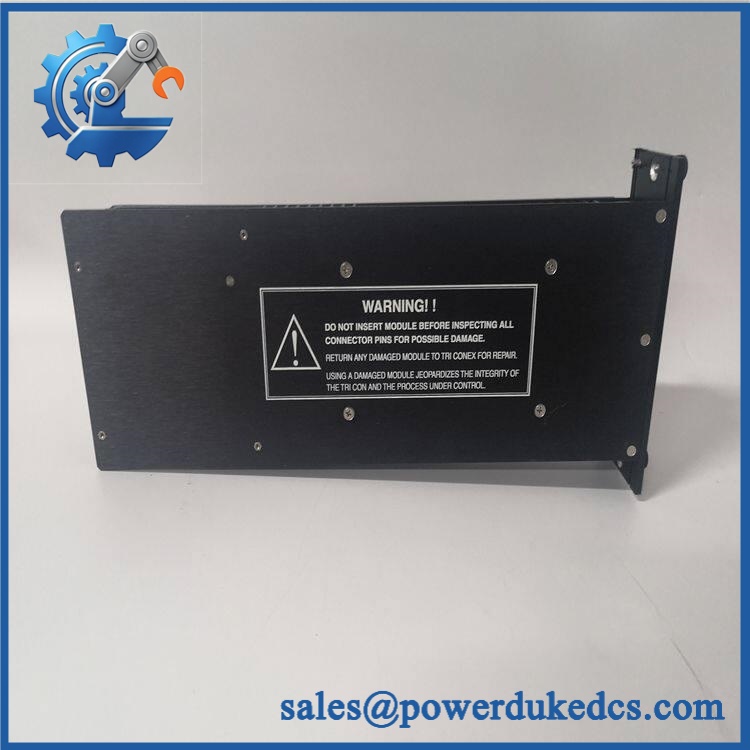

Unboxing & Physical Snapshot

• Manufacturer: TRICONEX / Invensys
• Model: 8312
• Product type: Tricon system power supply module.
• Primary function: Converts plant 24 VDC input power into regulated power for the Tricon chassis electronics.
• Power architecture: Tricon systems use redundant power-supply modules; the exact chassis arrangement must be checked before replacement.
• Input: 24 VDC nominal.
• Approximate module dimensions: Approximately 40.8 × 40.8 × 2.2 cm as a preliminary shipping reference; verify the actual Tricon chassis/module mechanical drawing before rack planning.
• Estimated shipping weight: Approximately 2–3 kg packed, depending on packaging and accessories.
• What’s in the box: 8312 power-supply module; connector/accessory hardware only where specifically included on the purchase order.
• Physical inspection points: Front status indicators, power connector, module housing, retaining hardware, and backplane connector.
• Asset identity: Record the complete 8312 model number, serial number, hardware revision, date code, and input-voltage configuration.

Product Introduction

The TRICONEX 8312 occupies a dedicated position within the Tricon chassis power architecture. It is not a field power converter for external loads; its purpose is to provide the regulated internal supply required by Tricon control electronics. The module therefore belongs to the system’s availability architecture, where redundant power modules allow continued operation following a single power-supply fault.

Treat the 8312 as a system-critical spare. Check the chassis type, number of installed power modules, 24 VDC source arrangement, and module revision before installation (the retaining clips and rear connector should be inspected carefully because mechanical damage can prevent a good backplane connection even when the supply itself tests correctly).

Core Technical Specifications

TRICONEX 8312

The 8312 should not be selected by nominal voltage alone. A 24 VDC input does not establish interchangeability with other Tricon power modules; the chassis model, power architecture, connector arrangement, and approved module type must all match.

Because this is power-conversion hardware, heat generation is directly related to electrical loading and conversion losses. Maintain the specified chassis airflow and do not obstruct the module’s ventilation path.

? Global Compliance & Industry Certifications

For a Tricon power module, certification needs to be considered together with the complete safety-system installation.

• CE Mark: Verify the applicable Triconex/Invensys conformity documentation for the exact 8312 revision.
• UL/cUL: Confirm the applicable North American certification for the module and complete Tricon chassis.
• EMC: Verify cabinet grounding, DC supply wiring, shielding, and installation practices.
• ATEX/IECEx: Do not assume that the 8312 itself is approved for direct hazardous-area installation. Hazardous-area compliance normally depends on the complete certified system and installation concept.
• Marine approvals: DNV or equivalent marine certification should only be recorded when the exact configuration is covered by a valid approval.
• Functional safety: The 8312 supports the power architecture of a Tricon safety system, but the power module itself should not be treated as independent evidence of SIL capability.

For audit purposes, keep the module’s certification records together with the Tricon chassis model, power-supply arrangement, and installation documentation. This prevents a generic Tricon system approval from being incorrectly applied to an incompatible power configuration.

Verify specific lot certifications with OEM.

? Long-Term Storage & Asset Preservation Guide

Keep the 8312 in its original ESD shielding packaging. Protect the rear connector from contamination and mechanical impact; never place the module directly on a conductive workbench without ESD controls.

Control warehouse humidity below 60% RH where practical. Avoid condensation, salt-laden air, corrosive chemicals, and rapid temperature changes. Power modules contain switching and filtering components that are particularly poor candidates for uncontrolled long-term storage.

Pay attention to aged electrolytic capacitors. If the 8312 has been stored for several years, do not immediately apply full operating power simply because the exterior looks clean. Follow the applicable OEM inspection/startup procedure and evaluate the condition of the DC input and internal power circuitry before returning an aged spare to service.

Record the serial number, date code, storage history, and last inspection date. For a safety-system spare, this information is more valuable than a simple “tested” warehouse label.

Physical Installation Prerequisites

• Install the 8312 only in the approved Tricon chassis and power-supply position.
• Confirm the chassis power architecture before removing an installed module.
• Verify the 24 VDC plant supply polarity and voltage before connection.
• Do not exceed the specified DC input range.
• Ensure the module is fully seated against the chassis backplane.
• Engage all retaining hardware before energizing the chassis.
• Maintain adequate airflow around the power-supply section of the chassis.
• As a preliminary cabinet practice, preserve approximately 50 mm around ventilation paths, unless the applicable Tricon installation drawing specifies another clearance.
• Maintain protective-earth continuity through the Tricon chassis and cabinet grounding system.
• Keep DC power wiring physically separated from high-energy AC, VFD, and motor circuits where required by the installation design.
• Verify redundant power modules and upstream 24 VDC sources before taking an existing supply out of service.
• Do not assume online replacement is permissible merely because another power module remains energized; follow the approved Tricon maintenance procedure.
• After installation, verify the power/status indicators and perform the applicable Tricon system diagnostics before declaring the spare operational.

Buyer’s FAQ

Which HS tariff code should be used for TRICONEX 8312?

Do not classify it simply as a generic “power supply.” The 8312 is a dedicated industrial control-system power module, and the final HS classification depends on its construction, principal function, and destination-country tariff schedule. Have the customs broker validate the code before shipment.

What Country of Origin should appear on the commercial invoice?

Use the actual COO supported by the physical unit and manufacturer/supplier traceability documentation. Do not infer origin from the seller’s warehouse or shipping country. Retain the COO evidence with the invoice and purchase records.

Should the 8312 be shipped with insurance?

For a Tricon power module, insurance is appropriate when the spare supports a critical SIS installation. Use ESD shielding, shock-absorbing material, moisture protection, and a rigid carton; photograph the nameplate, connector, and housing before dispatch.

Does the 8312 include the latest firmware?

Firmware is generally not the primary interchangeability issue for this power module. The critical checks are the exact 8312 hardware identity, chassis compatibility, power architecture, DC input requirements, and hardware revision. Do not substitute another Tricon power module solely because it also accepts 24 VDC.

Inventory-control recommendation: Classify TRICONEX 8312 as a critical system-power spare, not as an ordinary electronic component. Maintain at least one verified spare for each unique Tricon chassis/power architecture where a power-supply failure could create a process shutdown or compromise the required redundancy.
