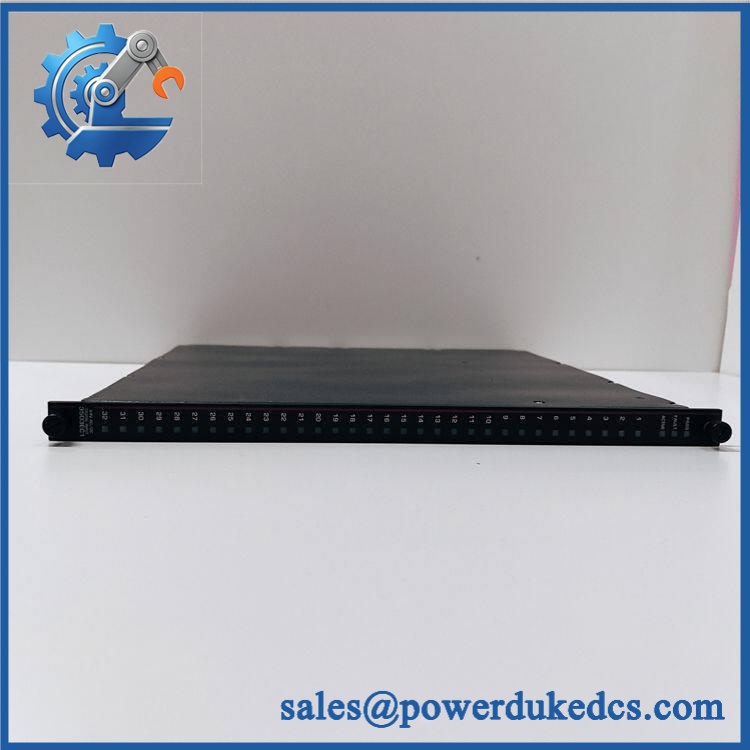

Triconex 3503/E/EN/EN2/EC | 32 Point 24VACDC Digital Input

Description

• Brand Triconex / Invensys
• Full Model Number 3503/E/EN/EN2/EC
• System/Series Family Tricon Safety Instrumented System
• Core Function 32-point digital input acquisition for 24 VAC/DC field signals using eight common-reference groups
• Top 3 Hardcore Specs 32 inputs | 24 VAC/DC nominal class | 4 groups of 8 inputs
• Stock Status New Surplus — verify exact suffix, hardware revision, certification status, baseplate, and termination panel before shipment

Module 3: Technical Product Introduction

A failed digital input card can make a running Tricon controller appear blind to field permissives, interlocks, limit switches, or alarm contacts. The Triconex 3503 family is a 32-point digital input module designed for 24 VAC/DC signals, with the inputs arranged in common-reference groups. Triconex technical documentation identifies the 3503 family as a 32-input, 24 VAC/DC digital input module, while safety-system documentation distinguishes the standard 3503E from the enhanced 3503EN2 surface-mount version.

For the field engineer, the group arrangement is more important than the headline channel count. The 3503 architecture uses four groups of eight inputs with a common reference, and the enhanced 3503EN2 version adds continuous verification of the transition of normally energized circuits to the Off state. Published technical references also identify a recommended input range of approximately 20–42.5 VDC for the 3503E family, with a 42.5 V maximum stated in supplier documentation; because those values are inconsistent with the broader 24 VAC/DC designation, the exact suffix and approved revision should be verified before applying DC test voltage.

Module 4: Application Scenarios & Field Realities

• At a Tricon emergency-shutdown cabinet, the 3503 family can monitor discrete states from pressure switches, valve-position contacts, permissive relays, and shutdown devices. The 32-point arrangement is useful where a substantial number of 24 VAC/DC status signals terminate in the same safety-system cabinet.
• For energized-to-trip field circuits, the enhanced 3503EN2 architecture is particularly relevant because Tricon documentation describes continuous verification of the transition of normally energized circuits to the Off state. That diagnostic capability can help distinguish an intentional state change from certain wiring or module faults.
• When several field contacts share a common reference, the eight-point grouping must be respected during termination. A misplaced common conductor can create multiple simultaneous input anomalies, making what looks like several bad channels a single wiring error.
• During a shutdown replacement, verify whether the cabinet uses the standard 3503E, surface-mount 3503EN2, or another approved suffix represented by the inventory notation 3503/E/EN/EN2/EC. These identifiers should not automatically be treated as electrically identical simply because they share the 3503 base designation.

Module 5: Migration, Compatibility & Installation Traps

Replacement Matrix

⚠️ Field Traps: Watch Out

The slash-separated inventory number needs normalization. 3503/E/EN/EN2/EC appears to combine several commercial or revision designations rather than identify one unambiguous full OEM part number. Tricon documentation distinguishes 3503E and 3503EN2, with the latter described as a surface-mount version qualified for later Tricon platforms. Confirm the actual nameplate before issuing the final replacement specification.

Do not confuse the 3503 family with 3505E. Both are 32-point digital inputs, but they serve different electrical applications. The 3503 family is the 24 VAC/DC class, whereas the 3505E is a low-limit 24 VDC design with different input characteristics.

Check the common-reference grouping. The 3503E/EN2 architecture uses groups of eight inputs with a common reference. Field wiring must follow the actual termination-panel schematic; do not assume that all 32 channels can be wired with one common reference.

Verify AC versus DC field service. The family is specified for 24 VAC/DC applications, but DC diagnostic thresholds and AC input behavior should be confirmed against the exact hardware revision before bench testing. A test source that is electrically convenient is not necessarily representative of the installed field circuit.

Do not infer suffix interchangeability from physical fit. The 3503EN2 is documented as a surface-mount successor/version of the 3503E family and was qualified for later Tricon software platforms. That does not establish unrestricted interchangeability across every legacy chassis and termination arrangement.

Triconex 3503/E/EN/EN2/EC

Module 6: Quality Assurance SOP

A surplus 3503-family input module should be tested against the actual electrical variant identified on its nameplate. The acceptance procedure should verify all 32 channels rather than relying on a module-level power-up indication.

• OEM anti-counterfeit visual inspection: Verify Triconex/Invensys identification, exact 3503-family designation, revision marking, PCB construction, connector geometry, front-panel indicators, and manufacturing identifiers against controlled references.
• Part-number and traceability check: Record the complete printed part number, including E, EN, EN2, or EC suffixes where present, along with hardware revision, serial number, and date code.
• Mechanical inspection: Examine the backplane connector, enclosure, ejector hardware, PCB, field interface, and mounting features for bent contacts, corrosion, contamination, cracks, or unauthorized modification.
• Power-on self-test (POST): Install the module in an approved Tricon test arrangement and verify normal startup and expected PASS, FAULT, ACTIVE, and channel-status indication behavior.
• Field-supply verification: Apply a controlled source appropriate to the exact 3503 revision and confirm stable module operation without abnormal current draw. Do not apply a 42.5 VDC test level solely because a secondary listing specifies that value; confirm the exact OEM electrical limits first.
• 32-channel functional test: Exercise every input channel individually at representative Off and On states using the correct AC or DC test source for the tested hardware revision.
• Threshold verification: For DC testing, verify the actual transition threshold against the approved Tricon specification for the exact variant rather than applying the generic 24 V label as the test criterion.
• Common-reference test: Verify all four eight-input groups independently and confirm that one group’s common/reference circuit does not unintentionally affect another group.
• Normally-energized circuit diagnostic test: Where testing a 3503EN2 or another enhanced variant, execute the approved transition-diagnostic test and verify detection of a controlled loss-of-input condition.
• AC-input verification: Where the installed variant is approved for AC operation, test representative 24 VAC signals with an appropriate isolated source and verify stable state detection.
• DC-input verification: Test representative 24 VDC signals with controlled rise/fall transitions and confirm correct On/Off reporting.
• Channel-indicator verification: Confirm each of the 32 channel indicators responds to the corresponding simulated input without cross-channel indication.
• Baseplate and termination verification: Confirm the input module mates correctly with the specified Tricon baseplate and termination panel and that all four common groups are mapped to the approved field wiring.
• System recognition test: Verify correct module recognition, channel addressing, diagnostics, and data exchange through the Tricon I/O architecture.
• Communication handshake verification: Confirm successful module-to-main-processor data transfer and correct reporting of all 32 input states. The 3503 family is an I/O module, not a standalone Ethernet or Modbus interface.
• Fault-diagnostic test: Apply controlled open-circuit or loss-of-signal conditions permitted by the applicable test procedure and verify the expected diagnostic behavior.
• Extended-run test: Operate representative channels continuously while monitoring input stability, diagnostic events, supply current, and abnormal temperature rise.
• Final QC record: Document exact suffix, revision, source voltage, all 32 channel results, group/common checks, diagnostic results, system recognition, extended-run observations, traceability, and packaging status.

Technical Identification Note: The inventory designation TRICONEX 3503/E/EN/EN2/EC should be treated as a 3503-family identification requiring suffix verification, rather than as a single fully normalized OEM part number. Controlled technical references identify 3503E as a 32-point 24 VAC/DC digital input module with four groups of eight commoned inputs, while 3503EN2 is documented as a surface-mount version qualified for later Tricon software platforms. A current technical listing also associates the family with 24 VAC/DC operation and 32 inputs. Verify the physical label and hardware revision before publishing a final procurement specification.
