TRICONEX 3503F | TMR 32 Point 24VAC VDC Digital Input Module

Description

• Brand: TRICONEX
• Full Model Number: 3503F
• System/Series Family: Tricon TMR safety system and Tricon CX termination architecture
• Core Function: 32-channel TMR digital input acquisition with circuit stuck-ON self-test for 24 VAC/VDC field signals
• Top 3 Hardcore Specs: 32 inputs; 24 VAC/VDC nominal; commoned in groups of 8 with stuck-ON diagnostic testing
• Stock Status: Verify current New Surplus, Factory Sealed, or Fully Tested Refurbished condition before order

Module 3: Technical Product Introduction

A digital input that remains electrically stuck ON can be difficult to distinguish from a legitimate field state unless the I/O module actively tests the input path. The TRICONEX 3503F is a 32-point TMR digital input module for 24 VAC/VDC field circuits, with inputs commoned in groups of eight and a specialized circuit stuck-ON self-test. Triconex field-termination documentation explicitly distinguishes 3503F from 3503E by this diagnostic function: both are 32-point, 24 VAC/VDC TMR input modules, while 3503F adds the circuit stuck-ON self-test feature.

The field interface remains the same basic 24 VAC/VDC class used by the 3503E family, while the diagnostic objective is different. Triconex documentation lists 32 inputs, commoned in groups of eight, and supports DC or 47–63 Hz AC signals. The module is used with the same 24 V termination ecosystem, including 9563-series termination panels and 9572-610F arrangements. The critical distinction for procurement is therefore not simply “32 DI, 24 V”; it is the stuck-ON diagnostic behavior and the associated termination configuration.

Module 4: Application Scenarios & Field Realities

• Where a maintained field contact can remain energized longer than expected, the 3503F’s circuit-level stuck-ON self-test provides a diagnostic mechanism that the standard 3503E description does not specifically provide. This is useful on discrete shutdown, permissive, and alarm circuits where a persistent ON condition can mask a wiring or input-circuit fault.
• Inside a Tricon safety cabinet with 24 VAC/VDC field circuits, all 32 inputs are commoned in groups of eight. That commoning arrangement must match the field termination design; it is not equivalent to 32 independently isolated input circuits.
• When using a 9563-810F or 9563-910F termination panel, Triconex documentation lists 3503F as a supported module. The 9563-810F uses fused 16-point commoned sections, while the 9563-910F uses 180-ohm resistor protection. Two 16-point sections are required to accommodate one 32-point module.
• During replacement of an older 3503E, verify why the original project selected the F-version. The two models share the 24 VAC/VDC, 32-point basic interface, but the 3503F’s stated diagnostic capability is specifically aimed at detecting a circuit stuck in the ON state. Treat that function as part of the application requirement, not as an optional software feature.

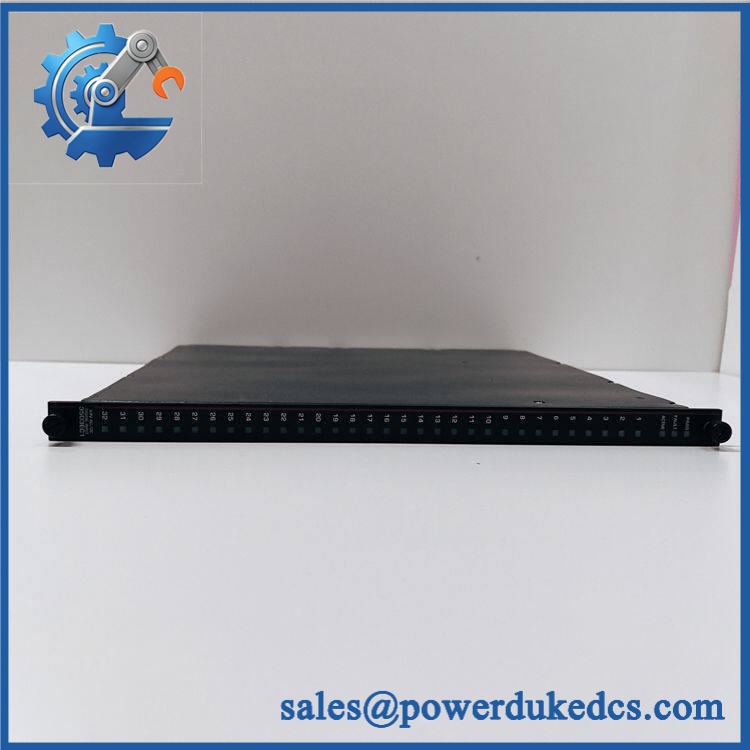

TRICONEX 3503F

Module 5: Migration, Compatibility & Installation Traps

Replacement Matrix

Exact 3503F with matching Tricon chassis and termination assembly: Drop-in Replacement
When the existing installation uses 3503F, the approved 24 V termination arrangement, compatible controller configuration, and matching field wiring, the module can generally be exchanged directly.

3503E substituted for 3503F: Software Compatible / Diagnostic Function Verification Required
Both modules are 32-point, 24 VAC/VDC, commoned-group TMR digital inputs, but 3503F is documented with the circuit stuck-ON self-test feature. A 3503E should therefore not be treated as functionally equivalent where that diagnostic requirement is part of the approved design.

3505E substituted for 3503F: Hardware Modification Required
3505E is a low-threshold 24 VDC digital-input variant. Although it shares the 32-point commoned architecture, its signal characteristics and intended field application are different from the 24 VAC/VDC 3503F.

⚠️ Field Traps (Watch Out)

Stuck-ON diagnostic trap: The defining difference between 3503F and 3503E is the circuit stuck-ON self-test feature. Do not remove that diagnostic capability during a like-for-like replacement without engineering approval.

Termination-panel trap: Triconex lists 3503F as compatible with 9563-810F, 9563-910F, and 9572-610F termination arrangements, as well as the applicable fanned-out cable architecture. The termination-panel selection affects field protection and wiring, so matching the module voltage alone is insufficient.

Common-reference trap: Inputs are commoned in groups of eight. Before installation, compare the cabinet wiring against the termination-panel schematic to ensure that the intended field common is preserved.

Module 6: Quality Assurance SOP

Pre-Shipment QA Protocol for TRICONEX 3503F

• Step 1 — Identity Verification: Confirm TRICONEX marking, 3503F model number, serial information, hardware revision, manufacturing information, and associated termination-panel identification.
• Step 2 — OEM Anti-Counterfeit Visual Inspection: Inspect labels, barcodes, PCB markings where accessible, connector geometry, mechanical keys, status indicators, front-panel legends, and evidence of unauthorized modification.
• Step 3 — Mechanical Inspection: Check the housing, card-edge connector, locking hardware, alignment keys, field connector, and enclosure for cracks, corrosion, contamination, or deformation.
• Step 4 — Test Fixture Verification: Prepare a controlled 24 VAC/VDC source and configure the fixture for the 32-point commoned-in-groups-of-eight architecture.
• Step 5 — Power-On Self-Test: Install the module in an approved Tricon test configuration and verify normal startup, module recognition, PASS/FAULT/ACTIVE status, and absence of diagnostic errors.
• Step 6 — 32-Channel Input Test: Exercise all 32 channels individually using controlled AC and DC states within the approved operating range and record channel recognition.
• Step 7 — Threshold and Timing Test: Verify representative OFF-to-ON and ON-to-OFF transitions against the approved 3503F technical specification and record response behavior.
• Step 8 — Stuck-ON Self-Test Verification: Use a controlled laboratory fault simulation to verify the module’s circuit stuck-ON diagnostic function. Do not create uncontrolled faults on a production safety circuit.
• Step 9 — Termination and Stability Test: Operate the module through representative termination hardware and monitor for false transitions, intermittent channels, diagnostic alarms, abnormal thermal behavior, or communication faults.
• Step 10 — Final QC Record: Record model, serial number, revision information, all 32 channel results, diagnostic-test results, termination configuration, visual condition, test date, and final QC disposition.

Technical Verification Note: Triconex field-termination documentation identifies 3503F as a 32-point, 24 VAC/VDC TMR digital input module, commoned in groups of eight, with a circuit stuck-ON self-test feature. The same documentation lists 3503F as compatible with 9563-810F, 9563-910F, and 9572-610F termination arrangements, while distinguishing it from 3503E primarily by the stuck-ON diagnostic capability.
