Triconex 4409 | Exact Part Identity | Compliance

Description

Unboxing & Physical Snapshot

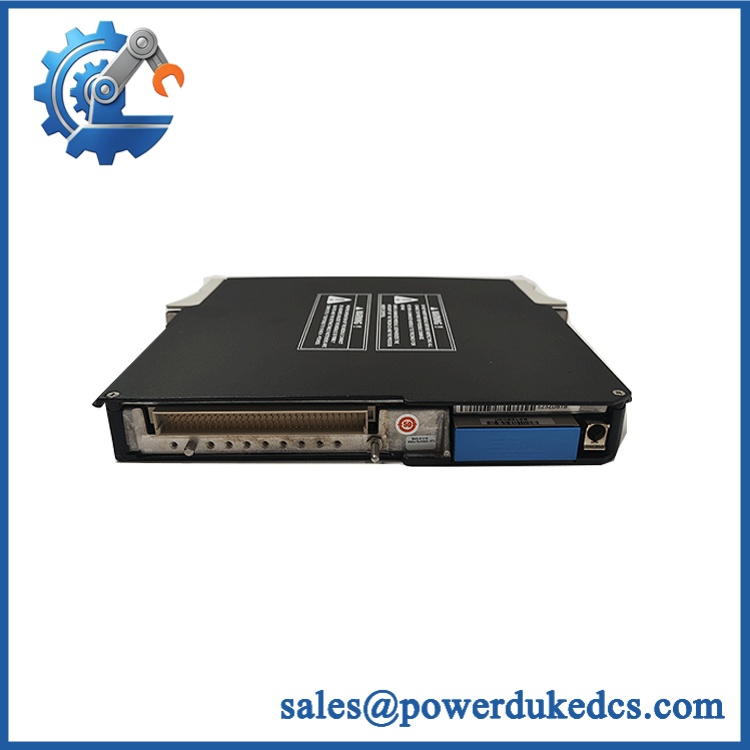

• Model & Brand: Triconex 4409, associated with the Tricon safety-instrumented-system platform.
• Physical Dimensions: Not reliably established from the four-digit identifier alone. Verify the exact hardware drawing before cabinet planning.
• Estimated Shipping Weight: Use 1–2 kg packed only as a preliminary freight estimate. Actual packaged weight should be recorded before shipment.
• What’s in the Box: Triconex 4409 module and OEM packaging/documentation where supplied. Do not assume terminal blocks, chassis hardware, cables, or configuration software are included.
• Receiving inspection: Capture the complete part number, serial number, hardware revision, firmware revision, chassis compatibility, and nameplate markings.

Product Introduction

The Triconex 4409 belongs to the Tricon fault-tolerant safety-system hardware family, where module identity is controlled as part of the overall SIS architecture. Its four-digit designation should therefore be treated as an initial identification rather than sufficient evidence of interchangeability.

Before releasing this spare to maintenance, match the complete nameplate against the installed hardware and approved system bill of material. Hardware revision, module function, firmware compatibility, chassis generation, and certified configuration can all affect whether a replacement is suitable (particularly when the module is involved in a shutdown or other safety-critical function).

Do not infer the electrical function of the 4409 from the model number alone. A safety-system spare should never be released on an assumed channel count, voltage, or signal type.

For an audit-ready asset record, retain the complete Triconex material/part number, not merely “4409.”

Global Compliance & Industry Certifications

• IEC 61508 / SIL: Triconex systems are intended for functional-safety applications; the SIL capability belongs to the validated system architecture and approved hardware/software configuration.
• IEC 61511: Process SIS applications should remain within the applicable safety lifecycle and management-of-change procedures.
• CE Mark: Verify the applicable Schneider Electric/Triconex Declaration of Conformity for the exact hardware.
• UL/cUL: Confirm product-specific certification before claiming North American certification.
• ATEX/IECEx: Do not assume hazardous-area suitability from the Triconex family designation. Verify the complete certified installation.
• Marine approvals: DNV, ABS, LR, or equivalent approval must be confirmed against the exact configuration.
• EMC: Follow the applicable Triconex grounding, shielding, segregation, and cabinet EMC requirements.

For safety equipment, certification is configuration-specific. A certified module does not independently certify the complete SIS, its application logic, field devices, power architecture, or cabinet installation.

Verify specific lot certifications with OEM.

Triconex 4409

Long-Term Storage & Asset Preservation Guide

1. Maintain ESD protection. Keep the 4409 in its original antistatic bag or equivalent ESD shielding. Protect backplane contacts and connectors from dust and oxidation.
2. Control warehouse humidity. Store the module in a clean, dry, temperature-stable environment without condensation. Keep it away from salt spray, sulfur compounds, chlorine, solvents, and conductive dust (connector contamination can become a latent failure mechanism).
3. Maintain configuration traceability. Record serial number, hardware revision, firmware revision, certificate information, and storage date. Keep these records attached to the asset’s inventory history.

Avoid repeated energized testing of a stored SIS module. If functional verification is required, use the site’s approved Triconex maintenance and proof-test procedure.

Physical Installation Prerequisites

• Chassis: Confirm the exact Tricon chassis and system generation before insertion.
• Mounting: Use the specified Tricon chassis mounting arrangement; do not assume standalone DIN-rail compatibility.
• Clearance: Maintain OEM-required clearance for cooling, wiring access, and module removal.
• Grounding: Verify protective-earth continuity and follow the Tricon cabinet grounding architecture.
• Field wiring: Check terminal assignment, channel mapping, signal type, shielding, and cable segregation against the approved drawings.
• Thermal design: Use the verified module power dissipation when calculating cabinet heat load.
• Firmware: Compare the replacement’s firmware against the approved SIS baseline before installation.
• Commissioning: Complete diagnostic checks and the site’s required safety-function validation/proof testing before returning the process to service.

Buyer’s FAQ

Q: What HS tariff code should be used for Triconex 4409?
A: Do not determine the tariff classification from “4409” alone. Establish the complete part number and technical function first, then have the importing-country customs broker validate the applicable HS/national tariff classification.

Q: What Country of Origin should be declared?
A: Declare the actual manufacturing Country of Origin (COO) supported by the product marking or Schneider Electric/Triconex documentation. The shipment origin is not automatically the manufacturing origin.

Q: Should shipping insurance be purchased?
A: It is advisable when the spare has significant replacement value or plant-critical status. Photograph the nameplate, serial number, connectors, ESD packaging, and carton condition before carrier handoff.

Q: Does a replacement Triconex 4409 contain the latest firmware?
A: Do not assume it does. Verify the installed firmware against the approved Triconex software baseline and hardware revision. A factory-sealed legacy spare may contain an earlier supported firmware release.

Asset-control note: TRICONEX 4409 is not a sufficient procurement identity by itself. Obtain a clear nameplate photograph or complete part number before approving the item as a replacement. For SIS inventory, the minimum controlled record should include full part number, hardware revision, serial number, firmware revision, and compatible Tricon platform.
