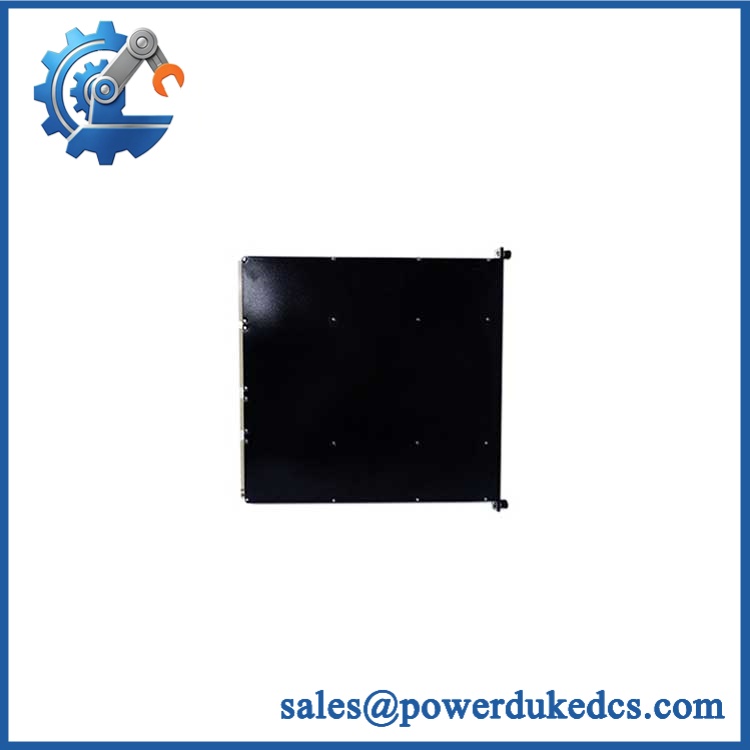

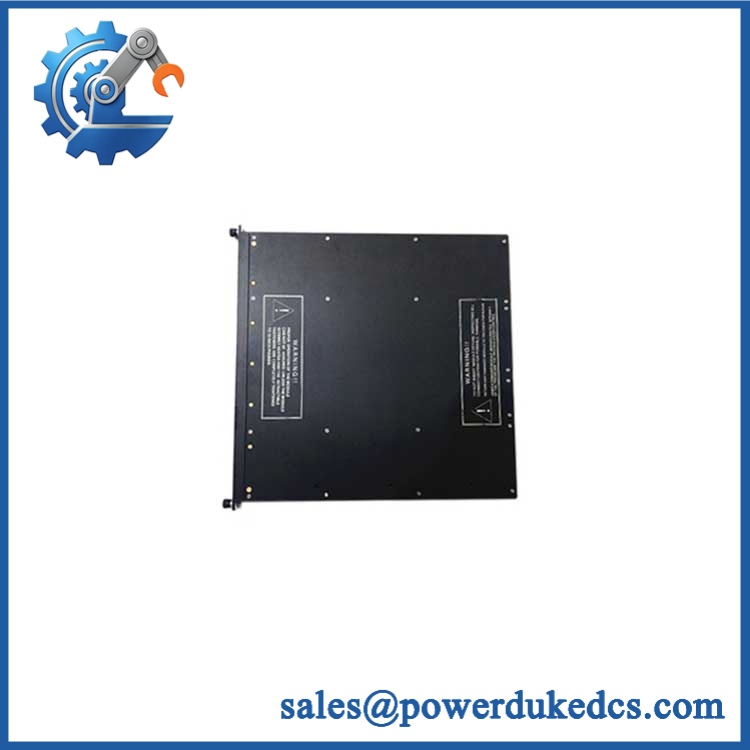

Triconex 3721 | 32-Point TMR Analog Input Module

Unboxing & Physical Snapshot

• Manufacturer: Triconex / Invensys
• Model: 3721
• Product type: TMR analog input module
• Channel count: 32 differential, DC-coupled analog inputs.
• Input range: 0–5 VDC or −5 to +5 VDC, programmable.
• Physical dimensions: Approximately 40.8 × 40.0 × 2.1 cm according to secondary-market listings; verify the actual module before freight booking.
• Unit weight: Published sources range from approximately 1.36–2.5 kg. Use the actual weighed module for the asset master and shipping documents.
• Estimated packed shipping weight: Approximately 2.5–4.0 kg, depending on ESD protection and carton construction.
• Color code: Yellow.
• What’s in the box: Triconex 3721 module; external termination panel/cable and accessories only when specifically included with the lot.
• Receiving inspection: Record model, serial number, hardware revision, date code, status indicators, connector condition, and original ESD packaging.

Product Introduction

Architecture hook: The Triconex 3721 is a Triple Modular Redundant analog-input module intended for Tricon safety-system architectures. It accepts 32 differential DC-coupled analog signals and independently processes the inputs through redundant measurement paths before the Tricon system applies its fault-tolerant processing.

This is a specialized safety-system I/O card—not a generic analog input replacement. The 3721 is documented for Tricon v10.2 and later systems, including certain low-density systems upgraded to that revision. Installation therefore requires confirmation of chassis compatibility, termination hardware, system revision, and approved application configuration.

Core Technical Specifications

Triconex 3721

The OEM-derived planning documentation specifies less than 12 W logic power, while another reproduced version lists less than 15 W. For engineering calculations, use the applicable revision-specific Tricon documentation rather than mixing values from different manuals.

The module can also process 0–20 mA signals through a 250 Ω shunt resistor, but the field termination arrangement must be checked before assuming current-input capability is wired into an existing installation.

Global Compliance & Industry Certifications

The 3721 is part of a safety-system architecture, so certification claims should be tied to the exact Tricon system and hardware revision.

• IEC 61508: Verify the applicable functional-safety certification for the Tricon system/product revision.
• IEC 61511: Relevant to the SIS lifecycle and application; do not represent the individual module as independently satisfying an entire IEC 61511 safety function.
• CE Mark: Verify the applicable Triconex/Schneider Electric declaration for the actual hardware revision.
• UL/cUL: Confirm the applicable certification record.
• FM/CSA: Verify hazardous-location certification against the exact system configuration.
• ATEX/IECEx: Do not assume approval merely because the module is used in process safety applications.
• Marine approvals: DNV/DNV GL, ABS, or other marine certifications require separate confirmation.

Functional-safety certification is important here because the module participates in a fault-tolerant safety architecture. Substituting an electrically similar analog-input card can invalidate the system’s diagnostic and voting assumptions.

Verify specific lot certifications with OEM.

Long-Term Storage & Asset Preservation Guide

Keep the 3721 in its original ESD shielding bag. The backplane connector and electronic circuitry should remain protected from static discharge, conductive dust, and mechanical shock.

Control humidity and corrosive exposure. Store the module in a clean, dry warehouse away from condensation, salt air, sulfur compounds, oil mist, and other corrosive contaminants. A practical long-term target is below 60% RH.

Preserve safety traceability. Record the serial number, hardware revision, date code, certification markings, and test documentation. For a safety-system spare, those records should remain attached to the asset throughout its warehouse lifecycle.

No periodic lithium-battery replacement should be assumed for this module without evidence of a battery-equipped revision. Do not open the electronics merely to inspect for one; maintain the factory enclosure unless the approved service procedure requires otherwise.

Triconex 3721

Physical Installation Prerequisites

• Install the 3721 only in a compatible Tricon chassis/system revision.
• The manufacturer’s documentation identifies the module for Tricon v10.2 and later systems.
• Verify the external termination panel and system cable before installation.
• The 3721 uses an external wiring/termination arrangement; third-party termination documentation specifically identifies the 3700A/3721 AI32 interface.
• Confirm the mechanical positioning key matches the intended chassis position.
• Apply ESD controls when handling the module.
• Inspect the backplane connector for bent contacts, oxidation, or contamination.
• Maintain the manufacturer’s specified chassis ventilation and clearance requirements; do not impose a generic 50 mm rule where the Tricon installation manual specifies another value.
• Verify analog signal polarity and shield/grounding arrangements before reconnection.
• Confirm whether each channel is configured for 0–5 VDC, ±5 VDC, or 0–20 mA with shunt.
• After replacement, verify PASS/FAULT/ACTIVE/FIELD indicators and system diagnostics before returning the safety function to service.
• Follow the approved Tricon maintenance procedure for online replacement where hot replacement is permitted.

Buyer’s FAQ

Q: What HS tariff code should be used for the Triconex 3721?
A: Do not classify it as a generic PLC module without technical review. The 3721 is a specialized analog-input module for a safety-control system; the final HS classification should follow its documented function and the importing country’s tariff schedule. Have the customs broker validate the code.

Q: What Country of Origin should appear on the commercial invoice?
A: Do not infer COO from the Triconex brand. A supplier listing reports USA, but secondary-market supplier data is not sufficient evidence for an auditable COO declaration. Use the actual nameplate, manufacturer documentation, or supplier Certificate of Origin for the specific unit.

Q: Which weight should be used for international freight?
A: Published listings disagree, reporting approximately 1.36 kg, 2.02 kg, and 2.5 kg. This is precisely why the actual module should be weighed before shipment. The commercial invoice should use actual gross packed weight—not a reseller’s nominal figure.

Q: Does the replacement 3721 have the latest firmware?
A: Do not assume it does. Verify the hardware revision and applicable system software baseline before installation. The 3721’s compatibility is specifically tied to the Tricon system generation, with documentation identifying installation in v10.2 and later systems.

Asset-Control Warning

TRICONEX 3721 is a 32-channel TMR analog-input module—not a digital-input module. The primary specifications are 0–5 VDC / −5 to +5 VDC, 32 differential DC-coupled channels, 10 ms update rate, and programmable 12/14-bit resolution.

For inventory release, verify the 3721 model number, hardware revision, Tricon system version, termination arrangement, certification status, and actual physical weight before treating the spare as installation-ready.
