Triconex 1600071-001 | TurboSentry | Legacy Asset

Description

Unboxing & Physical Snapshot

• Model & Brand: Triconex 1600071-001, identified by multiple parts databases as Trisen TurboSentry. One supplier describes it as an I/O alarm module with 16 digital outputs; other listings use inconsistent descriptions, so the complete nameplate should control final identification.
• Physical Dimensions: Approximately 10.2 × 7.6 × 15.2 cm (4.0 × 3.0 × 6.0 in.) according to a specific parts listing. Note that other third-party listings publish conflicting dimensions; verify against the physical unit before cabinet fabrication.
• Estimated Shipping Weight: Approximately 2.1 kg (4 lb 11.2 oz) for the listed unit. Allow additional carton/ESD packaging weight for freight planning.
• What’s in the Box: 1600071-001 TurboSentry unit and protective packaging/documentation where supplied. Do not assume sensors, cables, terminal assemblies, or accessories are included.
• Receiving inspection: Photograph the complete nameplate, serial number, revision, connector arrangement, and product markings before accepting the unit into controlled inventory.

Product Introduction

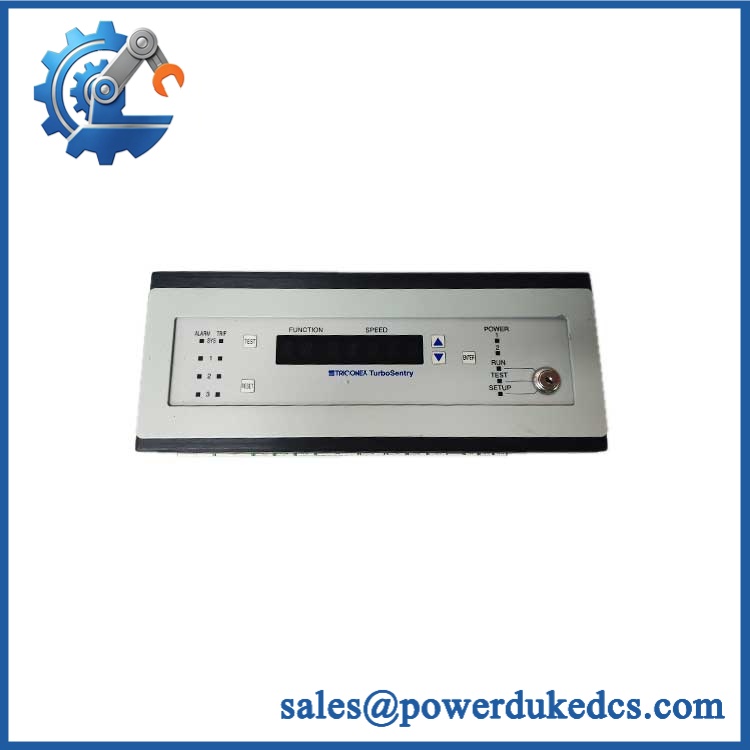

The 1600071-001 is identified in multiple independent parts listings as a Trisen TurboSentry, a Triconex product associated with turbomachinery monitoring/protection. One listing specifically describes the unit as an I/O alarm module with 16 digital outputs and 24 VDC operation.

There is significant third-party specification conflict for this part number. Some sources call it a vibration-monitoring system, while others incorrectly describe it as a generic process-control or digital-input module. Do not use those generic descriptions for an engineering replacement decision. The actual nameplate and applicable Triconex documentation should establish the installed function, electrical interfaces, and system compatibility.

Core Technical Specifications

Triconex 1600071-001

The 2.1 kg weight and 4 × 3 × 6 in. dimensions are useful logistics references because they come from a specific 1600071-001 listing. However, other listings provide contradictory dimensions and functions, so these values should not be treated as fabrication dimensions without physical verification.

Global Compliance & Industry Certifications

• IEC 61508 / SIL: Do not assign an independent SIL rating to the 1600071-001 without the applicable manufacturer certificate. A safety-related application requires validation of the complete hardware/software architecture.
• CE Mark: Verify the applicable declaration for the exact TurboSentry hardware revision.
• UL/cUL: Confirm product-specific certification before making a North American certification claim.
• ATEX/IECEx: Do not assume hazardous-area approval from the Triconex brand. Verify the complete TurboSentry installation, enclosure, associated equipment, and certificate.
• Marine approvals: DNV, ABS, LR, or equivalent approvals require exact certificate verification.
• EMC: Confirm the applicable EMC installation requirements, particularly for turbomachinery environments where vibration, electromagnetic interference, and long cable runs can affect monitoring circuits.

The safety status of a turbomachinery protection system depends on the complete sensing, logic, alarm/trip, power, and final-element architecture. A module label alone does not establish the safety integrity of the finished installation.

Verify specific lot certifications with OEM.

Long-Term Storage & Asset Preservation Guide

1. Protect the electronics and connectors. Keep the unit in ESD shielding and use connector covers where supplied. Avoid loose storage in metal bins where connector pins or mounting surfaces can be damaged.
2. Control humidity and contamination. Store indoors under dry, non-condensing conditions. Keep the TurboSentry away from oil mist, salt air, sulfur compounds, solvents, and conductive dust (turbomachinery-area contamination can be particularly aggressive).
3. Preserve configuration identity. Record the serial number, hardware revision, firmware revision, alarm/output configuration, and original documentation. For a legacy protection asset, the configuration record can be as important as the physical spare.

Do not repeatedly energize a stored protection unit merely to demonstrate that its LEDs operate. Use a documented bench-test procedure with the correct test equipment and approved configuration.

Triconex 1600071-001

Physical Installation Prerequisites

• System compatibility: Confirm that 1600071-001 is the correct TurboSentry hardware for the existing protection/monitoring system.
• Mounting: Use the applicable OEM mechanical arrangement; do not assume generic DIN-rail compatibility.
• Clearance: Provide adequate space for connector access, cable bend radius, ventilation, and module removal. Use the OEM drawing for final cabinet dimensions.
• Grounding: Establish protective and functional grounding according to the applicable Triconex/TurboSentry installation documentation.
• Signal wiring: Keep monitoring and trip circuits separated from VFD output, motor feeder, contactor, and high-current wiring.
• Shielding: Terminate cable shields according to the approved turbomachinery monitoring design rather than using an ad-hoc grounding arrangement.
• Power: Verify the actual supply requirement before energization. A third-party listing reports 24 VDC, but the exact nameplate should control.
• Commissioning: Verify each alarm/output channel against the approved cause-and-effect matrix and perform the required functional test before returning the protection system to service.

Buyer’s FAQ

Q: What HS tariff code should be used for Triconex 1600071-001?
A: Do not assign a tariff code from the part number alone. First establish whether the physical unit is the TurboSentry monitoring/alarm assembly described by the available parts evidence, then have the importing-country customs broker determine the appropriate HS/national tariff classification.

Q: What Country of Origin should be declared?
A: Some third-party listings state USA as the product origin. For customs purposes, use the COO supported by the actual product marking, manufacturer documentation, or Certificate of Origin rather than relying solely on a reseller database.

Q: Should shipping insurance be purchased?
A: Yes, when the unit is plant-critical or difficult to replace. Its listed physical weight is approximately 2.1 kg, but replacement value and production consequence—not shipping weight—should determine the insurance decision.

Q: Does a replacement 1600071-001 contain the latest firmware?
A: Do not assume it does. This is a legacy Triconex/TurboSentry item, and the firmware revision should be documented before commissioning. Match it against the approved protection-system baseline and the installed hardware revision.

Asset-control note: 1600071-001 requires enhanced identification control. Current third-party sources disagree substantially about its function, dimensions, and electrical specifications. The strongest consistent identification is Trisen TurboSentry, with one specific listing identifying it as an I/O alarm module with 16 digital outputs at 24 VDC. Until the nameplate and OEM documentation are reconciled, do not classify this item as a generi
