Description

Unboxing & Physical Snapshot

Model & Brand: Triconex MA2211-100.
Functional Identity: Available Triconex-specific records identify MA2211-100 as a CIM Media Adapter. Other reseller pages incorrectly classify the same number as an analog input, digital input, or controller module, so the physical nameplate must be treated as the final identification authority.
Physical Dimensions: Approximately 173 × 103 × 42 mm (W × H × D) according to one secondary technical listing; verify against the actual mechanical drawing before cabinet design.
Estimated Shipping Weight: Approximately 0.7 kg net according to the same secondary listing; allow approximately 1.0–1.3 kg gross for ESD protection and export packaging.
What’s in the Box: MA2211-100 adapter and protective packaging when sold as a standalone spare. Do not assume CIM modules, cables, termination hardware, power accessories, or configuration media are included.
Receiving Inspection: Photograph the complete part number, serial number, hardware revision, connector arrangement, mounting features, LEDs, and certification labels.

3. Product Introduction

Architecture Hook

The MA2211-100 is identified by multiple Triconex equipment listings as a CIM Media Adapter, placing it at the communication/interface layer rather than treating it as a conventional analog or digital I/O card. One listing specifically describes it as a media adapter used to connect CIM equipment within a Triconex safety-system architecture.

There is a significant asset-control issue here: third-party catalogs conflict sharply on the function of this part number. Some describe MA2211-100 as an 8-channel analog input module, while others call it a controller or digital input module. Do not merge these records in an ERP master. Confirm the physical label and OEM documentation before issuing the spare against a maintenance work order.

4. Core Technical Specifications

Parameter	Value
Manufacturer / Brand	Triconex
Part Number	MA2211-100
Reported Product Type	CIM Media Adapter
Application	Triconex safety/control-system communication
Reported CIM Capacity	Up to 16 CIMs
Reported Power Consumption	Approximately 20 W
Reported Operating Temperature	−40°C to +70°C
Reported Dimensions	Approximately 173 × 103 × 42 mm
Reported Weight	Approximately 0.7 kg
Mounting	Verify exact mechanical arrangement
Communication Function	CIM/media interface
Electrical Supply	Verify from nameplate/OEM documentation
Connector Configuration	Verify from physical unit
Firmware	Revision-dependent / verify
System Compatibility	Verify against installed Triconex architecture

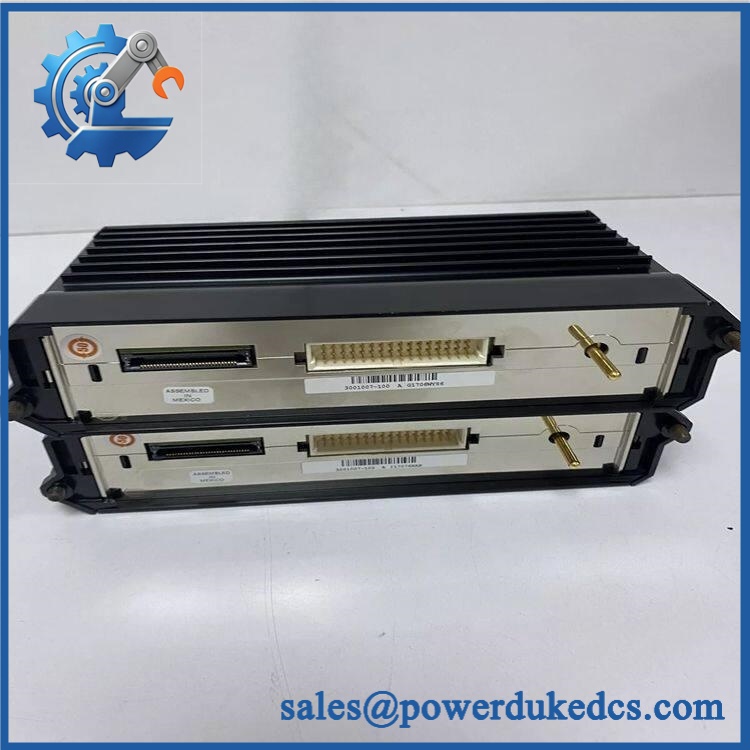

Triconex MA2211-100

The CIM Media Adapter identification and the reported capacity of up to 16 CIMs appear in secondary Triconex-specific documentation, while the 173 × 103 × 42 mm dimensions, approximately 0.7 kg weight, and 20 W power figure come from another secondary listing.

Engineering caution: Do not use the conflicting “8-channel analog input” or “controller” specifications found on reseller pages for procurement or installation. Those descriptions are inconsistent with the CIM Media Adapter identification and should be treated as unverified catalog errors unless the physical unit proves otherwise.

5. ? Global Compliance & Industry Certifications

CE Mark: Verify the applicable Triconex system declaration and the exact MA2211-100 hardware revision.
UL/cUL: Confirm certification against the applicable Triconex certification documentation. Do not infer approval from the part number.
ATEX/IECEx: Do not assume hazardous-area certification. Suitability depends on the complete certified system, enclosure, barriers/interfaces, and installation method.
Marine Approvals: DNV, ABS, or Lloyd’s Register approval must be verified against the exact system configuration before marine or offshore deployment.
Functional Safety: If the adapter forms part of a Tricon safety architecture, its presence does not independently establish the SIL capability of the complete safety instrumented function.
Configuration Control: Because public records conflict about the part’s function, an auditor should require positive identification before accepting a certificate or safety claim against this material number.
Audit Record: Retain nameplate photographs, serial number, hardware revision, supplier traceability, COO documentation, and applicable conformity certificates.

Verify specific lot certifications with OEM.

6. ? Long-Term Storage & Asset Preservation Guide

Keep the adapter in ESD shielding. Protect the PCB assembly and communication connectors from static discharge, dust, and handling contamination. The original antistatic bag should remain sealed until controlled receiving inspection.
Control humidity below approximately 60% RH. Avoid condensation and repeated temperature cycling, particularly around communication connectors and exposed contacts.
Protect the mechanical interface. Retain connector caps and original packing inserts where supplied. Do not stack heavy modules against the enclosure or connector face.
Preserve identification evidence. Keep photographs of the label, serial number, revision, and connector layout with the inventory record. Given the conflicting online descriptions of MA2211-100, this evidence has unusually high asset-management value.

7. Physical Installation Prerequisites

System Compatibility: Verify that the MA2211-100 is actually the required CIM interface for the target Triconex architecture before installation.
Mounting: Confirm the exact mounting arrangement from the applicable OEM mechanical documentation; do not assume DIN-rail mounting from third-party listings.
Clearance: Maintain adequate front, rear, and side clearance for connectors, cable bend radius, service access, and cooling.
Cooling: If the reported approximately 20 W power figure applies to the actual hardware revision, incorporate that heat load into the cabinet thermal calculation.
Grounding: Verify protective-earth and cabinet-bonding requirements before connecting the communication interface.
Cabling: Use only the cable/interface arrangement specified for the actual CIM architecture. Do not substitute cables based solely on connector appearance.
Power: Verify supply voltage and polarity from the nameplate and OEM installation documentation.
Commissioning: Confirm CIM communication, adapter status, diagnostics, connected-node recognition, and system alarms before returning the safety/control architecture to service.

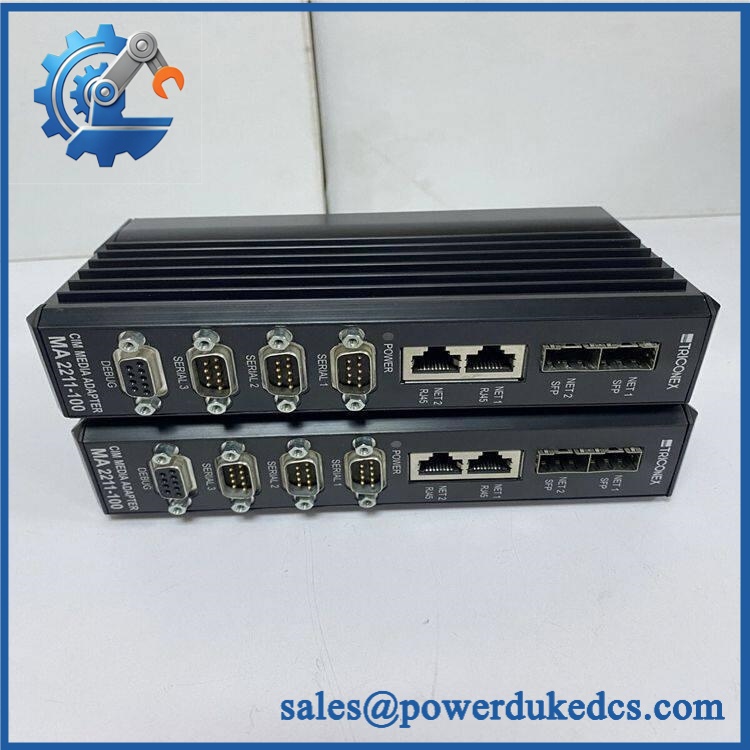

Triconex MA2211-100

8. Buyer’s FAQ

Q1. What HS tariff code should be used for MA2211-100?

Do not assign the HS classification solely from the part number. If the unit is confirmed as a CIM Media Adapter, the customs description should reflect its actual communication/interface function.

Have the customs broker validate the final tariff classification against the importing country’s tariff schedule. Do not describe it as an analog input module unless the physical/OEM documentation establishes that function.

Q2. Does Country of Origin affect customs treatment?

Yes. COO can affect duty, preferential tariff eligibility, origin declarations, and customs screening.

Do not infer COO from the supplier’s warehouse or the manufacturer’s corporate nationality. Obtain the origin from the physical product, OEM documentation, or a valid Certificate of Origin.

Q3. Should shipping insurance be purchased?

For Triconex communication hardware, insurance is worth evaluating when the replacement cost or process downtime exposure is significant. The reported 0.7 kg net weight does not reflect the operational importance of the spare.

Photograph the part number, serial number, connector interfaces, enclosure, and packaging before dispatch. Use ESD shielding plus rigid cushioning.

Q4. Does MA2211-100 include the latest firmware pre-loaded?

Do not assume it does. The available public records do not establish a universal firmware revision for this part number.

Record the hardware revision and serial number at receiving. Then verify the adapter’s firmware and communication compatibility against the target Triconex system before commissioning.

Asset-control note: Maintain TRICONEX MA2211-100 as a controlled part number, with the functional description recorded as CIM Media Adapter — pending OEM/nameplate confirmation. Public reseller data is materially inconsistent: one source identifies it as a CIM Media Adapter, while others incorrectly describe it as an analog input or controller module. For a safety-system spare, the physical nameplate and OEM documentation must take precedence over catalog aggregation.
