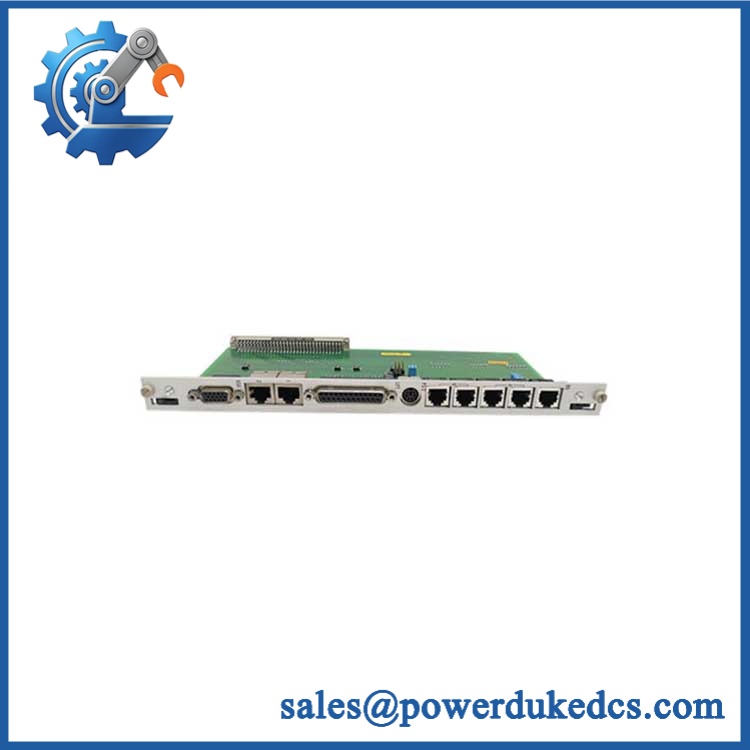

Triconex 2000418 | Controller Connector Assembly

Description

Unboxing & Physical Snapshot

• Model & Brand: Triconex 2000418. The strongest available parts evidence identifies it as a Connector Module, rather than a processor or conventional I/O card.
• Physical Dimensions: Approximately 44 × 210 × 64 mm (H × W × D), based on a published dimensional listing of 1.8 × 8.3 × 2.5 in.
• Estimated Shipping Weight: Approximately 0.1 kg / 0.22 lb for the component; allow additional weight for ESD packaging and carton.
• What’s in the Box: 2000418 connector module and protective packaging/documentation where supplied. Do not assume batteries, processor modules, terminal assemblies, or other Triconex hardware are included.
• Receiving inspection: Record the complete part number, serial/lot identification where present, connector condition, mounting hardware, and any OEM labels.

Product Introduction

The Triconex 2000418 is identified in available parts documentation as a Connector Module. Its physical role is therefore different from the processor, power-supply, or I/O modules that occupy the Tricon controller architecture. A connector assembly can appear mechanically simple, yet its pin assignment and mating hardware are critical to maintaining correct system wiring.

This distinction matters during inventory reconciliation. Several third-party listings incorrectly describe 2000418 as a digital I/O module, battery assembly, or processor-related component; those descriptions conflict with the specific connector-module listing and should not be accepted without OEM documentation. For procurement, retain a photograph of the physical item and label before classifying it as an interchangeable spare.

Core Technical Specifications

Triconex 2000418

The 0.1 kg component weight and 210 mm overall length are useful for warehouse and packaging planning, but they should not replace an OEM mechanical drawing for cabinet installation.

Global Compliance & Industry Certifications

• IEC 61508 / SIL: Triconex safety systems are used in functional-safety applications, but the connector module itself should not be described as independently SIL-rated. The safety claim belongs to the validated system architecture.
• CE Mark: Verify the applicable Schneider Electric/Triconex declaration for the complete equipment configuration.
• UL/cUL: Confirm product-specific certification where required.
• ATEX/IECEx: Do not assume hazardous-area approval for the connector module. The complete installation must satisfy the applicable hazardous-area requirements.
• Marine approvals: DNV, ABS, LR, or equivalent certification requires exact system-level verification.
• EMC: Connector installation, cable shielding, grounding, and cabinet segregation remain important to overall EMC performance.

For a connector assembly, the key compliance issue is correct electrical and mechanical integration, not simply the presence of a safety-system certification. An incorrect connector or pin assignment can defeat the intended system architecture.

Verify specific lot certifications with OEM.

Long-Term Storage & Asset Preservation Guide

1. Protect the connector contacts. Keep the 2000418 in its original ESD/protective packaging and prevent fingerprints, dust, moisture, and corrosive contaminants from reaching the mating contacts.
2. Avoid mechanical loading. The approximately 210 mm-long assembly should not be stored underneath heavy modules. Bent connector hardware or cracked mounting features may not be obvious until installation.
3. Maintain identification. Keep the original label and part-number documentation with the physical item. Because third-party listings give conflicting descriptions for 2000418, traceability is particularly important for this part.

Physical Installation Prerequisites

• System compatibility: Verify the exact Triconex chassis/system generation before installation.
• Mounting: Use the specified Triconex mounting arrangement; do not assume generic DIN-rail compatibility.
• Clearance: Allow adequate space for connector insertion/removal, cable routing, bend radius, and service access.
• Grounding: Follow the applicable Triconex cabinet grounding and bonding requirements.
• Pinout verification: Never rely on a third-party wiring diagram. Verify connector pin assignments against the approved Triconex documentation.
• Cable inspection: Check mating plugs, contacts, shielding, and cable strain relief before installation.
• Commissioning: Perform continuity and point-to-point verification before returning the associated safety system to service.

Buyer’s FAQ

Q: What HS tariff code should be used for Triconex 2000418?
A: A published supplier listing assigns 8538907080, but that classification should be treated as a reference rather than an automatic customs determination. Confirm the final HS/national tariff code with the importing-country customs broker based on the verified connector-module function.

Q: What Country of Origin should be declared?
A: One published listing identifies United States as the country of manufacture. For customs documentation, use the COO supported by the actual product marking, manufacturer documentation, or Certificate of Origin rather than relying solely on a reseller database.

Q: Should shipping insurance be purchased?
A: Consider the part’s operational replacement value rather than its low physical weight. Although the published component weight is only about 0.1 kg, connector damage during transport can make the assembly unusable.

Q: Does the 2000418 contain the latest firmware?
A: No conventional firmware should be assumed. The available evidence identifies 2000418 as a connector module, not a processor. Firmware verification applies to the associated Triconex processor/controller hardware, not normally to a passive connector assembly.

Asset-control note: There is significant third-party identification conflict surrounding Triconex 2000418. Some listings call it a battery-holder assembly, while another specific industrial parts listing identifies it as a Connector Module with dimensions of 1.8 × 8.3 × 2.5 in. For an audit-controlled inventory, do not classify 2000418 as a battery assembly, digital I/O module, or processor without a matching OEM label/drawing.
