Woodward 5466-1000 | Original Industrial Control Asset

Description

1. Woodward 5466-1000 | Original Industrial Control Asset

Unboxing & Physical Snapshot

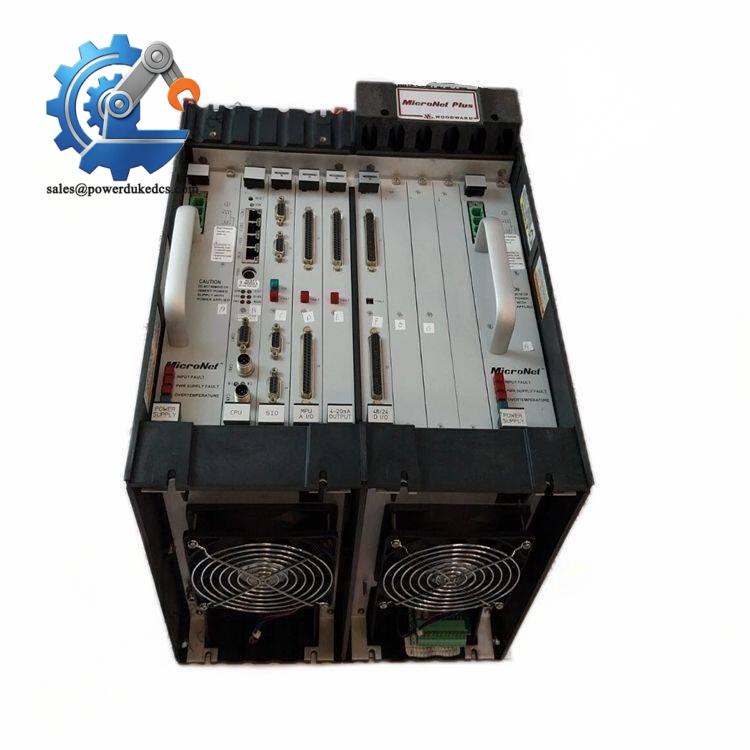

• Model & Brand: Woodward 5466-1000 MicroNet Plus Power Supply Module. This module provides 24 VDC input power conversion for MicroNet Plus digital control systems used in turbine and engine control applications.
• Product Type: MicroNet Plus two-slot power supply module.
• Series: Woodward MicroNet Digital Control System.
• Primary Application: Hydro turbine, gas turbine, steam turbine, and gas/diesel engine control cabinets.
• Input Power: 24 VDC low-voltage DC supply input.
• Physical Dimensions (Approximate W × H × D): Approximately 70 × 260 × 160 mm (2.8 × 10.2 × 6.3 in.) when installed as a MicroNet chassis module.
• Estimated Shipping Weight: Approximately 1.0–2.5 kg (2.2–5.5 lb) for the standalone module with protective packaging. Complete chassis weight is significantly higher.
• Mounting Type: Panel-mounted MicroNet Plus chassis installation; occupies two chassis slots.
• Cooling Method: Cabinet airflow through chassis ventilation.
• What’s in the Box:
  • Woodward 5466-1000 power supply module
  • Backplane connector interface
  • Module identification label
  • ESD protective packaging
  • Installation documentation when supplied

Product Introduction

The Woodward 5466-1000 is installed at the foundation of the MicroNet Plus control architecture, where stable DC power delivery determines the availability of CPU, I/O, and communication modules. Inspect the connector pins and chassis guides before installation. A damaged backplane connection can create intermittent control faults that are difficult to diagnose in operating turbine systems (especially during startup sequences).

This two-slot power supply module converts a 24 VDC input source into regulated power for MicroNet Plus controller hardware. It is used in simplex and redundant control configurations depending on the overall system design. Verify chassis type, power architecture, and replacement compatibility before installation because similar-looking MicroNet modules may have different voltage input ratings.

Core Technical Specifications

Woodward 5466-1000

Global Compliance & Industry Certifications

Expected compliance considerations for the Woodward 5466-1000 include:

• CE Mark / EMC Compliance — applicable when installed within the approved MicroNet Plus system configuration.
• UL Recognition / UL LVD Considerations — the 24 VDC input design supports industrial control applications requiring low-voltage compliance.
• CSA Certification — verify based on the complete controller assembly and product revision.
• ATEX/IECEx — this power supply module should not be treated as a standalone hazardous-area device. Hazardous-area suitability requires a complete certified control system.
• Marine Approvals (DNV GL / ABS / LR) — possible for specific MicroNet system configurations; verify the exact installation approval package.

Power supply modules are often overlooked during audits. However, they directly affect the safety availability of the entire control platform.

Verify specific lot certifications with OEM.

Long-Term Storage & Asset Preservation Guide

Store the 5466-1000 inside its original anti-static (ESD) packaging. The backplane connector and internal power electronics should remain protected from dust and humidity.

Maintain storage humidity below 60% RH. Moisture exposure can increase connector oxidation risk and reduce long-term reliability of internal electronic components.

Before installation after extended storage:

• Inspect the connector pins and card edge contacts.
• Check the module housing for corrosion or impact damage.
• Verify the correct input voltage rating before energization.
• Confirm the MicroNet chassis compatibility.
• Perform a controlled bench power check where procedures allow.

Avoid storage near battery charging areas or locations with corrosive gases.

Physical Installation Prerequisites

• Install only in the compatible Woodward MicroNet Plus chassis.
• Confirm the chassis power slot allocation before insertion.
• Ensure cabinet grounding meets plant electrical standards.
• Verify 24 VDC supply polarity before connection.
• Maintain separation between power wiring and low-level communication cables.
• Allow sufficient cabinet airflow for heat removal.
• Leave approximately 50 mm clearance around ventilation paths where practical.
• Ensure retaining hardware is properly secured.
• Remove system power before inserting or removing the module.

Buyer’s FAQ (Logistics & Compliance Focus)

Q: What HS Tariff Code is commonly used for the Woodward 5466-1000?

A: Industrial control power modules are commonly reviewed under HS 8537 or HS 8504, depending on whether customs classifies the item as control apparatus or a power conversion module. Final classification depends on destination-country customs requirements.

Q: Does Country of Origin (COO) affect importing the 5466-1000?

A: Yes. COO affects customs declarations, duty assessment, warranty tracking, and asset documentation. Ensure the invoice, packing list, and COO records match the physical product identification.

Q: Is shipping insurance recommended for this power supply module?

A: Recommended. Although the housing protects the electronics, impact damage to internal power components or connector assemblies may not be visible during receiving inspection.

Q: Does the Woodward 5466-1000 include the latest firmware pre-loaded?

A: No firmware update is normally associated with this power supply module. Compatibility depends on the MicroNet Plus chassis, CPU modules, and system configuration rather than application firmware alone.

Lifecycle Note: Manage the Woodward 5466-1000 as a controlled MicroNet infrastructure spare. Store it together with chassis information, system drawings, and power architecture records. A correct spare with incomplete documentation can still delay turbine control restoration.
