1. Woodward 9905-726 | Original Engine Speed Control

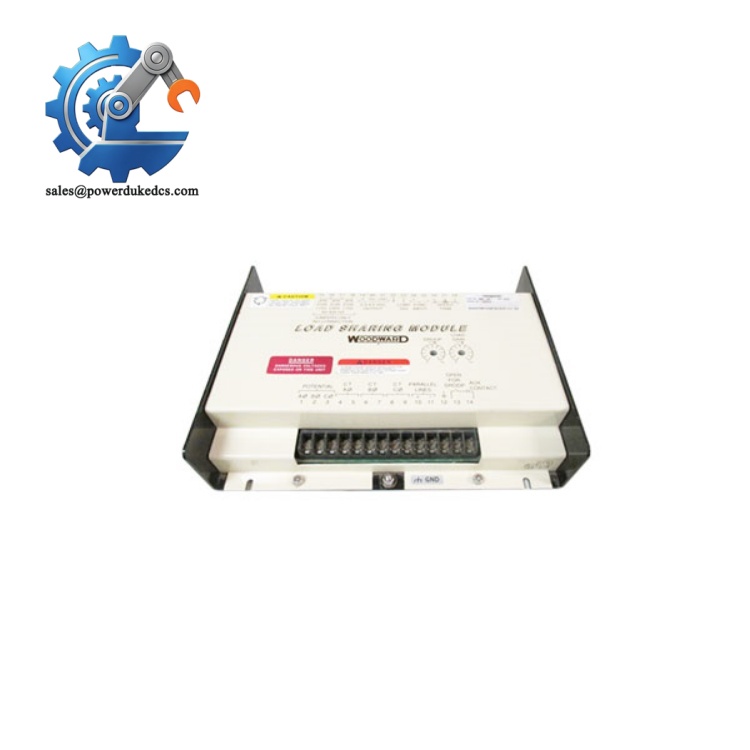

2. Unboxing & Physical Snapshot

• Model & Brand: Woodward 9905-726, associated with the 2301A Full Authority Speed Control family and identified in available references as a load-sharing/speed-control module.
• Product Type: Electronic speed/load control module.
• Typical Application: Diesel and gas engines, steam turbines, gas turbines, and generator-set control systems.
• Physical Dimensions: Exact 9905-726 dimensions should be confirmed from the nameplate/manual revision; the 2301A architecture uses a sheet-metal chassis containing a single PCB.
• Estimated Shipping Weight: Allow approximately 3.3 kg (7.3 lb) for logistics planning based on a published 9905-726 listing; packaged weight will vary.
• What’s in the Box: 9905-726 controller, terminal hardware as supplied, protective packaging, and documentation when included. Verify accessories against the purchase order.

3. Product Introduction

The 9905-726 belongs to the older Woodward electronic governor/control architecture, where the physical condition of the sheet-metal chassis, terminal strips, adjustment potentiometers, and PCB connections matters as much as the electrical specification. Keep the unit dry and protected from vibration before installation (particularly important for generator and turbine control cabinets).

Functionally, the 2301A family provides full-authority speed control, with isochronous operation and droop capability for load-sharing applications. Available technical references identify the 9905-726 specifically as a low-voltage control variant associated with a 10–40 VDC supply and a 0–200 mA actuator output, while the exact configuration should be verified from the unit’s nameplate before replacement.

4. Core Technical Specifications

Parameter	Value
Manufacturer	Woodward
Part Number	9905-726
Product Family	2301A Full Authority Speed Control
Product Type	Electronic Speed / Load Controller
Typical Applications	Diesel engines, gas engines, steam turbines, gas turbines
Control Mode	Isochronous speed control; droop for load sharing
Control Power	10–40 VDC for the low-voltage configuration
Actuator Output	0–200 mA
Speed Setting Input	4–20 mA
Speed Sensing	Magnetic pickup input
Construction	Sheet-metal chassis with single PCB
Adjustment	Front-accessible potentiometers
Installation	Industrial control cabinet
Estimated Shipping Weight	Approx. 3.3 kg
Firmware	Embedded control electronics; revision must be verified

Woodward 9905-726

The 10–40 VDC and 0–200 mA values are configuration-specific and should not be assumed for every visually similar 2301A unit. Confirm the actual nameplate and wiring documentation before energization.

5. Global Compliance & Industry Certifications

Potential compliance considerations include:

• CE Mark: Verify against the exact manufacturing revision and applicable Woodward documentation.
• UL/cUL: Do not assume certification from the 2301A family alone; confirm the marking on the individual unit or its OEM documentation.
• ATEX/IECEx: Do not treat the 9905-726 as independently hazardous-area certified without supporting documentation. Hazardous-location suitability depends on the complete installation.
• Marine approvals: Some Woodward control families have marine-approved variants, but approval must be verified for the exact part number.
• RoHS: Verify compliance by production revision and certificate.

For a governor application, certification is not merely a paperwork issue. The controller influences fuel or steam admission, so an incorrect replacement can affect overspeed protection, load response, and generator stability.

Verify specific lot certifications with OEM.

6. Long-Term Storage & Asset Preservation Guide

1. Keep the controller in ESD-safe packaging. The PCB and terminal circuitry should not be exposed unnecessarily during warehouse inspections. Seal the unit against dust and moisture after inspection.
2. Control humidity. Keep the storage environment below approximately 60% RH, with no condensation. Oxidized terminal contacts can create intermittent speed-signal or actuator-output faults after years on the shelf.
3. Inspect the adjustment hardware before deployment. The 2301A design uses accessible potentiometers and terminal connections; check for corrosion, seized adjustment shafts, contamination, and damaged terminals before applying power.

Do not casually rotate calibration potentiometers on a stored spare. Their factory or application settings may be part of the commissioned governor configuration.

7. Physical Installation Prerequisites

• Install in the designated Woodward control-panel location.
• Provide a clean, dry cabinet environment with adequate convection cooling.
• Leave approximately 50 mm of free space around ventilation and service areas where cabinet design permits.
• Connect protective grounding according to the control-panel design.
• Use properly shielded wiring for speed-sensing and analog control signals.
• Keep MPU and low-level analog wiring away from high-current switching conductors.
• Verify the actuator’s required current before connecting the 0–200 mA output.
• Confirm the speed-setting signal is compatible with the 4–20 mA input.
• Verify the supply voltage before energization; do not assume a high-voltage variant is interchangeable with the low-voltage 9905-726.
• Back up existing governor settings before removing the installed controller.

8. Buyer’s FAQ (Logistics & Compliance Focus)

Q: What HS Tariff Code should be used for the 9905-726?

A: Electronic control equipment may fall under HS 8537 or HS 8538, depending on how the customs authority classifies the complete controller versus a component. Use the product’s actual function, construction, and destination-country tariff schedule for the final declaration.

Q: Does Country of Origin matter for this Woodward spare?

A: Yes. COO can affect duty rates, preferential trade treatment, import documentation, and asset traceability. Match the commercial invoice, packing list, COO documentation, and nameplate information.

Q: Should I insure a 9905-726 shipment?

A: Yes, particularly for international transport. The sheet-metal enclosure protects the electronics but does not eliminate the risk of impact damage to the PCB, terminal assemblies, or adjustment hardware.

Q: Does the 9905-726 arrive with the latest firmware pre-loaded?

A: Treat firmware revision as unverified unless documented for the specific unit. The 9905-726 is an older electronic governor/control design, and configuration compatibility should be established from the hardware revision, nameplate, and applicable Woodward documentation before commissioning.

Asset Control Note: Record the complete part number, hardware revision, serial number, calibration/configuration data, and actuator requirements together. For an emergency governor replacement, those records are often more useful than the part number alone.
