- Woodward 5466-1050 | Original Discrete I/O Controller
Unboxing & Physical Snapshot
- Model & Brand: Woodward 5466-1050
- Product Type: MicroNet Simplex 48/24 High-Density Discrete Input/Output (HDDIO) Smart-Plus Module. This module provides discrete signal processing for Woodward MicroNet and MicroNet Plus digital control platforms.
- Primary Application:
- Turbine control systems
- Engine control applications
- Discrete field signal monitoring and switching
- MicroNet digital controller I/O expansion
- Approximate Physical Dimensions (W × H × D):
- 222 × 80 × 266 mm (reference measurement)
- Estimated Shipping Weight:
- Module weight: approximately 2.16 kg
- Typical export packaged weight: 2.8–3.5 kg
- What’s in the Box:
- Woodward 5466-1050 HDDIO Smart-Plus Module
- Front panel identification label
- Backplane connector interface
- Protective ESD packaging
- Documentation package when available
- Field Terminal Module (FTM) and cables supplied separately unless specified
Product Introduction
The Woodward 5466-1050 installs directly into a MicroNet control chassis as a high-density discrete signal interface. It processes up to 48 discrete inputs and 24 discrete outputs, allowing turbine or engine control systems to monitor switches, alarms, interlocks, and command field devices through a compact rack-mounted assembly. The module slides into the chassis card guide and mates with the motherboard connector without calibration adjustment (—which is important during emergency replacement activities where restoration time is limited).
This is a Simplex I/O module, not a TMR replacement. Verify the installed MicroNet architecture, FTM type, field voltage range, and application configuration before installation. Check the chassis slot. Check the field wiring. A module with the same electrical function may not match the required redundancy arrangement.
Core Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | Woodward |
| Model | 5466-1050 |
| Product Family | MicroNet Digital Controllers |
| Module Type | Simplex High-Density Discrete I/O Smart-Plus |
| Input Channels | 48 Discrete Inputs |
| Output Channels | 24 Discrete Outputs |
| Input Type | Discrete contact / voltage inputs |
| Output Type | Discrete control outputs |
| Input OFF Threshold | <8 VDC at 1.5 mA |
| Supported FTM Types | 48/24 Discrete FTM or 24/12 Discrete FTM configurations |
| Chassis Compatibility | Full-size or narrow MicroNet chassis |
| Power Supply | Single or redundant system power configuration |
| Calibration Requirement | No field calibration required |
| Faceplate Adjustment | No potentiometers |
| Isolation | Field signal isolation design |
| Operating Environment | Industrial turbine control cabinet |
| Storage Temperature | -40°C to +105°C (-40°F to +221°F) |
| Air Quality Rating | Pollution Degree 2 |
| Dimensions | Approx. 222 × 80 × 266 mm |
| Weight | Approx. 2.16 kg |

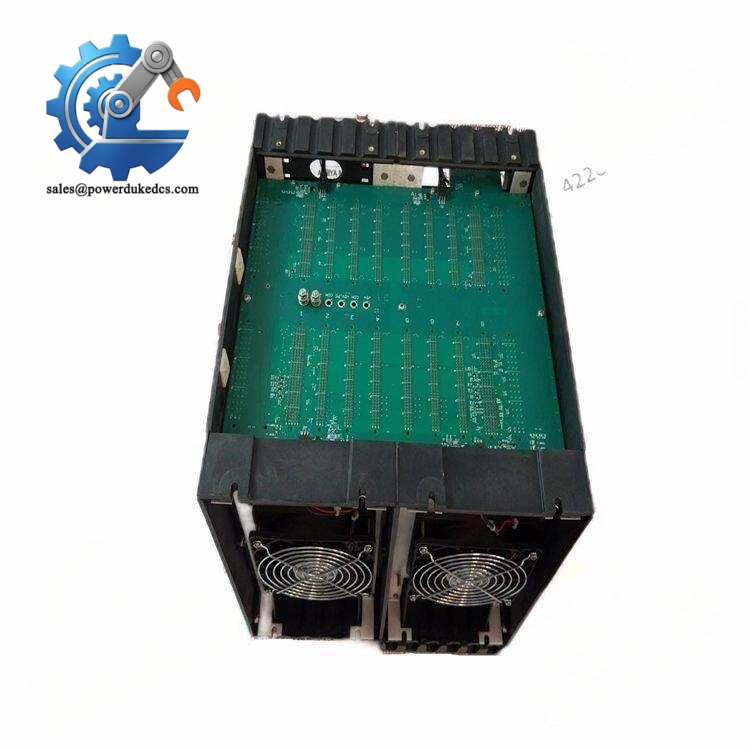

Woodward 5466-1050
? Global Compliance & Industry Certifications
Expected regulatory approvals for the Woodward 5466-1050 include:
- CE Mark
- Applies to compliant MicroNet system installations meeting applicable EMC requirements.
- UL/cUL Listed
- Certification may apply when installed within approved Woodward control system configurations.
- ATEX / IECEx
- The module should not be considered independently certified for hazardous locations. Hazardous-area suitability depends on the complete control cabinet, enclosure rating, wiring method, and approved system configuration.
- Marine Approvals (DNV GL)
- Applicable only when included in a certified marine automation package.
Discrete I/O modules directly interface with shutdown circuits, alarms, and field devices. Incorrect certification assumptions can create documentation gaps during safety reviews.
Verify specific lot certifications with OEM.
? Long-Term Storage & Asset Preservation Guide
Keep the 5466-1050 inside an original anti-static (ESD) shielding bag during warehouse storage. Protect the backplane connector, front label, and exposed card edges from contamination.
Maintain storage humidity below 60% RH. Moisture can increase connector resistance and accelerate oxidation on electrical contacts.
Inspect stored modules every 12–24 months. Record the serial number, hardware revision, and storage condition. Before installation, examine the connector pins and confirm the correct FTM arrangement (—field wiring mismatches are a common source of startup delays).
Avoid storing the module near vibration sources or areas with airborne oil mist.
Physical Installation Prerequisites
- Install the 5466-1050 only in a compatible Woodward MicroNet chassis.
- Verify the chassis slot assignment before removal or replacement.
- Confirm the connected FTM type matches the application configuration.
- Install using the card guide rails; do not force the module into position.
- Ensure the backplane connector is fully seated.
- Connect cabinet grounding according to plant electrical standards.
- Maintain adequate cabinet airflow around the module rack.
- Leave approximately 50 mm clearance around ventilation and service areas where cabinet design permits.
- Verify field voltage levels before applying power.
- Complete I/O point verification after installation.
Buyer’s FAQ (Logistics & Compliance Focus)
Q: What HS Tariff Code is commonly used for the Woodward 5466-1050?
A: Industrial control I/O modules are commonly reviewed under HS 8538 categories for parts used with electrical control equipment. The final classification depends on destination-country customs interpretation.
Q: Why does Country of Origin (COO) matter for this MicroNet I/O module?
A: COO affects customs clearance, duty evaluation, and equipment traceability. The commercial invoice, packing list, and certificate of origin should match the manufacturer and exact part number.
Q: Is shipping insurance recommended for the 5466-1050?
A: Recommended. The module contains electronic I/O circuitry and precision backplane contacts. Shock, electrostatic discharge, or moisture exposure during transport may cause failures that are not visible externally.
Q: Does the 5466-1050 include the latest firmware pre-loaded?
A: The module contains factory-installed internal logic, but it is not configured like a PLC CPU with a user application project. Verify MicroNet controller compatibility, application configuration, and installed module revision before commissioning.
