1. Woodward 8440-1715 | Original Generator Control Asset

2. Unboxing & Physical Snapshot

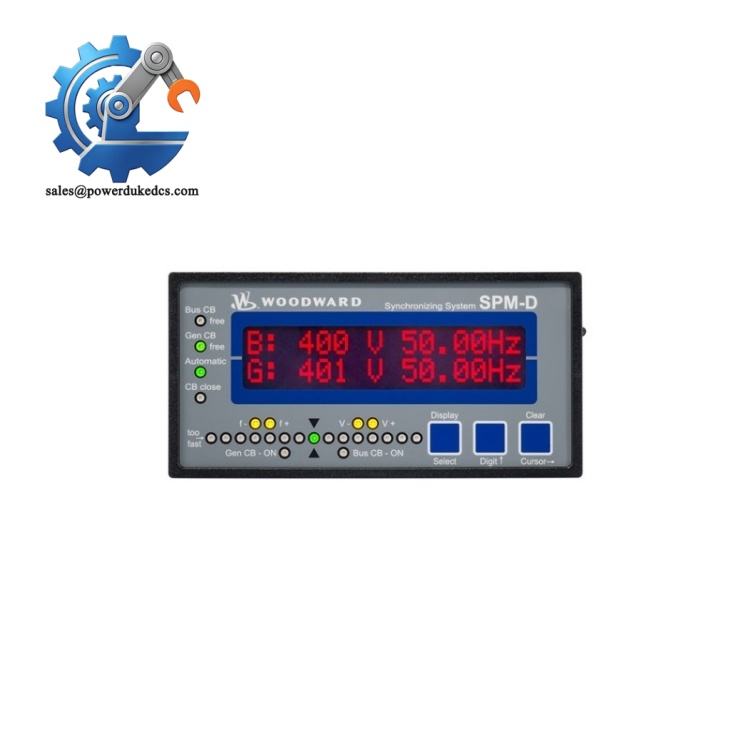

• Model & Brand: Woodward 8440-1715 SPM-D11/LSXR Synchronizer. This microprocessor-based synchronizer is designed for single-phase or three-phase generator applications, providing automatic synchronization, frequency matching, voltage matching, and load-sharing functions.
• Product Type: Generator Synchronizer / Load Sharing Control Module.
• Series: Woodward SPM-D11/LSXR.
• Primary Application: Generator paralleling systems, breaker synchronization, power factor control, and isochronous load sharing.
• Physical Dimensions (Approximate W × H × D): 144 × 72 × 122 mm (5.67 × 2.83 × 4.80 in.).
• Estimated Shipping Weight: Approximately 0.8–1.2 kg (1.8–2.6 lb) including protective packaging.
• Mounting Style: Panel/front mounting with plug-in screw terminals.
• What’s in the Box:
  • Woodward 8440-1715 SPM-D11/LSXR synchronizer
  • Plug-in terminal connectors
  • Front display assembly
  • Protective anti-static packaging
  • Installation documentation when supplied

3. Product Introduction

The Woodward 8440-1715 is installed directly into generator control panels where synchronization accuracy, signal integrity, and cabinet wiring quality determine safe breaker closing performance. Mounting clearance and grounding must be verified before energization. Inspect the terminal blocks carefully (loose connections can create incorrect voltage or frequency measurements during generator synchronization).

This SPM-D11/LSXR unit combines automatic synchronizing, load sharing, and generator protection functions within a compact microprocessor-based controller. It supports one or three-phase generator applications and can perform frequency control, voltage matching, and phase matching before breaker closure. Verify the existing configuration parameters before replacement because site-specific generator settings directly affect operation.

4. Core Technical Specifications

Parameter	Value
Manufacturer	Woodward
Model Number	8440-1715
Series	SPM-D11/LSXR
Product Type	Synchronizer / Load Share Controller
Application	Generator synchronization and load sharing
Generator Compatibility	Single-phase and three-phase AC generators
Power Supply	12/24 VDC
Power Consumption	≤10 W
Display	Two-line LCD display
Configuration Method	Front panel or PC configuration
Communication Interface	Configuration interface (PC connection dependent)
Output Type	Relay outputs / bias outputs
Control Functions	Frequency matching, voltage matching, phase matching
Protection Functions	Over/undervoltage, over/underfrequency, reverse/reduced power
Mounting	Panel mount
Terminal Connection	Plug-in screw terminals
Operating Temperature	Application dependent
Dimensions	144 × 72 × 122 mm
Weight	Approx. 0.8–1.2 kg

Woodward 8440-1715

5. Global Compliance & Industry Certifications

Expected compliance considerations for the Woodward 8440-1715 include:

• CE Mark — confirms compliance with applicable European industrial equipment directives.
• UL/cUL Listed — this model family is identified with UL/cUL recognition for applicable installations.
• RoHS Compliance — verify according to manufacturing revision and documentation.
• ATEX/IECEx — not a standalone hazardous-area certified device; installation requires a complete certified system if used in hazardous locations.
• Marine approvals (DNV GL) — applicable only when supplied as part of a certified marine generator control package.

For generator synchronization equipment, certification review must include the complete control cabinet, breaker interface, protection scheme, and wiring design.

Verify specific lot certifications with OEM.

6. Long-Term Storage & Asset Preservation Guide

Store the 8440-1715 in its original anti-static (ESD) packaging. Protect the terminal connectors because oxidation at contact points can create inaccurate sensing signals during commissioning.

Maintain warehouse humidity below 60% RH. Long-term exposure to moisture can affect PCB coatings, connector contacts, and display components.

Before installation:

• Inspect the enclosure and LCD display window.
• Check terminal blocks for corrosion or mechanical damage.
• Verify stored configuration parameters.
• Confirm firmware and hardware revision compatibility.
• Perform controlled power-up testing before connection to generator equipment.

Avoid storing near vibration sources, chemical vapors, or areas with condensation risk.

7. Physical Installation Prerequisites

• Install inside a clean generator control cabinet.
• Mount securely in the designated panel cutout.
• Connect protective earth according to plant standards.
• Maintain separation between measurement wiring and high-current breaker wiring.
• Verify voltage transformer and current transformer connections before startup.
• Tighten terminal connections according to approved procedures.
• Maintain cabinet airflow for heat dissipation.
• Leave approximately 50 mm clearance around cabinet ventilation areas where practical.
• Confirm breaker control wiring before synchronization testing.
• Verify parameter backup before replacing an existing unit.

8. Buyer’s FAQ (Logistics & Compliance Focus)

Q: What HS Tariff Code is commonly used for the Woodward 8440-1715?

A: Generator control and synchronization devices are commonly reviewed under HS 8537 for electrical control apparatus. Final classification depends on customs interpretation and destination-country requirements.

Q: Does Country of Origin (COO) affect importing the Woodward 8440-1715?

A: Yes. COO affects customs clearance, duty treatment, warranty traceability, and asset records. Ensure the invoice, packing list, and product label information remain consistent.

Q: Is shipping insurance recommended for this synchronizer?

A: Recommended. The unit contains electronic measurement circuits, LCD components, and terminal assemblies. Shock or moisture exposure during transportation can cause failures that appear only during commissioning.

Q: Does the Woodward 8440-1715 include the latest firmware pre-loaded?

A: The controller contains embedded firmware, but the installed revision depends on the manufacturing batch and previous service history. Verify firmware compatibility and stored generator parameters before installation.

Lifecycle Note: The Woodward 8440-1715 should be managed as a controlled generator protection spare. Preserve configuration files, parameter records, and hardware revision details with the unit to reduce restoration time during emergency replacement.
