- Woodward 5466-257 | Traceable Industrial I/O Module
2. Unboxing & Physical Snapshot
- Model & Brand: Woodward 5466-257
- Product Type: TMR High Density Analog I/O Module (24/8)
- Series: Woodward MicroNet TMR Control System
- Application: Analog signal acquisition and output module used in MicroNet TMR turbine control systems, including critical turbine, compressor, and power-generation applications. Woodward documentation lists 5466-257 as a TMR High Density Analog I/O (24/8) module for 5009FT systems when used.
- Analog Input Channels: 24 channels
- Analog Output Channels: 8 channels
- Architecture: Triple Modular Redundant (TMR)
- Mounting Style: MicroNet chassis plug-in module
- Approximate Physical Dimensions (W × H × D):
- Approx. 152 × 51 × 203 mm
- Estimated Shipping Weight: Approx. 0.7–1.0 kg including protective packaging.
- What’s in the Box:
- Woodward 5466-257 TMR High Density Analog I/O module
- Front panel assembly
- Backplane interface connector
- ESD protective packaging
- Identification label
- Documentation when supplied with controlled inventory
Asset note: Confirm the associated Field Terminal Module (FTM), cable assembly, and MicroNet software revision before replacement. The 5466-257 belongs to a specific TMR I/O architecture.
3. Product Introduction
The Woodward 5466-257 installs into the MicroNet TMR chassis as a high-density analog measurement and control interface. It transfers field analog signals into the redundant control processors while maintaining the architecture required for turbine and prime mover protection applications. (This module is typically maintained as a controlled spare because an I/O failure can affect process measurements used by the control logic.)
Treat this module as a safety-related control component, not a standard signal card. Inspect the front-panel hardware, card guides, retaining screws, and connector surfaces before installation. The analog channels depend on correct FTM selection, wiring, grounding, and scaling parameters; a hardware swap without configuration verification can produce incorrect field readings.
4. Core Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | Woodward |
| Model Number | 5466-257 |
| Product Family | MicroNet TMR |
| Module Type | TMR High Density Analog I/O |
| I/O Configuration | 24 Analog Inputs / 8 Analog Outputs |
| System Architecture | Triple Modular Redundant |
| Main Function | Analog signal measurement and output control |
| Input Channels | 24 |
| Output Channels | 8 |
| Input Type | Application dependent analog signals |
| Output Type | Analog current outputs |
| Mounting Interface | MicroNet chassis slot |
| Field Interface | High Density Analog FTM |
| Cable Connection | High-density analog cable interface |
| Processor | Dedicated module electronics |
| Memory | Internal module configuration memory |
| Firmware | Factory-installed module firmware |
| Cooling Method | Chassis airflow |
| Installation Environment | Industrial control cabinet |
| Typical Applications | Turbine, compressor, generator control |

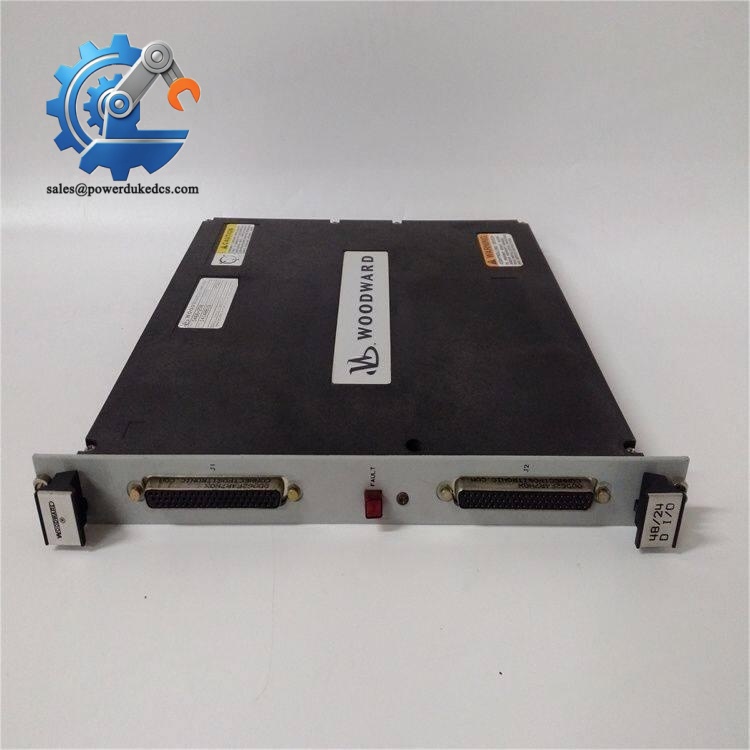

Woodward 5466-257
5. Global Compliance & Industry Certifications
Expected compliance considerations for the Woodward 5466-257 include:
- CE Mark
- UL/cUL considerations through approved MicroNet system configurations
- Industrial EMC compliance
- IEC 61508 / SIL-related system compliance when installed within an approved safety architecture
- ATEX/IECEx: Verify complete system approval before hazardous-area installation
- Marine approvals: Applicable only when included within approved marine control packages
The safety significance of TMR hardware comes from the complete redundant control architecture. The module itself is one part of the certified arrangement; enclosure design, wiring methods, software version, and system configuration also affect approval status.
Verify specific lot certifications with OEM.
6. Long-Term Storage & Asset Preservation Guide
- Keep the 5466-257 inside the original anti-static ESD shielding bag until installation. Protect the edge connector contacts from oxidation and contamination.
- Maintain warehouse humidity below 60% RH to reduce corrosion risk on PCB surfaces and connector plating.
- Store the module in a clean cabinet away from vibration, dust, and chemical vapors.
Check the connector condition.
For TMR spare inventory, record the serial number, firmware revision, associated FTM part number, cable type, and application software version. Years later, this information prevents incorrect substitutions during emergency maintenance.
7. Physical Installation Prerequisites
- Install only in a compatible Woodward MicroNet TMR chassis.
- Verify the assigned chassis slot before insertion.
- Inspect card guides, retaining screws, and motherboard connectors.
- Ensure chassis cooling fans are operational.
- Use the correct high-density analog cables and FTM assemblies.
- Maintain cabinet grounding according to system installation requirements.
- Separate analog signal wiring from high-current switching cables.
- Leave approximately 50 mm clearance around cabinet airflow paths where practical.
- Verify channel scaling and application parameters before returning the turbine control system to operation.
8. Buyer’s FAQ (Logistics & Compliance Focus)
Q: What HS Tariff Code is commonly reviewed for the Woodward 5466-257?
A: Industrial automation I/O modules are commonly reviewed under HS 8537.10 for electrical control apparatus. Final classification depends on destination-country customs interpretation and declared function.
Q: Why does Country of Origin (COO) documentation matter for this module?
A: COO supports customs clearance, maintenance traceability, and controlled spare-part records. The COO should match the commercial invoice, packing list, and module identification information.
Q: Is shipping insurance recommended for the 5466-257?
A: Yes. The module contains precision analog electronics and backplane connectors. Use ESD protection, moisture barriers, and rigid packaging to reduce transit damage risk.
Q: Does the Woodward 5466-257 include the latest firmware pre-loaded?
A: The module contains factory firmware, but compatibility depends on the MicroNet TMR application revision and system configuration. Verify software compatibility before installation.
