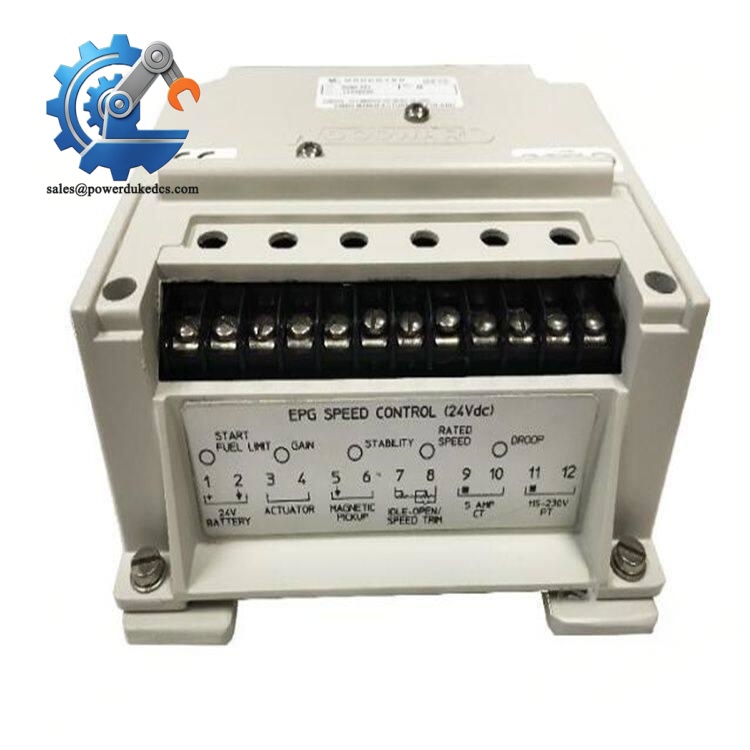

1. Woodward 8290-191 | Traceable EPG Speed Control Unit

2. Unboxing & Physical Snapshot

• Model & Brand: Woodward 8290-191
• Product Type: Electrically Powered Governor (EPG) Speed Control Unit with Droop Control
• Series: Woodward EPG 1712/1724 and 512/524 compatible controller family
• Application: Electronic engine speed control module used for diesel engines and prime mover applications. The unit regulates engine speed through actuator control and supports droop operation for load-sharing applications.
• Operating Voltage: 24 VDC nominal system supply (20–32 VDC operating range).
• Control Function: Speed governing, actuator command output, droop compensation, dual dynamics selection.
• Approximate Physical Dimensions (W × H × D):
  • Estimated: 200 × 130 × 60 mm
  • Actual dimensions depend on mounting bracket and connector configuration.
• Estimated Shipping Weight: Approximately 0.8–1.0 kg including protective packaging. Some supplier listings report approximately 0.77 kg unit weight.
• What’s in the Box:
  • Woodward 8290-191 EPG speed control unit
  • Terminal connector assembly (configuration dependent)
  • Mounting accessories when supplied
  • Product identification label
  • Anti-static protective packaging
  • Documentation when supplied with controlled inventory

3. Product Introduction

The Woodward 8290-191 mounts within the engine control system as the electronic governor controller between speed sensing devices and the fuel actuator assembly. It receives engine speed feedback, processes the control signal, and commands the actuator to maintain the required operating speed. (This hardware is typically installed in generator sets, industrial engines, and mechanical drive applications where stable speed regulation is required.)

Treat this controller as a precision engine management asset. Inspect the terminal connections, enclosure, adjustment controls, and mounting points before installation. Incorrect wiring, poor grounding, or incompatible actuator selection can create speed instability that appears to be a controller fault. The 8290-191 requires matching actuator and system configuration verification before replacement.

4. Core Technical Specifications

Parameter	Value
Manufacturer	Woodward
Model Number	8290-191
Product Family	Electrically Powered Governor (EPG)
Product Type	Diesel Engine Speed Controller
Control Mode	Droop Speed Control
Supply Voltage	24 VDC nominal
Operating Voltage Range	20–32 VDC
Power Consumption	Approximately 95 W maximum
Compatible Actuators	Woodward 1712, 1724, 512, 524 series
Speed Signal Input	Magnetic pickup input
Actuator Output	Proportional actuator drive output
Load Sharing Capability	Supported with accessories
Dynamics Selection	Dual dynamics
Start Fuel Limit	Supported
Operating Temperature	-40°C to +75°C range (application dependent)
Mounting Method	Panel mounting
Processor	Embedded control electronics
Memory	Internal calibration/configuration storage
Firmware	Factory-installed controller firmware

Woodward 8290-191

5. Global Compliance & Industry Certifications

Expected compliance considerations for the Woodward 8290-191 include:

• CE Mark
• Industrial EMC compliance
• UL/cUL considerations depending on complete engine control system approval
• ATEX/IECEx: Not typically applicable for the standalone controller unless installed within a certified hazardous-area engine package.
• Marine approvals: May apply when installed within approved marine propulsion or generator control systems.

CE compliance is important for engine governor equipment because the controller operates alongside inductive loads, actuators, and electrical switching devices that can introduce electromagnetic interference.

Verify specific lot certifications with OEM.

6. Long-Term Storage & Asset Preservation Guide

• Keep the 8290-191 inside the original anti-static ESD shielding bag until installation. Protect terminal pins and adjustment components from contamination.
• Maintain warehouse humidity below 60% RH to reduce oxidation risk on connectors and internal circuit assemblies.
• Store the controller in a dry cabinet away from vibration, fuel vapors, and corrosive chemicals.

Check the date code.

For long-term spare management, record the serial number, actuator compatibility, calibration settings, and firmware revision. Engine governor replacements often require configuration matching rather than simple hardware exchange.

7. Physical Installation Prerequisites

• Install the controller in a protected engine control cabinet or enclosure.
• Mount on a rigid surface with sufficient vibration isolation.
• Connect protective grounding according to engine control system requirements.
• Verify actuator wiring polarity and load requirements before power-up.
• Keep magnetic pickup wiring separated from high-current starter and alternator cables.
• Maintain cabinet airflow and leave approximately 50 mm clearance around ventilation areas where practical.
• Confirm battery voltage stability before commissioning.
• Verify droop settings and actuator compatibility before engine operation.

8. Buyer’s FAQ (Logistics & Compliance Focus)

Q: What HS Tariff Code is commonly reviewed for the Woodward 8290-191?
A: Engine control modules are commonly evaluated under HS 8537.10 for electrical control apparatus or related controller classifications. Final classification depends on customs interpretation and destination-country requirements.

Q: Why does Country of Origin (COO) documentation matter for this EPG controller?
A: COO supports customs clearance, generator maintenance records, and asset traceability. The COO should match the commercial invoice, packing list, and product identification records.

Q: Is shipping insurance recommended for the 8290-191?
A: Yes. The controller contains electronic circuits, calibration components, and connector assemblies that can be affected by impact, moisture, or improper handling. Use ESD packaging and declared-value freight coverage.

Q: Does the Woodward 8290-191 include the latest firmware pre-loaded?
A: The controller contains factory firmware, but the exact revision depends on production history. Confirm compatibility with the engine actuator, magnetic pickup system, and existing governor configuration before installation.
