1. Woodward 9907-018 | Original 2301A Generator Control Spare

2. Unboxing & Physical Snapshot

• Brand & Model: Woodward 9907-018
• Product Family: Woodward 2301A Series Load Sharing and Speed Controls.
• Product Type: Forward-Acting Electronic Speed Control Unit.
• Primary Function: Provides electronic speed regulation and load-sharing control for diesel engines, gas engines, and turbine-driven generator systems.
• Control Mode: Forward-acting governor control with single actuator support.
• Operating Voltage: 20–40 VDC low-voltage supply.
• Actuator Output: 0–200 mA current output.
• Approximate Physical Dimensions (W × H × D):
  387 × 181 × 64 mm (15.25 × 7.125 × 2.5 in).
• Estimated Shipping Weight: Approximately 1.5–1.8 kg depending on packaging.
• Mounting Style: Panel-mounted metal chassis enclosure.
• Mechanical Features:
  • Sheet-metal controller housing
  • Front adjustment access points
  • Terminal wiring interface
  • Internal single PCB assembly
  • Mounting flange points
• Cooling Method: Natural convection inside closed industrial control cabinets.
• Cable Requirement: Shielded twisted-pair wiring recommended for signal connections.
• Handling Requirements:
  • Protect terminal screws from impact.
  • Keep the enclosure dry during storage.
  • Avoid static discharge when accessing internal electronics.
• What’s in the Box:
  • Woodward 9907-018 speed control unit
  • Protective packaging
  • Installation documentation when supplied

3. Product Introduction

The Woodward 9907-018 is installed as a dedicated speed and load-sharing controller within generator and prime mover control systems. It belongs to the 2301A series, providing speed regulation through actuator current control and supporting multi-unit generator applications (which is critical where stable frequency and load distribution must be maintained).

This controller should be treated as a precision governor asset. Inspect the terminal block, chassis condition, adjustment settings, and identification label before installation. Check the date code. Long-term storage without proper environmental control can affect electronic components and calibration stability.

4. Core Technical Specifications

Parameter	Value
Manufacturer	Woodward
Model Number	9907-018
Product Series	2301A
Module Type	Electronic Load Sharing & Speed Control
Application	Diesel / Gas Engine / Turbine Control
Control Action	Forward Acting
Supply Voltage	20–40 VDC
Actuator Current Output	0–200 mA
Power Consumption	≤15 W
Load Sharing Function	Supported
Speed Range	Switch selectable
Speed Sensor Input	Magnetic pickup compatible
Optional Deceleration Ramp	Not included
Enclosure Material	Metal chassis
Mounting Method	Panel mounting
Cooling	Natural convection
Storage Temperature	-40°C to +85°C
Dimensions	387 × 181 × 64 mm
Weight	Approx. 1.5–1.8 kg

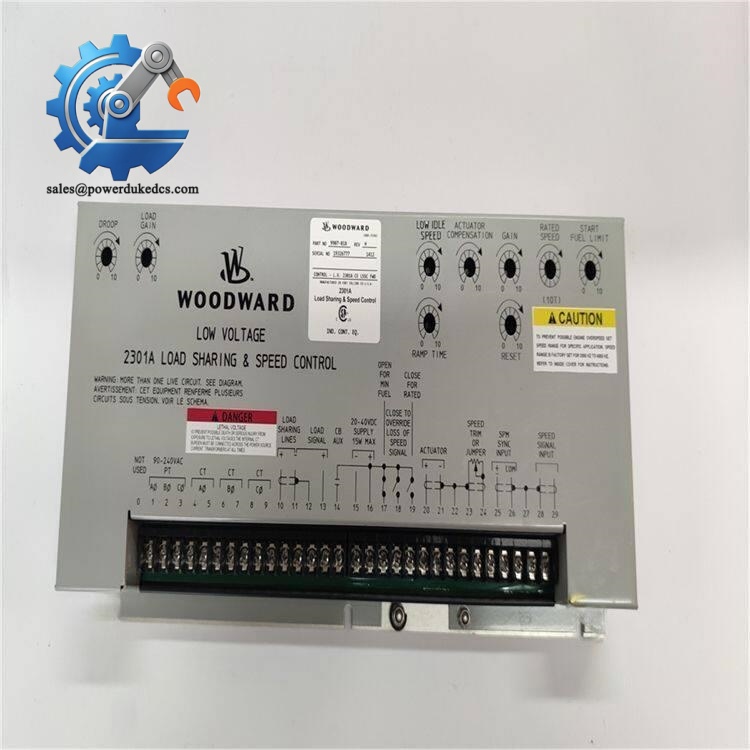

Woodward 9907-018

5. Global Compliance & Industry Certifications

Expected regulatory approvals and compliance considerations for the Woodward 9907-018 include:

• CE Mark — indicates compliance with applicable EMC and safety requirements for the product family.
• CSA Certification — applicable for approved installations in North American industrial environments.
• UL/cUL Considerations — verify exact unit marking and installation configuration before claiming certification.
• ATEX/IECEx Considerations — this controller is not automatically hazardous-area certified; hazardous-location use requires approved enclosure and system-level certification.
• Marine Approvals (DNV GL) — require confirmation for shipboard generator applications.

Certification verification is important for governor controllers because incorrect control hardware selection can affect rotating equipment protection and operational safety.

Verify specific lot certifications with OEM.

6. Long-Term Storage & Asset Preservation Guide

• Keep the 9907-018 inside protective packaging with an ESD-safe inner bag where possible. Internal PCB assemblies should not be exposed unnecessarily.
• Maintain storage humidity below 60% RH. Moisture can affect terminal contacts, PCB insulation, and adjustment components.
• Store the controller in a clean cabinet away from vibration, oil mist, and corrosive chemicals.
• Record the serial number, hardware revision, and calibration history before adding the unit to spare inventory.
• Before commissioning after extended storage, verify actuator compatibility and perform operational calibration checks.

7. Physical Installation Prerequisites

• Install the 9907-018 on a rigid control panel surface.
• Ensure sufficient clearance around the metal chassis for heat dissipation.
• Maintain approximately 50 mm clearance around the controller enclosure where cabinet layout allows.
• Use shielded twisted-pair cables for speed sensing and signal wiring.
• Connect cabinet grounding according to site electrical standards.
• Verify the 20–40 VDC supply polarity before energizing.
• Confirm actuator current rating matches the controller output.
• Check speed sensor wiring and frequency range before startup.
• Perform governor tuning and calibration after replacement.

8. Buyer’s FAQ (Logistics & Compliance Focus)

Q: What HS Tariff Code is commonly used for Woodward 9907-018?

A: Industrial electronic control units are commonly reviewed under HS 8537 classifications for electrical control apparatus. Some suppliers declare related control components under HS 85389091, but final classification depends on customs interpretation and the importing country.

Q: Why does Country of Origin (COO) matter for this Woodward controller?

A: COO affects customs clearance, duty calculation, supplier documentation, and equipment traceability. The declared origin should match the commercial invoice, packing list, and certificate of origin when required.

Q: Should shipping insurance be arranged for the 9907-018?

A: Recommended. The unit contains electronic control circuitry, adjustment components, and terminal assemblies. Shock, moisture, or vibration damage may not be visible during receiving inspection.

Q: Does the Woodward 9907-018 include the latest firmware pre-loaded?

A: This is an electronic governor controller rather than a modern programmable PLC module. Compatibility depends mainly on hardware configuration, actuator type, speed range selection, and calibration settings rather than firmware loading.
