ABB DSTYW121 3BSE007836R1 | Voltage Transformer Unit

Description

• Brand: ABB
• Full Model Number: DSTYW121 3BSE007836R1
• System/Series Family: ABB Advant OCS / Advant Controller 110/160
• One-Sentence Core Function: Voltage transformer unit used within ABB legacy control-system power and voltage-conversion architecture
• Top 3 Hardcore Specs: 220 VDC input reference; compact 14.0 × 12.7 × 3.2 cm package; approximately 0.5 kg
• Stock Status: New Surplus / Fully Tested Refurbished subject to actual inventory inspection

Module 3: Commercial-Technical Deep Dive

A failed voltage-conversion unit can look like a controller problem because downstream electronics may simply lose the expected supply or voltage reference. The ABB DSTYW121, part number 3BSE007836R1, is identified in multiple industrial references as a DSTY W121 Voltage Transformer Unit associated with the ABB Advant OCS and Advant Controller 110/160 product families. Published listings give a physical size of approximately 14.0 × 12.7 × 3.2 cm and a weight around 0.5 kg, making it a relatively compact replacement item for legacy ABB control cabinets.

The main procurement advantage is preserving the existing cabinet architecture instead of redesigning the associated power or voltage-conversion section. One technical listing identifies a 220 VDC input reference, while other available sources confirm the unit’s role and part-number identity but do not provide a consistently documented detailed electrical specification. That distinction matters. Technically, the safest replacement decision is based on the original nameplate, cabinet schematic, and exact ABB part number rather than relying on generic “voltage transformer” specifications from a secondary listing.

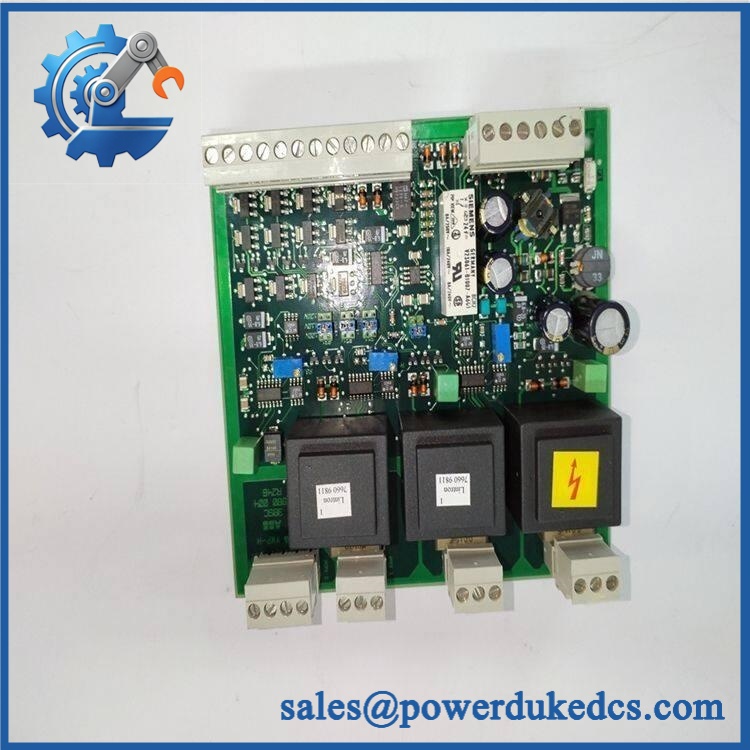

ABB DSTYW121 3BSE007836R1

Module 4: Compatibility & Installation Traps

Migration/Compatibility

• Replacement status: Configuration-specific ABB DSTY W121 Voltage Transformer Unit
• Application family: ABB Advant OCS / Advant Controller 110/160 references
• Logic rewrite: Not normally required; this is a power/voltage-conversion hardware component rather than a programmable controller.
• Firmware flash: Not applicable under normal replacement conditions.
• Drop-in status: Potentially direct only when the complete DSTYW121 / 3BSE007836R1 identification, terminal arrangement, electrical ratings, and cabinet wiring match the installed unit.
• Exchange identification: Some industrial references also associate the unit with EXC3BSE007836R1. Verify the actual nameplate before treating an exchange unit as equivalent.

⚠️ Field Traps (Watch Out)

• Input-voltage assumption: Do not treat every DSTYW121 listing as proof of a universal input/output specification. Published secondary data varies; verify the actual electrical rating from the original unit and approved ABB documentation before energizing.
• Terminal identification: Photograph every wire and terminal position before removal. A voltage-conversion module can be mechanically interchangeable while still being electrically miswired.
• Stored energy: Isolate the complete cabinet supply before servicing. A nominally low-power control module does not make the surrounding DC bus safe.
• Nameplate matching: The full 3BSE007836R1 number should be confirmed; “DSTY W121” alone is insufficient for a controlled replacement.

Module 5: Quality Assurance SOP

Before shipment, the ABB DSTYW121 3BSE007836R1 should pass a component-level QA sequence:

1. OEM anti-counterfeit visual inspection — verify ABB markings, full part number, label quality, terminal arrangement, enclosure geometry, and board/component construction.
2. Mechanical inspection — check mounting points, terminals, connectors, housing condition, and visible PCB areas for impact, corrosion, contamination, or unauthorized rework.
3. Nameplate verification — record DSTYW121 and 3BSE007836R1 independently; confirm that both identifiers correspond to the same unit.
4. Continuity and insulation checks — perform the applicable bench electrical checks before controlled energization.
5. Controlled power-up — apply the correct laboratory test source based on the verified unit rating and monitor startup behavior.
6. Input/output voltage verification — measure the applicable input and output points against the approved technical reference for the exact part revision.
7. Load test — apply a controlled representative load and monitor voltage stability and temperature rise.
8. Protection/status verification — verify available diagnostic or status indications under normal and controlled fault conditions.
9. Functional integration check — where a compatible ABB test assembly is available, confirm that the unit supplies the expected downstream voltage within the system test configuration.
10. Final QC record — document catalog number, revision/date information where available, measured input/output values, test duration, photographs, and packaging condition.

For a voltage transformer unit, a no-load voltage reading is not enough. Output stability under controlled load is the more useful acceptance criterion.

Module 6: CRO-Driven Buyer FAQ

1. Is ABB 3BSE007836R1 obsolete, and how do I verify authenticity?

The part is associated with ABB’s legacy Advant OCS / Advant Controller 110/160 ecosystem and is currently referenced by multiple industrial automation sources as the DSTY W121 Voltage Transformer Unit. For procurement, verify the full 3BSE007836R1 designation, physical nameplate, connector arrangement, and condition. Do not rely on the family name alone.

2. Can I hot-swap the ?

Do not assume hot-swap capability. This is a power/voltage-conversion component. Isolate the relevant DC and AC sources, verify absence of hazardous voltage, and follow the site’s LOTO procedure before removal.

3. Will replacing the require reprogramming the controller?

Normally no. The unit is not the application CPU or logic controller. After replacement, however, verify the expected downstream voltage and confirm that the associated ABB control hardware returns to normal status before restoring the process to automatic operation.

4. What are the exact electrical specifications?

Published secondary sources are not fully consistent on detailed input/output ratings. One reference lists 220 VDC as an input reference, while another gives broader application-oriented specifications without establishing a definitive rating for every revision. For a production replacement, use the original nameplate, cabinet drawing, and ABB documentation for the exact 3BSE007836R1 revision rather than an unverified web value.

5. What warranty and technical support are available?

Warranty duration should be stated according to the actual inventory condition, such as new surplus or tested refurbished. Technical support should cover exact part-number verification, electrical compatibility review, terminal identification, and documented bench-test results. Live cabinet modification and energized service work remain the responsibility of qualified site personnel.
