ABB GDC806A0101 3BHE028761R0101 | Genuine OEM ABB Spare

Description

Module 2: The 10-Second Procurement Snapshot

• Brand: ABB
• Full Model Number: GDC806A0101 / 3BHE028761R0101
• Lifecycle Status: Legacy / Spare Part
• Core Function: Drive crowbar and protection circuit
• Top 3 Technical Specs: Drive protection PCB; GDC806A0101 assembly; 3BHE028761R0101 part number
• Stock & Condition: New Surplus / Tested inventory; physical stock confirmation required

Module 3: Supply Chain & Technical Deep Dive

When a drive protection board fails, replacing the exact PCB is often preferable to changing the complete drive assembly. The GDC806A0101 / 3BHE028761R0101 is identified in available industrial automation records as an ABB drive crowbar circuit board. The crowbar circuit is associated with protection of the drive DC link against abnormal overvoltage conditions. Available listings also cross-reference the assembly with GDC806A102, so the complete drive configuration should be checked before procurement.

For TCO, the important point is scope: this is a protection-board spare, not a generic PLC processor. One source records a board weight of approximately 165 g, while another identifies the same part number as an ABB industrial computer accessory, showing why third-party catalog descriptions should not be treated as authoritative technical specifications. The exact crowbar trigger characteristics, electrical limits, and compatible drive type should be verified against the ABB drive manual for the installed system.

Module 4: Migration, Compatibility & Field Traps

Replacement Matrix

⚠️ Field Trap 1: Verify the Complete Drive Assembly

Do not order this board solely because the existing PCB looks similar.

Record:

• Drive model
• Drive power rating
• Existing board part number
• Board revision
• Connector arrangement
• Installed drive firmware where applicable
• DC-link configuration

Available records associate the part with GDC806A102, but this cross-reference should be verified against the actual drive documentation.

⚠️ Field Trap 2: DC-Link Voltage

A crowbar circuit is connected to a high-energy drive circuit.

Fully isolate the drive before removing the PCB.

Do not rely only on the main disconnect. Follow the drive manufacturer’s discharge procedure and measure the DC link before touching the board.

⚠️ Field Trap 3: Do Not Bench-Test the Protection Circuit Improperly

This is not an ordinary low-voltage I/O board.

Do not apply an arbitrary test voltage to the crowbar circuit. The trigger threshold and associated switching components must be tested using an approved drive test procedure or suitable engineering test fixture.

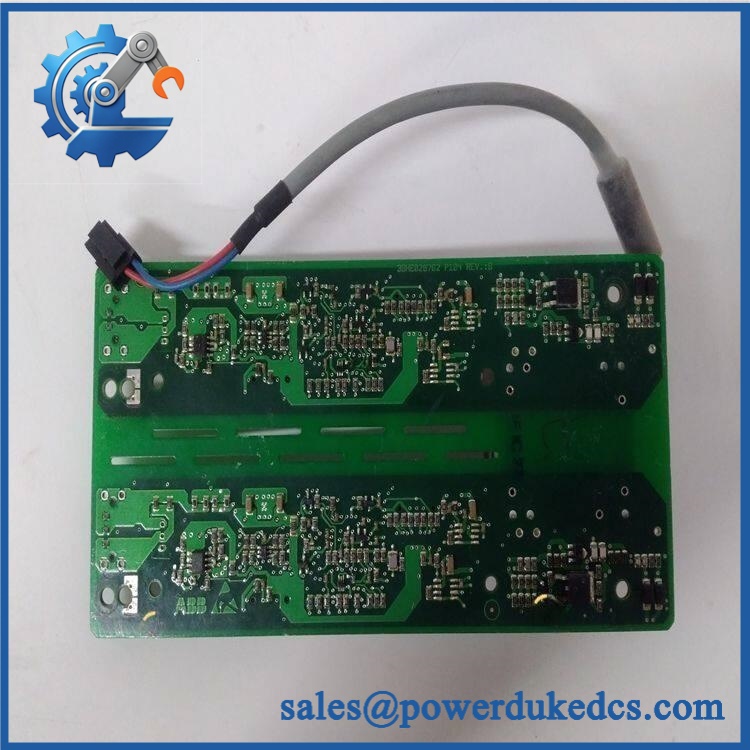

ABB GDC806A0101 3BHE028761R0101

Module 5: Quality Assurance & Testing SOP

1. OEM Identification Check

• Verify ABB identification.
• Confirm GDC806A0101 marking.
• Confirm 3BHE028761R0101.
• Record serial number where available.
• Photograph the PCB label.
• Record hardware revision.
• Compare connector layout with the customer’s original board.

2. Physical Inspection

Inspect for:

• Burn marks
• Cracked components
• Discolored PCB areas
• Corrosion
• Oxidation
• Damaged connectors
• Bent pins
• Missing components
• Solder rework
• Mechanical damage

Pay special attention to high-energy switching components and PCB traces.

3. Electrical Inspection

Before functional testing:

• Check visible component condition.
• Check for obvious short circuits.
• Verify connector continuity where applicable.
• Inspect protective components.
• Compare critical component positions with the reference board.

Do not perform a high-voltage test without the applicable ABB procedure.

4. Drive-Level Functional Test

Where the correct compatible ABB drive test environment is available:

1. Install the board according to the drive service procedure.
2. Verify all connections.
3. Power the drive under controlled conditions.
4. Monitor DC-link behavior.
5. Check drive diagnostics.
6. Confirm normal startup.
7. Run the drive under an approved load condition.
8. Record abnormal protection events.

A simple continuity test does not prove crowbar protection performance.

5. Configuration Verification

Record:

• Board revision
• Drive model
• Drive firmware, where applicable
• Connector configuration
• Associated drive assembly
• Test fixture or drive used for validation

Keep these records with the unit’s Test Report.

6. Final QC

• Test Report completed
• Serial number recorded
• PCB photographs archived
• Electrical inspection documented
• Drive-level test documented where available
• QC approval completed
• ESD packaging applied
• Protective cushioning installed
• Shipping carton sealed

Test photographs and available Test Reports can be provided for procurement review.

Module 6: Procurement-Driven FAQ

1. Is ABB GDC806A0101 / 3BHE028761R0101 in stock?

Physical inventory should be confirmed against the complete part number before the PO is released.

For an urgent drive repair, provide the existing board photograph and drive model. This helps verify the correct spare before dispatch.

2. How do you verify the condition of a surplus board?

Inspection should cover the PCB, connectors, high-energy components, solder joints, labels, and signs of previous repair.

For tested inventory, request actual-unit photographs, serial-number information, and the Test Report corresponding to the supplied board.

3. What warranty should procurement request?

The quotation should clearly state the warranty period, functional coverage, return authorization process, and inspection requirements.

For a drive protection PCB, the test scope should also be stated. A visual inspection and a drive-level functional test are not the same thing.

4. Can this board replace GDC806A102?

Available third-party technical records cross-reference 3BHE028761R0101 with GDC806A102, but that does not by itself establish universal interchangeability.

Verify the exact drive model, board revision, connector layout, and ABB documentation before installation.

5. What information should I send for an urgent replacement quote?

Provide:

• GDC806A0101
• 3BHE028761R0101
• Drive model and rating
• Existing PCB nameplate photo
• PCB front and rear photographs
• Board revision
• Quantity required
• Required delivery date

For this type of spare, the drive model plus a clear PCB photograph is the most useful combination. It reduces the risk of ordering a similar-looking protection board for a different drive configuration.
