ABB LDSTA-01 Genuine Spare Board With Fast Dispatch

Description

Module 2: The 10-Second Procurement Snapshot

• Brand: ABB
• Full Model Number: LDSTA-01
• Related Part Number: 3BHB007441P0001
• Lifecycle Status: Legacy / availability dependent
• Core Function: Inverter motor control and gate-drive processing
• Product Type: Inverter control / driver board
• Top Technical Specs: DTC/FOC motor control; PWM generation; drive communication and protection functions
• Application: ABB ACS/ACQ drive systems; exact drive compatibility must be verified
• Stock & Condition: New Surplus; stock confirmation required before PO

Available technical listings identify LDSTA-01 with part number 3BHB007441P0001 and describe it as an inverter control CPU/driver board. ABB-related product references also associate LDSTA-01 with the 63940143B designation, so the complete physical nameplate should be checked before purchase.

Module 3: Supply Chain & Technical Deep Dive

A failed drive control board can stop an entire motor train even when the power section is still healthy. LDSTA-01 is a legacy ABB board, so sourcing pressure usually comes from identification and lead-time risk rather than normal replenishment demand. Current technical references describe it as an inverter control CPU/driver board used with ABB ACS/ACQ drive equipment.

From a TCO perspective, an exact replacement can be preferable to redesigning the drive control architecture. The board handles motor-control logic, PWM generation, communications, and protection functions according to available technical descriptions. Some supplier pages also associate it with ACS800 and ACS880 systems, but that should not be treated as blanket compatibility. A one-unit buffer stock is sensible when the associated drive is production-critical and replacement lead time is uncertain.

Module 4: Migration, Compatibility & Field Traps

Replacement Matrix

⚠️ Field Traps: Watch Out

Firmware mismatch: Do not assume a replacement board with the same front label has identical firmware. Record the installed revision before removal. If the replacement revision differs, confirm compatibility with the specific drive firmware and parameter set.

Part-number ambiguity: Public listings associate LDSTA-01 with both 3BHB007441P0001 and 63940143B. These references appear in different supply records, so purchasing should rely on the physical label and the drive’s existing BOM—not a shortened web description.

ESD damage: Handle the board in an antistatic area. Keep it inside its ESD packaging until the installation point is ready.

Do not substitute by appearance. A similar ABB drive board can have different firmware, connectors, or control functions.

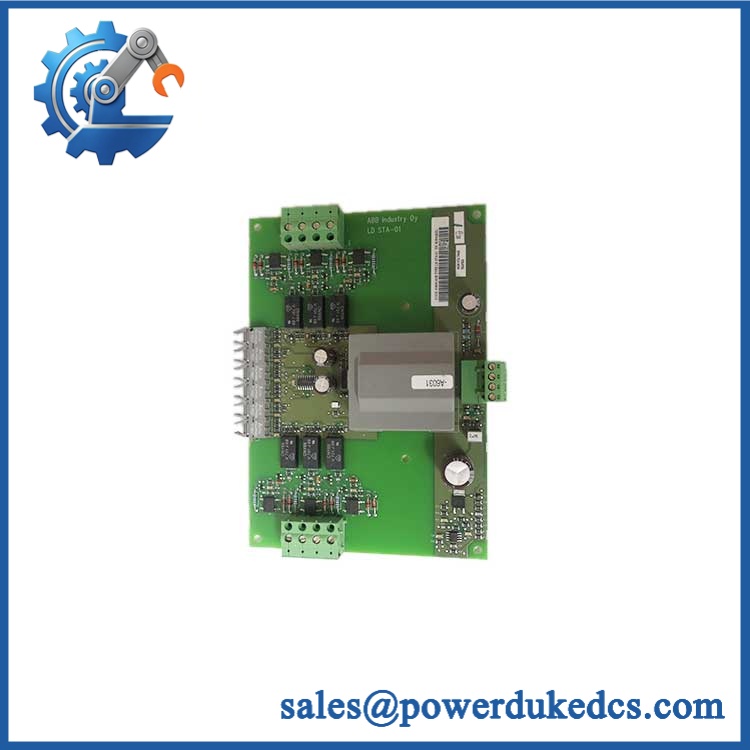

ABB LDSTA-01

Module 5: Quality Assurance & Testing SOP

Before shipment, treat the board as an engineering component rather than a box to be visually inspected.

1. Incoming Identification

• Verify ABB marking and complete part number.
• Photograph the nameplate and serial/lot information.
• Check PCB condition.
• Inspect connectors for bent pins or oxidation.
• Check for corrosion, burn marks, cracked components, or previous repair work.
• Compare the board revision with the customer’s requested specification.

2. OEM Authenticity Inspection

• Inspect ABB labels and markings.
• Check label quality, font consistency, and manufacturing markings.
• Compare PCB layout and component placement with known reference photographs.
• Review available traceability documents.
• Record discrepancies before the unit enters saleable inventory.

3. Power-On Self-Test

Using an appropriate ABB drive test environment:

• Apply the specified supply voltage.
• Observe startup behavior.
• Check available RUN / ERR / diagnostic LEDs.
• Confirm processor initialization.
• Verify that no unexpected hardware fault is reported.

The exact LED interpretation must follow the applicable ABB drive documentation.

4. Functional Test

Where the correct test setup is available:

• Verify drive-controller recognition.
• Test control-board communication.
• Check parameter access.
• Verify PWM/control outputs under controlled conditions.
• Check relevant digital and analog signals.
• Monitor processor and board behavior during operation.

I/O load testing should only be performed on interfaces actually present on the specific board. Do not apply a generic PLC I/O test procedure to an inverter control board.

5. Extended Run Check

Where the test system permits:

• Run the board continuously under a controlled drive load.
• Monitor abnormal temperature rise.
• Check communication stability.
• Record diagnostic status.
• Document test duration and results.

A Test Report should include the part number, serial number, test date, test environment, firmware revision, and measured results.

6. Final QC

• QC inspector signs the inspection record.
• Board is placed in ESD-safe packaging.
• Connector protection is installed where appropriate.
• Shock-absorbing packaging is added.
• QC label and inspection date are attached.

Test photographs or video can be supplied when available.

Module 6: Procurement-Driven FAQ

1. Is the ABB genuinely in stock, and when is the shipping cutoff?

Stock is a physical-inventory question and should be confirmed against the actual unit before a purchase order is released. For urgent drive recovery, request confirmation of part number, serial/lot number, condition, test status, and same-day dispatch cutoff in writing.

2. How do you verify the condition of a legacy or surplus ?

The inspection should include nameplate verification, PCB visual inspection, connector inspection, OEM marking review, and functional testing where a suitable drive test setup is available. New surplus should be clearly separated from tested refurbished stock.

3. What warranty and return protection should I request?

For a critical control board, request a written warranty period and a clear defective-unit procedure before payment. The commercial terms should specify the inspection period, evidence required for a failure claim, return shipping responsibility, and replacement or refund process.

4. Could firmware compatibility cause problems?

Yes. The same hardware designation does not by itself prove firmware compatibility. Record the existing drive firmware and control-board revision, then compare them with the replacement before commissioning.

5. Is a direct replacement for every ABB ACS drive?

No. Available references associate the board with ABB ACS/ACQ equipment, including ACS800/ACS880 references in some technical listings, but compatibility must be checked against the exact drive model, hardware revision, firmware, connectors, and control architecture.
