Description
Module 2: The 10-Second Procurement Snapshot
- Brand: ABB
- Full Model Number: PFCL201C-10kN 3BSE027070R10
- Product Family: PFEA / Tension Electronics
- Lifecycle Status: Legacy / availability dependent
- Core Function: Measures and controls web tension
- Product Type: Tension Measurement Unit
- Top 3 Technical Specs: 10 kN measuring range; 24 VDC supply; ABB PFEA tension measurement architecture
- Application: Web handling, strip processing, paper, film, foil, and converting equipment
- Stock & Condition: New Surplus; physical stock confirmation required
Module 3: Supply Chain & Technical Deep Dive
A failed tension measurement unit can create an expensive production problem long before the machine actually stops. Incorrect tension feedback can cause web breaks, wrinkles, winding defects, or unstable material handling. The PFCL201C-10kN 3BSE027070R10 belongs to ABB’s tension-measurement product family and is intended for applications where accurate load-cell feedback is required for process control.
For TCO planning, the important number is the 10 kN measuring range. That capacity needs to match the installed load cells and the actual mechanical tension range; a higher-rated replacement is not automatically a suitable substitute. The exact excitation, signal characteristics, calibration parameters, output configuration, and environmental limits should be checked against the applicable ABB documentation before purchase. For a production line with long replacement lead times, one tested spare can be a reasonable buffer stock level.
Module 4: Migration, Compatibility & Field Traps
Replacement Matrix
| Replacement Scenario | Assessment | Required Action |
|---|---|---|
| Same PFCL201C-10kN / 3BSE027070R10 | Drop-in Replacement Candidate | Match complete part number and hardware revision |
| Same unit with different configuration | Software / Parameter Check | Restore correct calibration and setup values |
| Different PFCL/PFEA measuring range | Not Automatically Compatible | Match load-cell rating and application |
| Different tension electronics family | Hardware Modification May Be Required | Engineering review before substitution |
⚠️ Field Traps: Watch Out
Calibration is critical: A replacement tension unit may power up normally while still giving incorrect process readings. Record the existing calibration and configuration parameters before removal.
10 kN does not mean every 10 kN load-cell system is interchangeable. Check the load-cell type, rated capacity, excitation, wiring, and signal configuration.
Zero/tare settings: Record the zero reference before shutdown. After replacement, verify the unloaded signal before returning the machine to production.
Cable shielding: Tension measurement is sensitive to electrical noise. Preserve the existing shield and grounding arrangement unless the ABB wiring documentation specifies otherwise.
Mechanical overload: A load cell can be damaged even when the electronics remain functional. If the original unit failed after a web break or mechanical shock, inspect the load cells and mechanical structure before installing the spare.

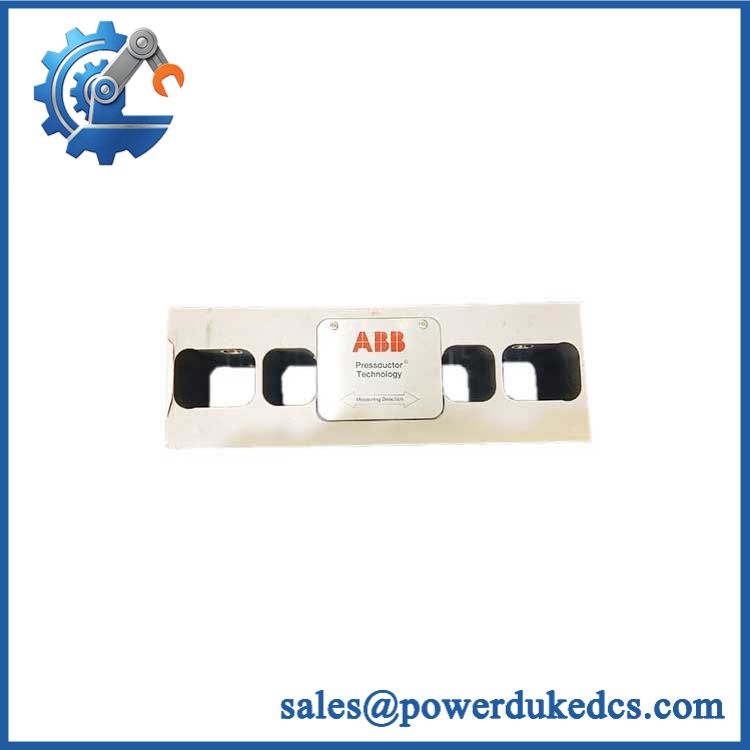

ABB PFCL201C-10kN
Module 5: Quality Assurance & Testing SOP
1. Incoming Inspection
- Verify ABB identification.
- Confirm PFCL201C-10kN marking.
- Confirm 3BSE027070R10 part number.
- Record serial and revision information.
- Inspect connectors and terminals.
- Check enclosure and PCB condition.
- Inspect for corrosion, impact damage, or repair evidence.
2. OEM Authenticity Inspection
- Inspect ABB labels and markings.
- Compare the housing and PCB configuration with an approved reference.
- Verify connector locations.
- Check model and rating information.
- Photograph the nameplate.
- Record available traceability information.
3. Power-On Self-Test
Using a compatible ABB tension-control test environment:
- Apply the manufacturer’s specified supply.
- Check startup behavior.
- Observe available status indicators.
- Confirm normal initialization.
- Monitor supply behavior.
- Record diagnostic information.
The actual supply voltage and terminal assignment should be verified from the applicable ABB manual before testing.
4. Measurement & Signal Testing
A suitable test setup should verify:
- Zero-load measurement.
- Simulated load response.
- Signal stability.
- Full-scale response where equipment permits.
- Analog output behavior where applicable.
- Calibration parameter retention.
- Communication with the associated control system.
For a 10 kN unit, the test fixture should be capable of generating a controlled reference signal across the required measurement range.
5. Extended Run Test
Where the test system permits:
- Run the unit continuously.
- Monitor measurement stability.
- Check for signal drift.
- Monitor temperature.
- Verify communication stability.
- Record zero and span behavior.
The Test Report should include the part number, serial number, test range, calibration values, test date, equipment used, and measured results.
6. Final QC & Packaging
- QC inspection signed.
- ESD-safe packaging applied.
- Connectors protected.
- Shock protection added.
- QC label attached.
- Calibration/test documentation retained.
Test photographs or video can be provided when available.

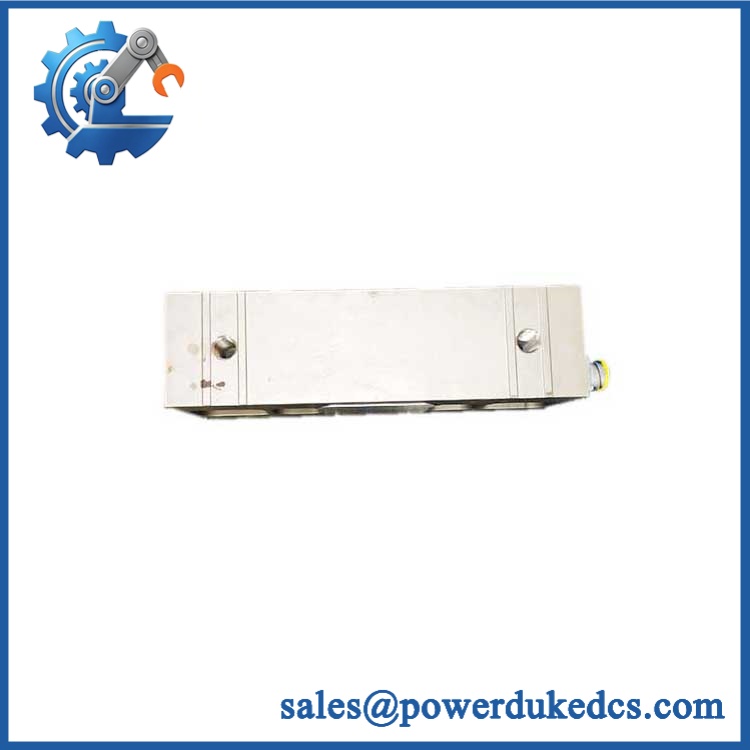

ABB PFCL201C-10kN
Module 6: Procurement-Driven FAQ
1. Is the ABB PFCL201C-10kN physically in stock, and what is the shipping cutoff?
Physical availability should be confirmed against the actual warehouse unit. For an urgent production requirement, request the exact part number, revision, condition, test status, quantity, and same-day dispatch cutoff before releasing the PO.
2. How do you verify a surplus before shipment?
The unit should pass visual inspection, identification checks, connector inspection, power-up testing, and measurement verification where the correct test equipment is available. For a tension-measurement device, checking signal behavior is more useful than a visual inspection alone.
3. What warranty should I request for this tension measurement unit?
Request a written warranty period and defective-unit procedure. The terms should define the claim period, required test evidence, return process, and replacement or refund conditions.
4. Does the 10 kN rating guarantee compatibility with my existing load cells?
No. The capacity is only one part of the compatibility check. Verify the load-cell model, rated capacity, excitation, signal wiring, calibration data, and mechanical arrangement before installation.
5. Will I need to recalibrate the system after replacing -10kN?
Plan to verify calibration. Even when the replacement hardware is an exact match, confirm zero and span against a known reference before returning the machine to production. If the stored calibration parameters differ, restore the approved values and perform a controlled tension check.
