Name: ABB PPC322BE01 HIEE300900R0001 | Genuine OEM Fast...
SKU: ABB PPC322BE01 HIEE300900R0001
Price: 13352.00 USD
Availability: InStock

Description

Module 2: The 10-Second Procurement Snapshot

Brand: ABB
Full Model Number: PPC322BE01 / HIEE300900R0001
Lifecycle Status: Legacy / Spare Parts
Core Function: PSR-2 processing and fieldbus control
Top 3 Technical Specs: PSR-2 processor; fieldbus interface; 1.149 kg net weight
Stock & Condition: New Surplus; tested condition available by request; physical stock confirmation required

Module 3: Supply Chain & Technical Deep Dive

When a UNITROL P control system loses its processing unit, the replacement decision is usually time-sensitive. ABB identifies PP C322 BE01 HIEE300900R0001 as a PSR-2 Processor + Fieldbus component. ABB’s own spare-parts documentation lists this processor as a recommended spare for UNITROL P systems, with 2 pieces used in one unit.

The TCO case is tied to preserving an installed power-electronics control platform rather than redesigning the control architecture. Available ABB-related product data lists a net weight of 1.149 kg, a spare-parts classification, and a minimum order quantity of 1 piece. The exact fieldbus configuration and system compatibility should be verified against the installed UNITROL P configuration before procurement; ABB specifically notes that recommended spare parts are tailored to application-specific requirements.

Module 4: Migration, Compatibility & Field Traps

Replacement Matrix

Replacement Category	Assessment
Drop-in Replacement	Yes, when the complete ABB part number matches
Software Compatible	Application configuration must be verified
Hardware Modification	Normally not required for an exact replacement
Engineering Approval	Required before commissioning

⚠️ Field Trap 1: UNITROL P Configuration

Do not treat the processor as a generic ABB controller.

ABB’s official spare-parts document places the PP C322 BE01 specifically within the UNITROL P architecture and lists two processors per UNITROL P unit.

Before ordering, record:

UNITROL P system configuration
Existing processor part number
Hardware revision
Fieldbus configuration
Associated control boards
Firmware/software information

⚠️ Field Trap 2: Processor Pairing

If the installation uses two PP C322 BE01 processors, replacing only one unit requires extra care.

Compare the two existing processors before removal. Check hardware revisions and configuration data, then verify the operating status of both processors after installation.

Do not assume that two modules with the same family name have identical configuration data.

⚠️ Field Trap 3: Fieldbus Configuration

The catalog description explicitly identifies the component as “PSR-2 processor + fieldbus.”

A successful power-up does not prove that fieldbus communication is correct.

Verify:

Processor recognition.
Fieldbus status.
Connected control modules.
Communication diagnostics.
System control response.

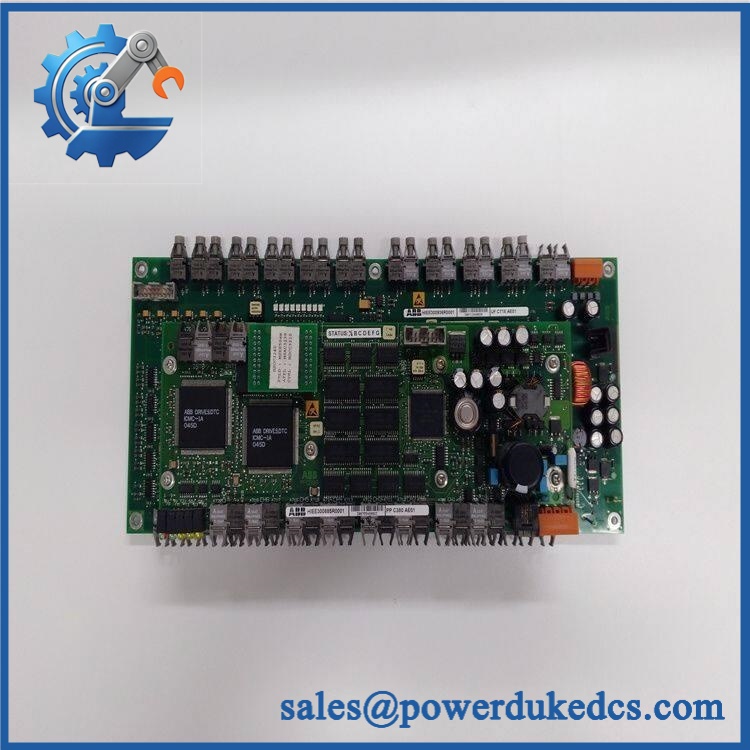

ABB PPC322BE01 HIEE300900R0001

Module 5: Quality Assurance & Testing SOP

For a UNITROL P processor, the useful test is system-level recognition and fieldbus communication—not merely applying power to the board.

1. OEM Identification Check

Verify ABB identification.
Confirm PPC322BE01 designation.
Verify HIEE300900R0001.
Record serial number and hardware revision.
Photograph the nameplate.
Compare the physical board against the ordered configuration.

ABB’s own spare-parts document identifies PP C322 BE01 as the PSR-2 Processor + Fieldbus for UNITROL P.

2. Physical Inspection

Inspect for:

Corrosion
Oxidation
Burn marks
Damaged connectors
Bent pins
Missing components
PCB contamination
Signs of previous repair
Mechanical damage

Pay particular attention to connectors and board seating points.

3. Power-On Self-Test

Using an appropriate UNITROL P test environment:

Apply the specified system supply.
Observe startup behavior.
Check status LEDs.
Confirm processor recognition.
Check diagnostic indications.
Verify expected processor status.

Any abnormal indication should be recorded in the Test Report.

4. Processor and Fieldbus Test

Where the correct ABB test setup is available:

Confirm processor initialization.
Verify fieldbus communication.
Check communication with associated control modules.
Monitor diagnostic status.
Confirm stable data exchange.
Run the system for an extended observation period.

Do not claim a complete functional test unless the module has actually been tested in a compatible UNITROL P environment.

5. Configuration Verification

Record:

Hardware revision
Firmware revision
Fieldbus configuration
Processor status
Associated module configuration

If the customer’s original configuration is available, compare the replacement against it before shipment.

6. Final QC

Test Report completed
Serial number recorded
Processor test results archived
Fieldbus test results documented
QC approval completed
ESD packaging applied
Protective cushioning installed
Shipping carton sealed

Test photographs and available Test Reports can be provided for procurement review.

Module 6: Procurement-Driven FAQ

1. Is ABB PPC322BE01 HIEE300900R0001 in stock, and when can it ship?

Physical stock should be confirmed against the exact HIEE300900R0001 part number before the PO is released.

For an urgent UNITROL P shutdown, confirm the actual quantity, condition, warehouse location, and dispatch cutoff rather than relying on a generic stock statement.

2. How do you verify the condition of a surplus processor?

The unit should undergo nameplate verification, physical inspection, power-on testing, processor recognition, and fieldbus communication testing where the correct test environment is available.

ABB identifies this part as a UNITROL P spare and lists 2 processors per UNITROL P unit in its recommended spare-parts documentation.

3. What warranty and return terms should procurement require?

The quotation should state the warranty period, functional coverage, return authorization procedure, and inspection requirements.

For surplus power-electronics control hardware, request the serial-number record and pre-shipment Test Report. This gives both parties a documented condition baseline.

4. Are there firmware or configuration compatibility issues?

Yes, configuration should be checked.

The part is a PSR-2 processor with fieldbus functionality, so processor recognition alone is not enough to approve the replacement. Verify the installed UNITROL P configuration, processor revision, fieldbus arrangement, and associated control hardware before commissioning.
