- ABB PPD513 3BHE039724R1060 Controller | Genuine OEM Automation Asset
Unboxing & Physical Snapshot

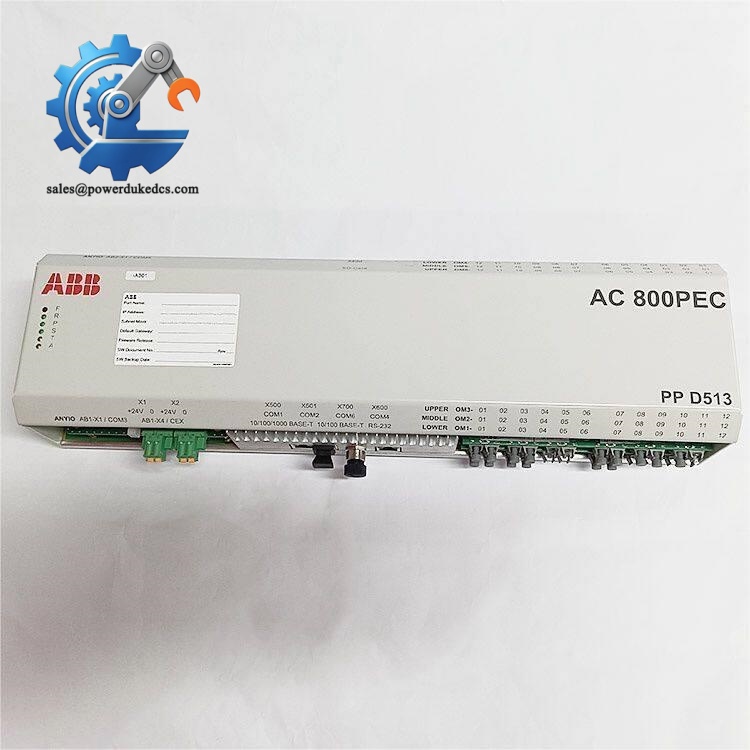

- Brand & Model: ABB AC800PEC PPD513
- Product Family: ABB AC 800PEC High Performance Control System.
- Product Type: High-speed programmable controller module combining CPU processing and FPGA-based real-time control functions.
- Primary Applications: Power electronics control, excitation systems, traction equipment, industrial converters, and fast closed-loop automation systems.
- Approximate Physical Dimensions: Approximately 220 × 185 × 60 mm (8.7 × 7.3 × 2.4 in), depending on hardware variant.
- Estimated Shipping Weight: Approximately 0.8–1.1 kg (1.8–2.4 lb) including ESD packaging.
- Mounting Style: Cabinet-mounted industrial controller module.
- Processor Architecture:
- CPU processing core
- FPGA hardware acceleration layer
- High-speed real-time control execution
- Front Interface Features:
- Status LEDs
- Communication interfaces (variant dependent)
- Service connection interface
- Module identification label
- Construction Features:
- Industrial PCB assembly
- Protective enclosure
- Backplane/field communication interfaces
- Conformal protection options depending on version
- What’s in the Box:
- ABB AC800PEC PPD513 controller module
- Anti-static ESD shielding bag
- Protective packaging
- Documentation when supplied
Product Introduction
The ABB AC800PEC PPD513 is installed as the central processing element within the AC 800PEC high-speed control architecture. It combines conventional controller functions with FPGA-based processing, allowing extremely fast control loops for applications where standard PLC scan cycles are insufficient (which is common in power conversion and electrical drive systems).
This controller requires careful asset handling. Inspect the connector surfaces, enclosure condition, cooling openings, and identification label before installation. Verify the exact hardware revision and application compatibility before replacement. The wrong PPD513 variant may physically fit while still creating configuration or commissioning issues.
Core Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | ABB |
| Model Number | PPD513 |
| Product Family | AC 800PEC |
| Product Type | High-Speed Industrial Controller |
| Processor Architecture | CPU + FPGA real-time control |
| Control Cycle Time | Down to approximately 100 μs for fast control tasks |
| FPGA Processing | Tasks down to approximately 25 ns |
| Power Supply | 24 VDC nominal |
| Allowable Supply Range | Approximately 18–32 VDC |
| Memory | Variant dependent; commonly listed configurations include RAM and Flash storage |
| Communication Interfaces | Ethernet, fieldbus, serial interfaces depending on variant |
| Programming Environment | ABB Control Builder / IEC 61131-3 |
| Model-Based Design Support | MATLAB/Simulink integration |
| Cooling Method | Passive convection |
| Installation Environment | Industrial control cabinet |
| Maximum I/O Expansion | Supports high-speed optical I/O configurations depending on system design |
ABB PPD513 Controller
Global Compliance & Industry Certifications
Expected regulatory approvals and compliance considerations for the ABB AC800PEC include:
- CE Mark — applicable for compliant ABB AC800PEC system installations meeting EMC and safety requirements.
- UL/cUL Recognition — may apply depending on the complete control cabinet certification.
- RoHS Compliance — applicable to supported manufacturing revisions.
- IEC 61131 Industrial Control Equipment Practices — relevant for PLC/controller hardware evaluation.
- ATEX/IECEx — requires confirmation of the complete hazardous-area installation, including enclosure and associated equipment.
- Marine approvals (DNV GL, ABS, or LR) — applicable only when integrated into a certified marine automation system.
For high-speed power control applications, EMC compliance is particularly important because switching equipment can generate electrical noise that affects control signals and communication interfaces.
Verify specific lot certifications with OEM.
Long-Term Storage & Asset Preservation Guide
- Keep the inside its original anti-static (ESD) shielding bag until installation. The processor board, FPGA devices, and connector contacts are sensitive to electrostatic discharge.
- Maintain warehouse humidity below 60% RH. Moisture can degrade connector surfaces and contribute to PCB contamination over long storage periods.
- Store in a temperature-controlled area away from corrosive gases, conductive dust, and vibration sources.
- Inspect the cooling vents, connector pins, retaining hardware, and enclosure seals during periodic spare audits.
- Record hardware revision, serial number, firmware version (if available), and storage inspection history.
Physical Installation Prerequisites
- Install the ABB only within the approved AC800PEC cabinet architecture.
- Confirm the power supply module and communication interfaces match the existing system configuration.
- Leave at least 50 mm clearance above and below the cabinet assembly where natural convection cooling is used.
- Verify protective earth grounding of the control cabinet before energizing.
- Inspect all communication connectors before insertion.
- Avoid routing controller communication wiring near high-current switching conductors.
- Confirm 24 VDC supply polarity before startup.
- Follow ABB discharge and handling procedures when replacing modules in energized control environments.
Buyer’s FAQ (Logistics & Compliance Focus)
Q: What HS Tariff Code is commonly used for the ABB ?
A: Industrial controller modules are commonly evaluated under HS classifications related to electrical control equipment, often within 8537. Final classification depends on the importing country’s customs interpretation and the declared function of the controller.
Q: Does Country of Origin affect ABB import documentation?
A: Yes. Country of Origin (COO) records support customs clearance, supplier qualification, warranty tracking, and regulated industrial asset management. Maintain the ABB label, serial information, and purchase records together.
Q: Should shipping insurance be purchased for this controller?
A: Recommended. The contains processor electronics, FPGA devices, and precision connectors. Shock, moisture, or ESD exposure during transportation may cause failures that are not immediately visible.
Q: Does the ABB include the latest firmware pre-loaded?
A: Firmware availability depends on the hardware revision and the installed application configuration. The controller may require verification of firmware compatibility, application software version, and project backup before commissioning.
