Description
- Model: SPBRC410
- Brand: ABB
- Part Type: BRC410 control processor / bridge controller
- System: ABB Symphony Plus / INFI 90 OPEN
- Core Protocol: Modbus TCP over Ethernet
- Power Requirement: 10 W controller consumption at 5 VDC, according to ABB technical documentation
Technical Introduction
The ABB SPBRC410 is a control processor used in the Symphony Plus / legacy INFI 90 OPEN control architecture.
ABB’s current product documentation identifies SPBRC410 as a Controller with Modbus TCP Interface and places it in the HR Series controller family. The controller supports communication with console HMI and engineering stations, peer-to-peer controller communication, HR Series I/O, SD Series I/O, and S800 I/O through IOR810. ABB specifies an industrial-grade RISC processor, 8 MB DRAM, 2 MB NVRAM, approximately 10 W controller power consumption, and an ambient operating range of 0 to 70 °C. The platform also provides a 10/100 Mbps Ethernet port, RS-232/RS-485 serial options, and a mini-USB diagnostic port.
Engineer’s Takeaway: SPBRC410 is not simply an Ethernet communication card. It performs controller-level processing and supports the Symphony Plus / INFI 90 control architecture, so firmware, controller redundancy, I/O architecture, and system configuration should be checked before replacement. ABB also documents the controller as supporting Modbus TCP integration for third-party and ABB intelligent devices.
Core Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | ABB |
| Model | SPBRC410 |
| ABB Type Designation | SPBRC410 |
| Product Description | Controller with Modbus TCP Interface |
| Controller Family | HR Series |
| System Platform | ABB Symphony Plus / INFI 90 OPEN |
| Processor | Industrial-grade RISC-type processor |
| DRAM | 8 MB |
| NVRAM | 2 MB |
| Controller Power | 2 A at 5 VDC = 10 W |
| Communication | 2 × RS-232-C, or 1 × RS-232-C + 1 × RS-485 |
| Ethernet | 1 × 10/100 Mbps |
| Diagnostic Port | 1 × Mini-USB |
| Process Bus / I/O Support | HR Series I/O, SD Series I/O, S800 I/O via IOR810 |
| Network Functions | INFI-Net / PN800 exception reporting, Controlway, I/O expander bus |
| Modbus TCP | Supported |
| Operating Temperature | 0 to 70 °C |
| Dimensions | 101.6 mm depth × 254 mm height × 203.2 mm width |

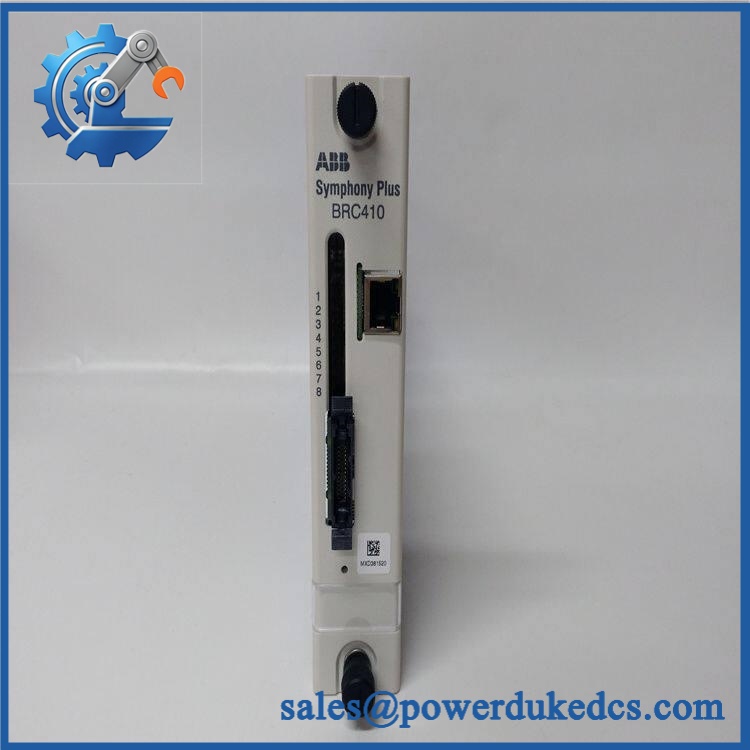

ABB SPBRC410
ABB’s product catalog provides the controller’s processor, memory, power, communication interfaces, I/O support, Modbus TCP capability, and operating-temperature data. Current ABB product-detail documentation also confirms the product ID and catalog description.
Field Engineer’s Tech Notes
- Verify the firmware before replacement. Some DCS spare suppliers specifically require the required firmware version to be stated when ordering . A controller with the correct hardware number but an incompatible firmware build can still create commissioning problems.
- Check redundancy and controller role before pulling the card. ABB documents use in redundant-controller arrangements. Record the existing controller assignment, configuration, network connections, and diagnostic status before removal. Do not assume that swapping the physical unit alone restores the control strategy.
Adaptive QA & Testing Protocol
Incoming QA for starts with exact model verification, nameplate and revision recording, connector inspection, board-condition inspection, and confirmation of the controller’s firmware information where accessible.
Functional testing should reproduce the controller’s actual role rather than treating it as a generic communication board. In an approved Symphony Plus / INFI 90 test environment, verification should include controller power-up diagnostics, Ethernet link establishment, Modbus TCP communication, controller-to-controller communication, and I/O data exchange with the applicable rack architecture. Where redundancy is used, controller failover behavior should also be checked against the approved system test procedure.
Test reports, inspection photographs, and available test videos can be supplied upon request.

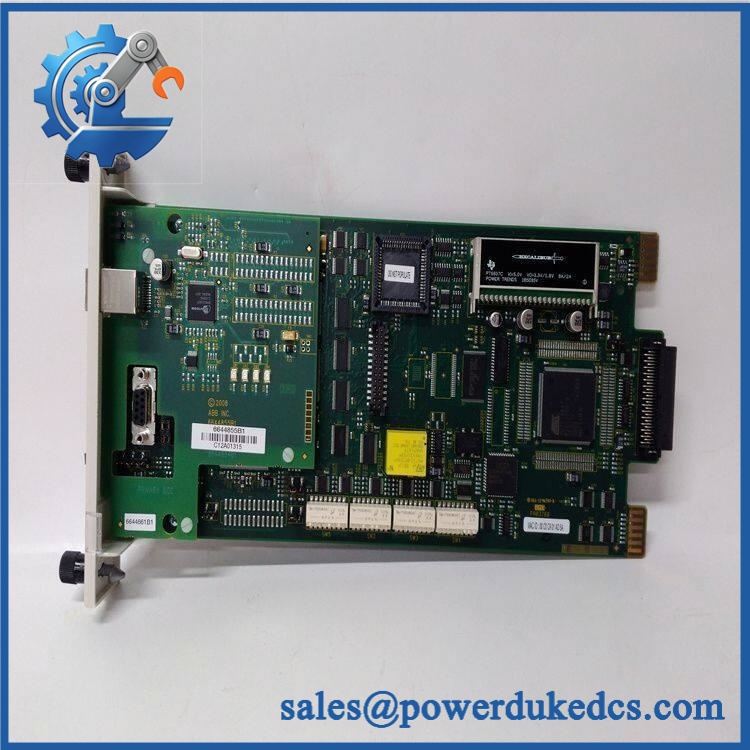

ABB SPBRC410
Buyer’s FAQ
Q: What is ABB used for?
A: is an ABB HR Series control processor with Modbus TCP capability for Symphony Plus / INFI 90-related control architectures.
Q: Does support Modbus TCP?
A: Yes. ABB explicitly identifies the product as a Controller with Modbus TCP Interface and documents Ethernet-based Modbus TCP communication.
Q: Is a direct replacement for every BRC410?
A: Not automatically. Confirm the installed system generation, firmware, I/O architecture, controller role, redundancy arrangement, and communication configuration before substitution.
Q: What condition can be supplied?
A: Depending on stock, may be available as New Surplus (NSFP), factory-new, refurbished, or tested used inventory. The exact condition, warranty, firmware status, and available test evidence should be stated on the quotation.
