ALSTOM P112-6052 | 5-Port AMC2 Controller With Serial16+

Description

• Brand: ALSTOM / Converteam
• Full Model Number: P112-6052
• System/Series Family: Advanced Micro Controller 2 (AMC2)
• Core Function: Embedded industrial controller with network and serial communications
• Top 3 Hardcore Specs: 5 network ports; 2 Serial16+ interfaces; 18–36 VDC supply
• Stock Status: New Surplus — exact revision and installed configuration to be confirmed

The P112-6052 is an Advanced Micro Controller 2 (AMC2) configuration associated with the former Converteam/ALSTOM control platform. The AMC2 documentation identifies the P112-6052 specifically as the 5-network-port version with two Serial16+ interfaces.

The published AMC2 documentation specifies a 24 VDC ±20% supply, equivalent to approximately 19.2–28.8 VDC, while supplier records for the P112-6052 list an 18–36 VDC operating supply range. The exact controller revision should therefore be checked against the physical nameplate before installation.

Module 3: Technical Product Introduction

When an obsolete embedded controller fails, replacing the complete control platform can introduce unnecessary software and commissioning work. The ALSTOM P112-6052 is an AMC2 controller configuration intended for industrial control applications, with five network ports and two Serial16+ interfaces. The ordering-code documentation identifies it as a specific AMC2 configuration rather than a generic PLC processor.

The platform uses a 24 VDC ±20% nominal supply, includes watchdog and temperature-monitoring functions, and supports an extractable CompactFlash storage device. The documentation also identifies support for Marine Controller (ISaGRAF) and HPCi software platforms. The P112 configuration is differentiated from P110 and P111 variants by its communications arrangement, so replacing it with another P11x controller without checking the installed serial requirements can create a commissioning problem.

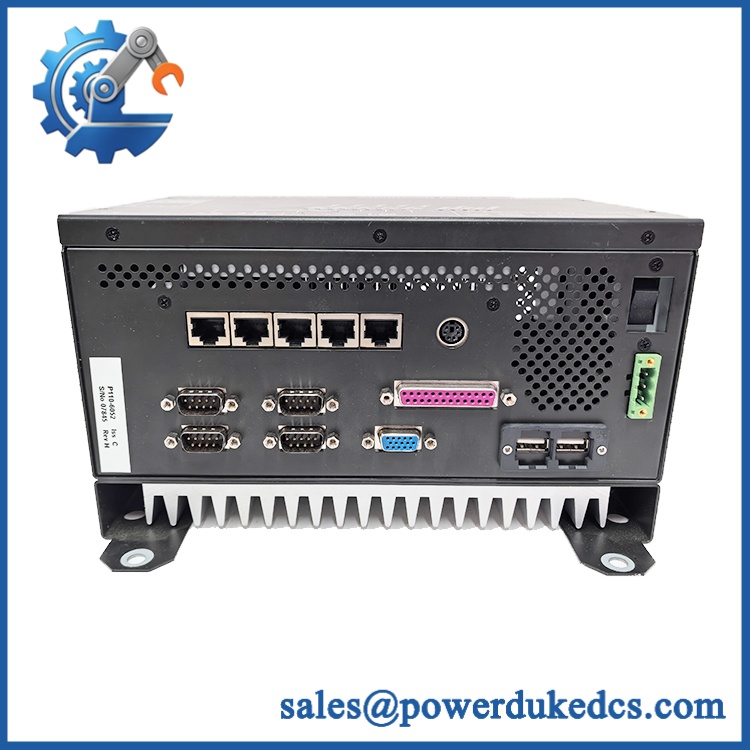

ALSTOM P112-6052

Module 4: Application Scenarios & Field Realities

• In a legacy ALSTOM/Converteam control cabinet, the -6052 can serve as the embedded controller coordinating networked and serial devices. Its five network ports and two Serial16+ interfaces are the first configuration points to verify when replacing a failed unit.
• For systems using multiple serial devices, the configuration is particularly relevant because the ordering documentation distinguishes it from the P110 and P111 variants by the number of Serial16+ interfaces.
• During a controller replacement, preserve the CompactFlash device and record its contents before commissioning whenever the existing controller is still readable. The storage media may contain application software, configuration data, or system-specific parameters.
• Where the controller is used in marine or drive-control equipment, verify the actual software environment before swapping hardware. documentation lists Marine Controller (ISaGRAF) and HPCi as supported software platforms.

Module 5: Migration, Compatibility & Installation Traps

Replacement Matrix

Field Trap 1 — P110/P111/ are not interchangeable by appearance:
The ordering table distinguishes P110-6052 as the five-network-port version, P111-6052 as five network ports plus one Serial16+, and as five network ports plus two Serial16+ interfaces. Check the serial interface requirement before accepting another P11x controller.

Field Trap 2 — Supply range verification:
documentation specifies 24 VDC ±20%, while commercial listings describe 18–36 VDC. Use the actual controller documentation and nameplate for the installed revision rather than applying power based solely on a reseller specification.

Installation note: Isolate the controller supply before removal. Record network connections, serial-channel assignments, CompactFlash configuration, IP parameters, application software version, and any hardware jumpers. After installation, verify the controller boots correctly before reconnecting the complete machine or process.

Module 6: Quality Assurance SOP

1. OEM identification inspection — Verify ALSTOM/Convert, serial number, revision, manufacturing markings, and any identification label.
2. Configuration inspection — Confirm the physical unit corresponds to the configuration with five network ports and two Serial16+ interfaces.
3. Physical inspection — Examine network connectors, serial interfaces, power terminals, CompactFlash interface, enclosure, mounting points, and PCB surfaces for damage or contamination.
4. OEM anti-counterfeit visual inspection — Compare manufacturer labels, PCB construction, connector placement, board markings, component layout, and revision identifiers against authenticated reference hardware.
5. Power-on self-test (POST) — Apply the verified DC supply in a controlled test environment and monitor startup sequence, diagnostic indicators, watchdog behavior, and abnormal current consumption.
6. Network-interface verification — Test each required network port individually and confirm link establishment, data transmission, and stable communication with the approved test equipment.
7. Serial-interface verification — Exercise both Serial16+ channels using the appropriate test equipment. Confirm channel recognition, transmit/receive operation, and expected communication parameters.
8. Storage verification — Where a CompactFlash device is supplied, inspect its identification and verify controlled read access. Preserve the original application media when performing a field replacement.
9. Software handshake verification — Load or execute the approved application environment and verify controller recognition, application startup, and communication with connected devices.
10. Watchdog and thermal checks — Verify diagnostic behavior and monitor controller temperature during an extended functional test. Any unexpected reset or temperature rise should stop the test.
11. Configuration verification — Compare network addresses, serial settings, application version, I/O assignments, and system parameters with the customer’s approved configuration.
12. Final traceability record — Photograph the compl label and revision markings, document all test results, record the installed storage configuration, and package the controller using ESD-safe protection.

Procurement note: The ALS is more precisely identified as a Converteam Advanced Micro Controller configuration. The original ordering documentation confirms five network ports and two Serial16+ interfaces, making the designation materially different from the P110 and P111 variants. For a production replacement, match the compl number, hardware revision, software environment, CompactFlash configuration, network setup, and two-channel Serial16+ requirement.
