BENTLY 1900/65-00-01-03-01-01 | General Equipment Monitor

Description

• Brand: Bently Nevada
• Full Model Number: 1900/65-00-01-03-01-01
• Lifecycle Status: Legacy / configuration-dependent support
• Core Function: General-purpose equipment condition and protection monitoring
• Top 3 Technical Specs: 4 transducer inputs; 4 temperature inputs; 6 programmable relay outputs
• Power Configuration: 18–36 VDC
• Display Configuration: Attached display
• Mounting Configuration: Fiberglass NEMA 4X/IP66 weatherproof housing
• Communications: Modbus
• Analog Outputs: 4 configurable 4–20 mA recorder outputs
• Stock & Condition: Exact stock confirmation required; New Surplus / Tested Refurbished; Emergency shipping subject to cutoff

The 1900/65 family supports four configurable transducer inputs, four temperature inputs, six relay outputs, and four 4–20 mA recorder outputs. The ordering structure identifies 00 as the 18–36 VDC power option, 01 as the attached display, 03 as the fiberglass NEMA 4X/IP66 housing, 01 as multiple approvals, and 01 as the Modbus communications option.

Module 3: Obsolescence & Supply Chain Deep Dive

An unavailable 1900/65 monitor can leave a pump, fan, blower, motor, compressor, or other general-purpose machine without its intended continuous condition-monitoring and protection functions. BENTLY 1900/65-00-01-03-01-01 is a configured 1900/65-family monitor with four transducer inputs and four temperature inputs, while its six programmable relays can be assigned to equipment status and alarm conditions. The configuration also includes Modbus communications and a weatherproof NEMA 4X/IP66 housing.

For TCO, replacing the configured monitor is often preferable to redesigning the entire machine-monitoring arrangement. Existing sensors, relay logic, 4–20 mA interfaces, Modbus integration, and enclosure infrastructure may remain usable when the replacement configuration is matched correctly. That avoids unnecessary panel engineering, rewiring, PLC/DCS mapping changes, and commissioning work. (Configuration code verification is essential here because the 1900/65 ordering string defines power, display, mounting, approvals, and communications options.)

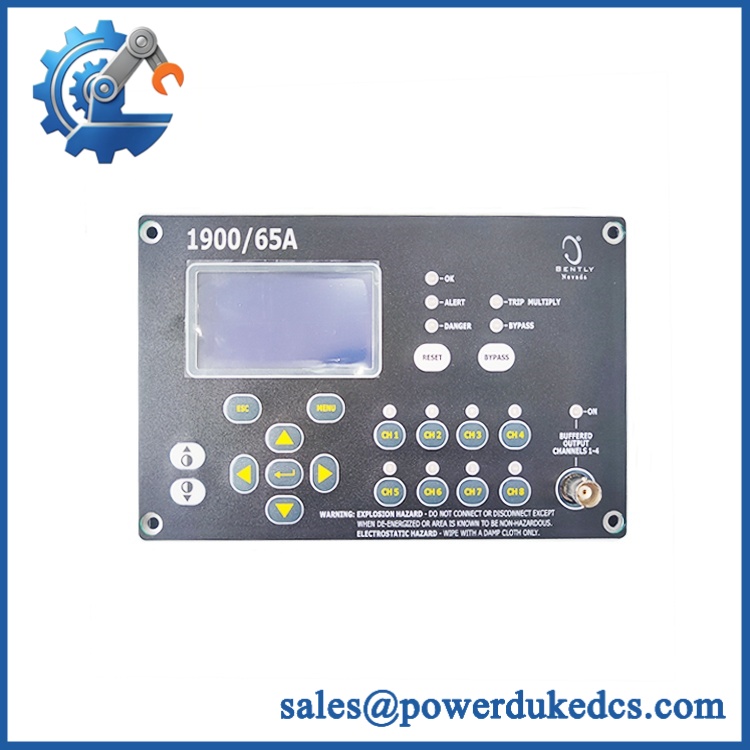

BENTLY 1900/65-00-01-03-01-01

Module 4: Compatibility & Replacement Matrix

The published ordering information shows that the configuration string is significant: A=00 specifies 18–36 VDC, B=01 specifies an attached display, C=03 specifies a fiberglass NEMA 4X/IP66 housing, D=01 specifies multiple approvals, and E=01 specifies Modbus communications.

⚠️ Field Traps — Watch Out

• Configuration-Code Mismatch: A replacement with the same 1900/65 family number but a different option string may have different power, display, mounting, approvals, or communication provisions. Match the complete 1900/65-00-01-03-01-01 string before approval.
• Sensor and Channel Configuration: The monitor supports different transducer channel types, including acceleration, velocity, radial vibration, thrust, position, and speed, with separate temperature inputs. The replacement configuration must match the site’s configured channel types and scaling.

Module 5: Quality Assurance & Testing SOP

1. OEM anti-counterfeit visual inspection — verify Bently Nevada markings, full 1900/65-00-01-03-01-01 identification, serial information, enclosure construction, connectors, labels, and manufacturing traceability.
2. Configuration-string audit — separately confirm power, display, mounting, approvals, and communications options against the ordered suffix.
3. Mechanical inspection — inspect the NEMA 4X/IP66 housing, door/interface components, cable entries, mounting points, display assembly, and terminal area.
4. PCB condition inspection — check for corrosion, contamination, cracked solder joints, damaged components, overheating, and unauthorized repair.
5. Electrical pre-screening — verify grounding, supply-path integrity, input resistance, isolation, and absence of abnormal shorts before energization.
6. Power-on self-test (POST) — energize the monitor from a controlled 18–36 VDC source and verify startup diagnostics, display behavior, and status indications.
7. Transducer-input testing — simulate representative acceleration, velocity, displacement, or speed signals on all applicable channels and verify correct acquisition.
8. Temperature-input testing — simulate the configured thermocouple or RTD inputs and confirm correct measurement, scaling, and fault detection.
9. Relay-output testing — exercise all six programmable relay outputs and verify normally energized/de-energized logic, pickup, release, and configured alarm behavior.
10. 4–20 mA testing — verify all four recorder outputs across representative low, mid-scale, and high-scale values and confirm expected loop behavior.
11. Modbus communication testing — verify configuration access, register data, channel values, status information, and communication stability through the installed interface.
12. Alarm and event testing — simulate Alert/Danger conditions and verify relay logic, status indication, and event recording.
13. Extended operating test — monitor sensor values, temperature, relay state, analog outputs, communication stability, and diagnostic status for intermittent faults.
14. Final QC release — photograph the full identification, record configuration and test results, package against ESD and shipping damage, and preserve complete traceability.

The 1900/65A technical documentation describes four transducer inputs, four temperature inputs, six relay outputs, four 4–20 mA outputs, configurable alarm logic, and Modbus-related configuration functions. Those functions should be included in acceptance testing rather than relying solely on a successful power-up.

Module 6: Procurement & Lifecycle FAQ

Q1. Is BENTLY 1900/65-00-01-03-01-01 genuinely in stock, and what is the cutoff for emergency shipping?
Exact availability should be confirmed against the complete configuration string, quantity, condition, and destination before the PO is released. Current industrial listings show this configuration as inventory-listed in some channels, while lead time varies by condition and supplier. Emergency dispatch should therefore be confirmed directly before release.

Q2. How do you verify the condition and authenticity of an obsolete or surplus 1900/65?
Require full configuration-code verification, OEM marking inspection, enclosure and PCB examination, electrical screening, POST, sensor-input simulation, temperature-channel testing, relay testing, 4–20 mA verification, and Modbus communication testing. The final unit should remain traceable to its inspection record.

Q3. Are there any firmware or configuration issues engineers should check before issuing the PO?
Yes. The 1900/65 is software-configured, and the monitor stores configuration information for channels, variables, setpoints, recorders, filters, relay logic, and communications. Before issuing the PO, engineers should preserve the existing configuration and verify the replacement can accept the required configuration file and Modbus setup.

Q4. Can a 1900/65A with a different suffix replace 1900/65-00-01-03-01-01?
Not automatically. The option string controls important characteristics. For this configuration, 00 = 18–36 VDC, 01 = attached display, 03 = fiberglass NEMA 4X/ housing, 01 = multiple approvals, and 01 = Modbus communications. A different suffix can require different field wiring, enclosure arrangements, or system integration.

Q5. What warranty and return terms should procurement require?
Require a written warranty period, DOA criteria, return-authorization process, serial-number traceability, and exclusions for incorrect wiring, overvoltage, environmental damage, or unauthorized configuration changes. The quotation should identify the complete 1900/65-00-01-03-01-01 configuration, not simply state “1900/65.”
