Bently Nevada 125760-01 | 3500 Data Manager I/O Module

• Brand: Bently Nevada
• Full Model Number: 125760-01
• Lifecycle Status: Legacy / Lifecycle-managed
• Core Function: 3500 Data Manager I/O Module
• Top 3 Technical Specs: 3500/20 rack interface; Slot 1 installation; external data communication and rack-management interface
• Stock & Condition: New Surplus / Tested Refurbished; Physical stock confirmation required; Emergency dispatch subject to order cutoff

Baker Hughes lists 125760-01 as the Data Manager I/O Module within the Bently Nevada 3500/20 Rack Interface Module family. The official 3500/20 documentation also identifies it in the spare-parts list.

Module 3: Obsolescence & Supply Chain Deep Dive

A failed 125760-01 can interrupt communication between a Bently Nevada 3500 rack and the plant’s external monitoring or data-management environment, even when the individual monitor modules remain operational. The part is identified as the Data Manager I/O Module, making accurate replacement important during a machinery-monitoring outage. Baker Hughes specifically lists 125760-01 as a 3500/20 spare. Secondary technical references identify the module as a rack data/communication interface and specify Slot 1 as its installation position.

For TCO, a like-for-like replacement is usually the lower-risk route when the existing 3500 architecture remains serviceable. It avoids rack redesign, alternate communication-interface engineering, software reconfiguration, and extended machinery-monitoring downtime. The procurement objective should be restoration of the installed 3500 system, not substitution with an unrelated interface. One caution: secondary listings are inconsistent about the exact communications description and electrical details, so the installed rack configuration and the current Bently documentation should control the final engineering approval.

Module 4: Compatibility & Replacement Matrix

Field Traps — Watch Out

• Slot assignment: Secondary technical documentation identifies the 125760-01 for installation in Slot 1 of the 3500 rack. Do not treat it as a freely assignable rack module.
• Part-number confusion: Do not substitute 125760-01 with 125744-01, 125744-02, or 125768-01 merely because these are also associated with the 3500/20 family. Baker Hughes distinguishes these parts by interface function and configuration.

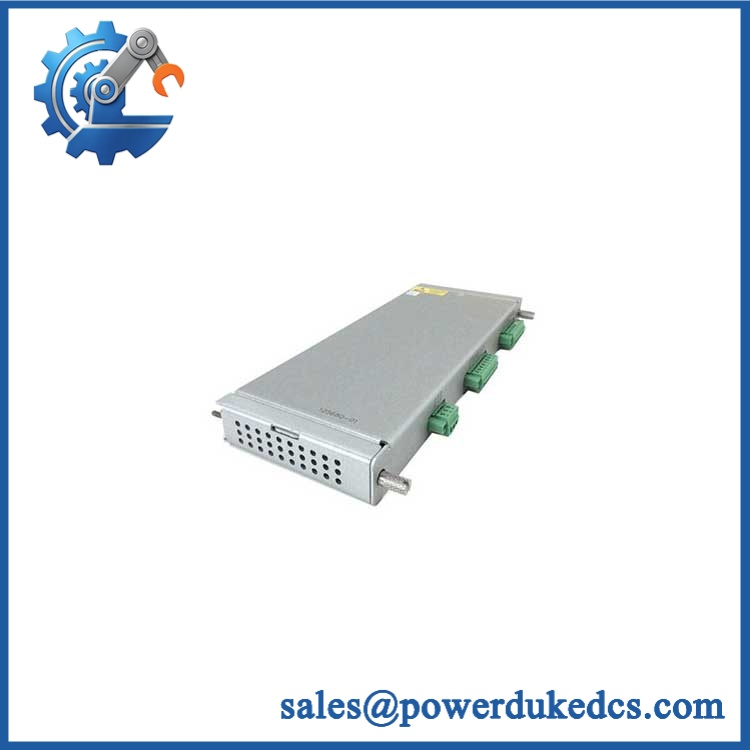

Bently Nevada 125760-01

Module 5: Quality Assurance & Testing SOP

This module should receive communication-focused testing rather than a simple visual inspection.

• Incoming traceability: Record Bently Nevada markings, 125760-01 part number, revision, serial information, and available date-code data.
• OEM anti-counterfeit visual inspection: Check labels, PCB identification, connectors, component population, solder quality, housing condition, and evidence of unauthorized rework.
• Mechanical inspection: Verify card-edge connectors, mounting hardware, ejectors/retainers, PCB condition, and rack interface surfaces.
• Power-on self-test (POST): Apply controlled rack power and verify normal startup behavior and applicable status/error indications.
• Power verification: Measure supply conditions and confirm abnormal current draw is absent.
• Rack communication test: Install the module in a compatible test rack and verify correct rack recognition.
• Data-interface testing: Exercise the applicable external communication interfaces and confirm expected data transfer.
• Configuration test: Confirm that the module can support the approved 3500 rack configuration and external host connection.
• Diagnostic verification: Check module status indications and confirm no persistent communication or configuration alarms.
• Extended operation: Run the module continuously while monitoring communication stability and temperature.
• Final QC release: Record part number, revision, serial information, test results, inspection date, and technician approval.

Module 6: Procurement & Lifecycle FAQ

1. Is the Bently Nevada 125760-01 genuinely in stock, and what is the cutoff for emergency shipping?

Physical inventory should be confirmed against the exact 125760-01 part number and revision before PO release. Current independent listings advertise this model as available, but emergency procurement should rely on a physical stock check rather than a catalog status. Same-day dispatch depends on order confirmation, payment clearance, warehouse cutoff, and carrier collection.

2. How do you verify the condition and authenticity of an obsolete or surplus 125760-01?

Verification should include manufacturer identification, PCB and connector inspection, mechanical examination, controlled power-up, rack recognition, and communication testing. Keep photographs, serial information, and test results with the MRO receiving record.

3. Are there firmware compatibility issues engineers should check before issuing the PO?

The primary concern is not simply firmware. Engineers should verify the 3500/20 rack configuration, Slot 1 assignment, host communication arrangement, and exact interface variant. Baker Hughes distinguishes the 125760-01 Data Manager I/O Module from other 3500/20 interface modules, so the complete part number should be matched before procurement.

4. Can the 125760-01 replace a failed module without modifying the existing rack?

For an exact replacement within a compatible 3500/20 installation, hardware modification is normally not expected. The module is specifically listed as a 3500/20 spare, and secondary documentation identifies Slot 1 as its installation position. Communication and configuration should still be validated after installation.

5. What warranty and return terms should procurement require?

Specify Bently Nevada 125760-01, exact revision, condition, testing status, warranty period, and return procedure in the PO. Warranty coverage should address DOA and verified functional failure, while excluding damage resulting from incorrect installation, rack faults, unsuitable power, communication wiring errors, or unauthorized modification.
