Bently Nevada 125840-02 | 3500/15 Low Voltage AC PIM Module

• Brand: Bently Nevada
• Full Model Number: 125840-02
• Lifecycle Status: Legacy / Obsolescence-Risk
• Core Function: 3500/15 Low Voltage AC Power Input Module
• Top 3 Technical Specs: 85–132 VAC RMS input; 47–63 Hz; 120.7 × 25.4 × 114.3 mm
• Stock & Condition: New surplus / tested refurbished — verify PIM revision and rack power configuration before PO

The 125840-02 is the Bently Nevada 3500/15 Low Voltage AC Power Input Module (PIM). The 3500 documentation specifies an 85–132 VAC RMS input range and 47–63 Hz frequency for the low-voltage AC PIM; legacy installations can have narrower limits depending on the revisions of the PIM and associated AC power-supply module.

Module 3: Obsolescence & Supply Chain Deep Dive

A failed 125840-02 can remove the input-power path for a 3500 rack even when the monitoring modules themselves remain serviceable. The part is not the main power-conversion module; it is the Power Input Module installed with the 3500/15 supply. That distinction matters during procurement because the PIM and power-supply module operate as a matched input arrangement. The documented 125840-02 is the Low Voltage AC PIM, with a nominal 85–132 VAC RMS input range and 47–63 Hz operating frequency.

For TCO, replacing the failed PIM is usually far less expensive than redesigning the entire 3500 power section or migrating the machinery-protection rack. Existing rack hardware, monitor modules, field wiring, and protection configuration can remain in place when the correct PIM is installed. The main procurement risk is selecting the wrong voltage variant: Bently Nevada documents 125840-01 as High Voltage AC PIM and 125840-02 as Low Voltage AC PIM, while DC installations use different part numbers. Some legacy revision combinations also have narrower input limits, so the installed PIM and power-supply revisions should be checked before approving the spare.

Module 4: Compatibility & Replacement Matrix

Field Traps — Watch Out

Low-voltage versus high-voltage AC: 125840-02 is the Low Voltage AC PIM. The 3500 documentation separately identifies 125840-01 as the High Voltage AC PIM. A replacement must match the plant’s actual incoming supply.

Legacy revision limits: Current documentation gives 85–132 VAC RMS for the LVAC configuration, but also notes that installations using older PIM and power-supply revisions can have a narrower 85–125 VAC RMS operating range. Check the revision markings on the installed hardware before applying the nominal range to the replacement.

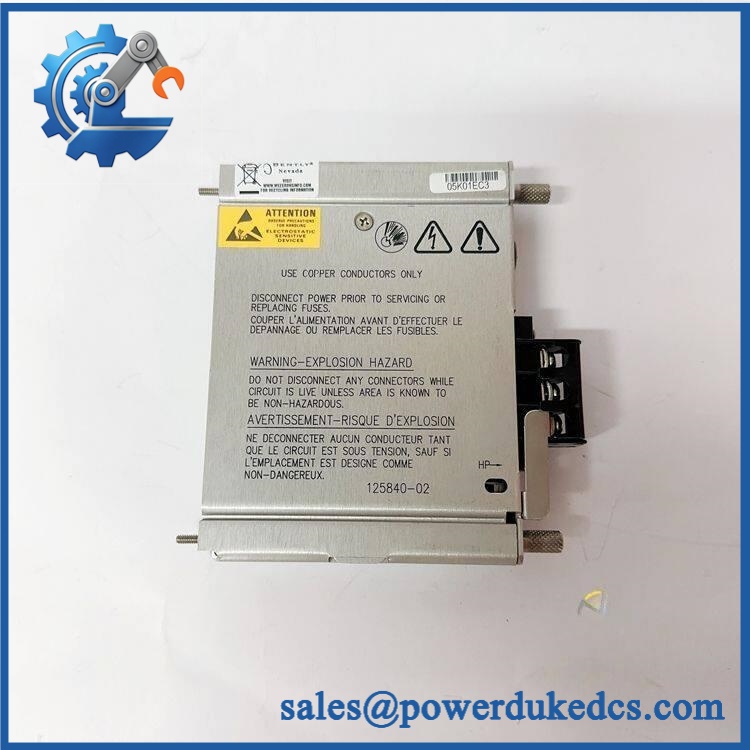

Bently Nevada 125840-02

Module 5: Quality Assurance & Testing SOP

The 125840-02 should be tested as an electrical power-input component rather than accepted solely by visual inspection.

1. Incoming inspection

• Record manufacturer, complete part number, serial number, and revision/date code.
• Perform OEM anti-counterfeit visual inspection.
• Inspect housing, terminal interfaces, PCB surfaces, and mounting hardware.
• Check for corrosion, contamination, cracked components, damaged terminals, or evidence of rework.

2. Configuration verification

• Confirm 125840-02 identification.
• Verify Low Voltage AC PIM configuration.
• Record hardware revision where available.
• Confirm the intended companion 3500/15 AC power-supply configuration.
• Photograph identification labels for traceability.

3. Electrical inspection

• Verify input terminals and insulation condition.
• Perform continuity checks where applicable.
• Perform insulation-resistance testing using an appropriate controlled test method.
• Confirm no abnormal short circuit exists between applicable power and ground points.
• Verify terminal integrity and mechanical retention.

4. Power-on testing

• Install the PIM in a compatible 3500/15 test assembly.
• Apply controlled AC input within the applicable specification.
• Perform power-on self-test (POST) at the rack/system level.
• Verify the associated power-supply status indication.
• Confirm stable rack operation without power-input or supply alarms.

5. Load and output verification

• Operate the associated power supply under representative rack loading.
• Measure applicable output voltages.
• Monitor voltage stability during representative load conditions.
• Perform I/O load testing at the rack level where applicable.
• Verify that installed 3500 modules initialize normally after power application.

6. Final QC

• Record input voltage, frequency, measured output values, revision, and serial number.
• Generate a unit-specific Test Report.
• Confirm physical and terminal condition.
• Package with suitable electrical and mechanical protection.
• Apply final QC identification before shipment.

Module 6: Procurement & Lifecycle FAQ

Is Bently Nevada 125840-02 genuinely in stock, and what is the emergency-shipping cutoff?

Physical availability should be confirmed against the actual unit and its revision. Emergency dispatch depends on QC completion, order/payment clearance, warehouse processing, and the courier cutoff; a generic product listing is not sufficient for critical-spares allocation.

How do you guarantee the condition and authenticity of an obsolete or surplus 125840-02?

Require complete part-number and revision verification, nameplate inspection, terminal inspection, electrical checks, controlled installation with a compatible 3500/15 supply, rack startup testing, and a unit-specific Test Report. Actual photographs should accompany the commercial confirmation.

Are there compatibility issues my engineers should check before issuing the PO?

Yes. First confirm that the plant uses Low Voltage AC, rather than High Voltage AC or a DC configuration. Then compare the PIM revision and associated power-supply revision. Bently Nevada documents different input ranges and separate PIM part numbers for the different power configurations.

Can I substitute 125840-01 for 125840-02?

No, not as a routine replacement. 125840-01 is the High Voltage AC PIM, while 125840-02 is the Low Voltage AC PIM. The incoming power voltage must determine the correct PIM selection.

What warranty and return terms should procurement require?

Specify 125840-02, serial number, hardware revision where applicable, tested condition, warranty duration, DOA criteria, acceptance period, and return procedure in the PO. Functional acceptance should include successful 3500/15 startup and stable operation under representative rack loading.
