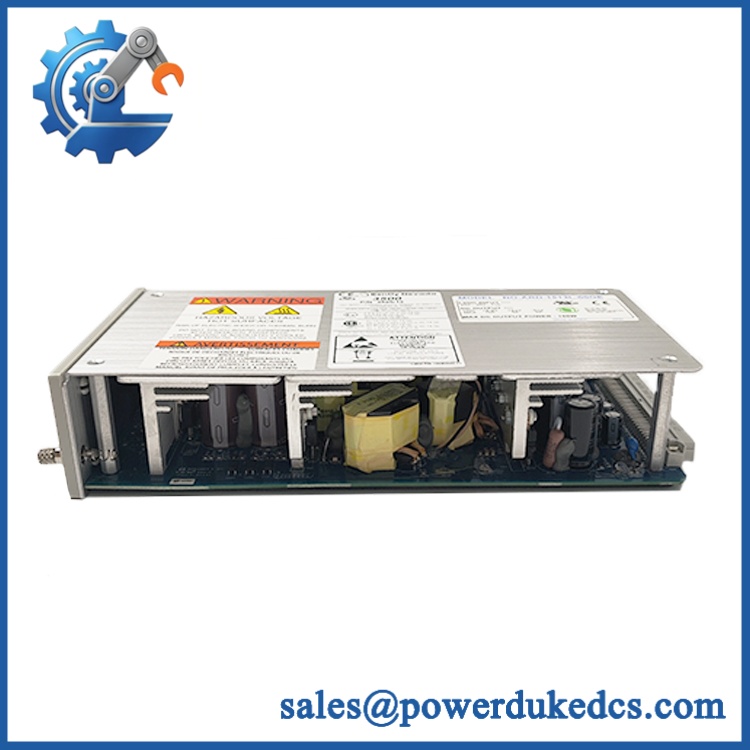

Bently Nevada 3500/15 125840-01 | High Voltage AC Power Input Module

• Brand: Bently Nevada
• Full Model Number: 3500/15 125840-01
• Lifecycle Status: Legacy / Obsolete
• Core Function: High Voltage AC Power Input Module (PIM) for 3500/15 AC Power Supply
• Top 3 Technical Specs: 175–264 VAC RMS input; 47–63 Hz; 3500/15 half-height power-supply position
• Stock & Condition: Physical stock verification required; New Surplus / Tested Refurbished; Emergency dispatch subject to QA release

Module 3: Obsolescence & Supply Chain Deep Dive

A failed Bently Nevada 125840-01 can remove AC input power from a 3500/15 rack even when the downstream monitoring modules remain fully serviceable. The 125840-01 is the High Voltage AC Power Input Module (PIM) for the legacy 3500/15 power-supply configuration. Published Bently Nevada documentation specifies a 175–264 VAC RMS input range at 47–63 Hz. The PIM is installed with the associated 3500/15 AC power-supply assembly in the dedicated left-side power position.

For an operating 3500 rack, sourcing the exact legacy PIM can have a much lower TCO than redesigning the rack around a different power architecture. Existing monitor cards, rack wiring, power distribution, and maintenance procedures can remain in place when the replacement is an exact match. This avoids additional cabinet work and reduces outage exposure. There is one critical lifecycle issue: Bently Nevada’s newer Universal AC Power Supply and Universal AC PIM are not compatible with the legacy AC power-supply and PIM arrangement. That means a 125840-01 replacement should be evaluated as preservation of the existing legacy architecture, not as an interchangeable substitute for the newer Universal AC configuration.

Module 4: Compatibility & Replacement Matrix

Bently Nevada’s documentation explicitly distinguishes the legacy High Voltage AC PIM from newer Universal AC equipment.

Estimated switch cost/time: With a verified spare already available on-site, plan approximately 1–2 hours for controlled isolation, PIM replacement, connection inspection, power-up, and rack verification. A sourced unit may require 1–5 business days for inspection and expedited transportation. These are planning estimates.

Field Traps — Watch Out

• Voltage-class mismatch: 125840-01 is the High Voltage AC PIM, with a specified 175–264 VAC RMS input range. The 125840-02 part is the low-voltage AC PIM and should not be substituted without an intentional engineering change.
• Legacy vs. Universal AC: The newer Universal AC PIM is not interchangeable with the legacy AC PIM architecture. Confirm the exact 3500/15 power-supply generation before issuing the PO.
• Companion power supply: The PIM is the input stage, not the complete power-supply module. Verify the associated 3500/15 power-supply assembly before approving the replacement.
• Rack position: The 3500/15 power-supply assemblies occupy designated half-height positions on the left side of the rack. Incorrect installation can create both mechanical and electrical issues.

Bently Nevada 3500/15 125840-01

Module 5: Quality Assurance & Testing SOP

A high-voltage AC PIM should be treated as an electrical protection component. Incoming inspection must verify both identity and dielectric/electrical condition before release.

• Part-number verification: Confirm 125840-01, Bently Nevada identification, revision information, and serial or traceability markings.
• OEM anti-counterfeit visual inspection: Inspect manufacturer markings, housing, terminal arrangement, PCB identification, protective components, and evidence of unauthorized modification.
• Physical condition inspection: Check the enclosure, connector interfaces, mounting hardware, PCB surfaces, insulation barriers, and accessible components for cracks, corrosion, contamination, or thermal damage.
• Terminal inspection: Examine AC input terminals and associated contacts for oxidation, looseness, arcing marks, or mechanical damage.
• Fuse inspection: Check the applicable PIM fuse and fuse-holder area for damage and confirm continuity using controlled procedures.
• Continuity testing: Verify applicable input, ground, and protective paths before energization.
• Insulation resistance test: Test applicable conductor-to-ground and conductor-to-conductor insulation using an approved test voltage and acceptance criterion for the assembly.
• Dielectric-strength screening: Where authorized by the applicable maintenance/test procedure, perform controlled high-potential testing without exceeding the manufacturer’s specified limits.
• Power-on self-test (POST): Install the PIM with the correct compatible 3500/15 power supply and verify normal startup behavior.
• Input-voltage test: Apply controlled AC input within the specified 175–264 VAC RMS range and record measured values.
• Output verification: Confirm the associated power supply receives stable AC input and produces the expected downstream DC rails.
• Load testing: Operate the complete power-supply assembly under a representative rack load and monitor voltage stability, current draw, and temperature.
• Protection testing: Where the test fixture permits, verify expected response to controlled abnormal input conditions.
• LED/status verification: Confirm the associated power-supply Supply OK indication operates normally.
• Extended observation: Maintain the assembly under representative load to identify intermittent input, protection, thermal, or connector faults.
• Final QC release: Record part number, input measurements, insulation-test results, fuse condition, photographs, serial/traceability data, test date, condition grade, and QC authorization.

Bently Nevada documentation lists the legacy High Voltage AC PIM as 125840-01 and the Low Voltage AC PIM as 125840-02. It also identifies the Universal AC architecture as a separate configuration that is not compatible with the legacy AC system.

Module 6: Procurement & Lifecycle FAQ

Q1. Is the Bently Nevada 3500/15 125840-01 genuinely in stock, and what is the cutoff for emergency shipping?
Physical inventory should be confirmed against the exact 125840-01 part number before the PO is accepted. Because this is a legacy PIM, actual physical availability and condition should take precedence over catalog status. Emergency dispatch depends on QA completion, warehouse location, carrier pickup, and destination.

Q2. How do you guarantee the condition and authenticity of an obsolete 125840-01?
Require exact part-number verification, OEM visual inspection, terminal and fuse inspection, continuity testing, insulation testing, controlled AC power testing, and verification with the compatible 3500/15 power-supply assembly. Photographs of the actual PIM and identification markings should be retained with the procurement record.

Q3. Can a newer Universal AC PIM replace 125840-01?
Not as a simple drop-in substitution. Bently Nevada states that the Universal AC Power Supply and Universal AC PIM are not compatible with the legacy High Voltage AC and Low Voltage AC power-supply/PIM configurations. A conversion therefore requires an engineering review of the complete rack power architecture.

Q4. Does 125840-01 require firmware compatibility checks?
No firmware is stored in the PIM. The relevant engineering checks are input-voltage class, companion power-supply type, rack position, protection components, wiring, and the resulting DC output from the associated 3500/15 power supply.

Q5. What warranty and return terms should be written into the PO?
Specify warranty duration, DOA coverage, electrical-performance coverage, insulation/functional test requirements, return authorization, inspection period, and serial-number traceability. For refurbished stock, require the actual electrical test record and clearly define coverage for failures discovered during commissioning.
