Description
- Brand: Emerson
- Full Model Number: KJ2201X1-HA1
- Ordering Number: 12P3322X022
- System/Series Family: DeltaV SIS SLS1508
- Core Function: SLS field wiring termination and signal distribution
- Top 3 Hardcore Specs: 30 VDC input; 30 mA/ch A-B; 1 A/ch A-C
- Environmental Rating: -40°C to +70°C; 5–95% RH non-condensing
- Configuration: Simplex SLS terminal block
- Stock Status: New Surplus — verify lot condition and revision before PO
The model and ordering number are consistently identified as an Emerson SLS terminal block for SLS1508 hardware.
Commercial-Technical Deep Dive
A failed terminal block can stop a safety loop even when the logic solver itself is healthy. The Emerson KJ2201X1-HA1 provides the field-side termination interface used with the SLS1508 safety system. Its published electrical limits are specific: 30 VDC input, with circuits between terminals A and B limited to 30 mA per channel and circuits between A and C rated to 1 A per channel. This is a simplex SLS terminal block, so the full hardware configuration must be checked before shipment.
The environmental specification also matters during spare-part planning. Emerson’s instruction sheet specifies -40°C to +70°C ambient operation, 5–95% non-condensing humidity, 10 g half-sine shock for 11 ms, and ISA-S71.04 Class G3 airborne contaminants. Those limits help maintenance teams screen cabinet conditions before installation (actual field performance still depends on the complete enclosure and system design).

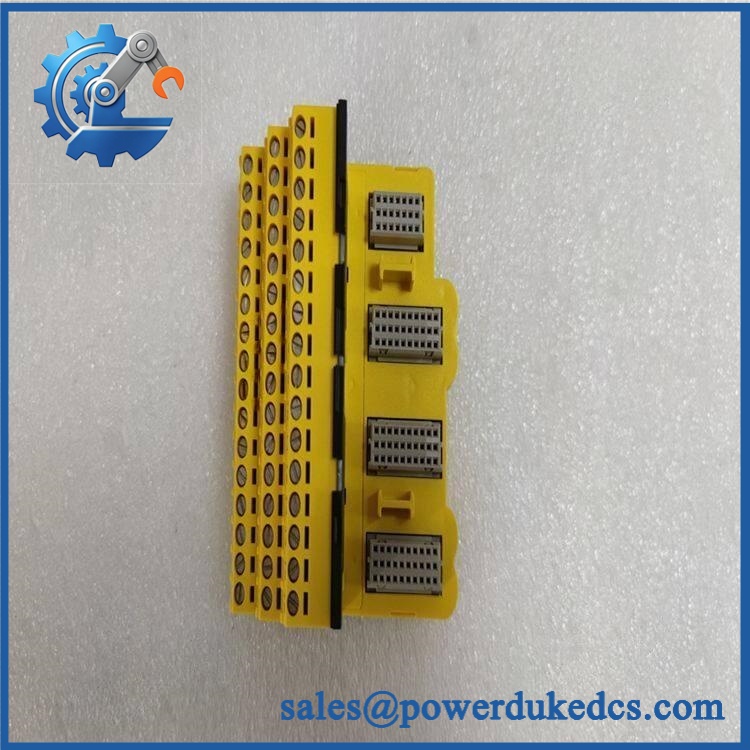

Emerson KJ2201X1-HA1
Compatibility & Installation Traps
Migration/Compatibility
For a like-for-like replacement of an existing KJ2201X1-HA1, no firmware flash or logic rewrite is normally associated with the terminal block itself. It is a hardware termination component rather than the SLS logic solver. The critical check is the complete ordering code and installed SLS configuration.
KJ2201X1-HA1 is associated with the SLS1508 architecture and is listed separately from KJ2201X1-JA1, the redundant terminal block variant. Do not substitute the JA1 or other KJ-series terminal assemblies without confirming the system drawing and configuration.
⚠️ Field Traps (Watch Out)
Trap 1 — Live insertion.
This unit must not be removed or inserted while system power is energized. Follow the applicable DeltaV SIS installation procedure and site LOTO requirements before replacement.
Trap 2 — Terminal current mismatch.
Do not treat all terminal paths as equivalent. The A-B circuit limit is 30 mA per channel, while the A-C circuit limit is 1 A per channel. Verify the field wiring against the approved termination drawing before reconnecting conductors.
Quality Assurance SOP
Each KJ2201X1-HA1 is checked against the quoted model before shipment. The inspection sequence should include OEM anti-counterfeit visual inspection, verification of the Emerson label, ordering number 12P3322X022, revision markings, enclosure condition, terminal integrity, connector condition, and visible signs of rework or contamination.
Because the KJ2201X1-HA1 is a terminal block rather than an active controller, module-level diagnostics differ from those used on an SLS logic solver. Power-on self-test (POST) checking for ERR/RUN LEDs is therefore performed on the paired active SLS hardware where applicable, not claimed as a terminal-block function. The final system check can include communication handshake verification through the associated SLS hardware, plus continuity verification across the relevant terminal paths. No calibration is required, and the unit contains no user-serviceable parts.
CRO-Driven Buyer FAQ
Is Emerson obsolete?
Third-party industrial inventories describe this part as discontinued by the manufacturer, so sourcing condition and revision deserve attention. Confirm the complete marking before purchase. Do not rely on model-family matching alone.
Can be hot-swapped?
No. The published Emerson instruction sheet explicitly states that the unit cannot be removed or inserted with system power energized. Plan a controlled shutdown and follow the applicable SIS installation procedure.
Does this terminal block require a firmware update?
No firmware is stored in the terminal block itself. For a same-part-number replacement, the main engineering checks are hardware identification, terminal arrangement, SLS configuration, and correct field wiring.
What warranty is included?
Warranty duration should be stated on the commercial quotation for the supplied lot. A typical industrial spare-part sales warranty is 12 months, but OEM factory warranty coverage should not be assumed for surplus inventory. Warranty scope normally excludes incorrect wiring, installation damage, unauthorized modification, and application outside published limits.
Can you provide technical support after delivery?
Technical support can cover model identification, ordering-number verification, nameplate checks, compatibility review, installation documentation, and basic pre-installation troubleshooting. It does not replace Emerson-approved SIS engineering, site safety procedures, or formal safety validation.
