Description
- Brand: Emerson
- Full Model Number: KJ4001X1-CA1
- Alternate Part Number: 12P0623X062
- System/Series Family: DeltaV M-Series Traditional I/O
- Core Function: Standard I/O field-wiring termination block
- Top 3 Hardcore Specs: 250 VAC; 60 VDC @ 1 A/channel; -40°C to +70°C
- Shock Rating: 10 g half-sine wave for 11 ms
- Vibration Rating: 1 mm peak-to-peak from 2–13.2 Hz; 0.7 g from 13.2–150 Hz
- Humidity: 5–95% non-condensing
- Stock Status: New Surplus subject to physical stock confirmation
Commercial-Technical Deep Dive
A failed termination block can stop an otherwise healthy DeltaV I/O channel set. The KJ4001X1-CA1 provides the field-wiring termination interface used with DeltaV M-Series Traditional I/O architecture. Its documented alternate number is 12P0623X062, which helps when older maintenance records use the legacy numbering format. The part is also covered by hazardous-area certification documentation, including Class I Division 2 and Zone 2 markings for approved installations.
The useful specification is not processor speed or firmware capacity. It is electrical and environmental tolerance at the termination point. Emerson documents a 250 VAC and 60 VDC input power rating at 1 A per channel, with operation from -40°C to +70°C. Shock tolerance reaches 10 g for an 11 ms half-sine pulse, while vibration limits are specified through 150 Hz. In a plant cabinet, that range can reduce unnecessary replacement caused by temperature or mechanical exposure (actual field performance still depends on cabinet design and wiring conditions).
Compatibility & Installation Traps
Migration/Compatibility
KJ4001X1-CA1 is a DeltaV I/O terminal block, not a programmable controller or firmware-loaded I/O processor. A firmware flash is therefore not part of the normal replacement process. Compatibility should instead be checked against the installed DeltaV I/O carrier, the associated I/O card, terminal-block keying, and the existing field wiring arrangement.
Do not treat the alternate number 12P0623X062 as a universal substitute for every KJ4001X1-family terminal block. Emerson and technical references list multiple related terminal-block part numbers. Confirm the exact suffix before removing field conductors.
⚠️ Field Traps (Watch Out)
Trap 1 — Energized removal: Emerson’s hazardous-area instruction sheet explicitly states that this unit cannot be removed or inserted while system power is energized. Use the applicable plant shutdown and isolation procedure before replacement.
Trap 2 — Wrong terminal-block variant: Similar KJ4001X1 part numbers can represent different termination configurations. Verify the full suffix, terminal arrangement, and associated I/O hardware. Never force a mechanically keyed component into an incompatible position.

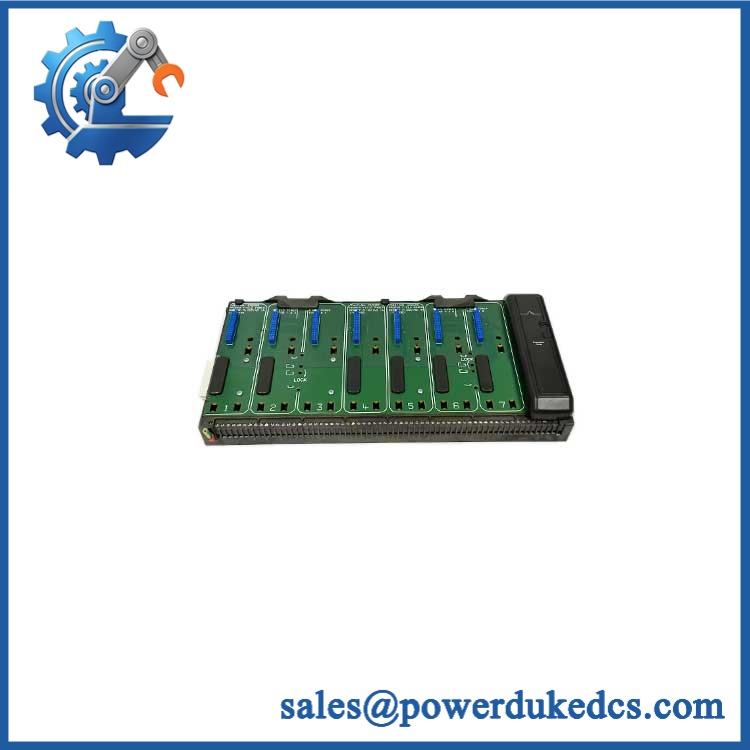

Emerson KJ4001X1-CA1
Quality Assurance SOP
Each available KJ4001X1-CA1 unit should pass a documented pre-shipment inspection before release.
- OEM anti-counterfeit visual inspection: Verify Emerson markings, part number, label format, connector geometry, housing condition, and manufacturing identifiers.
- Mechanical inspection: Check terminal interfaces, locking features, mounting points, and enclosure for cracks or deformation.
- Part-number verification: Confirm against the purchasing specification and alternate reference 12P0623X062 where applicable.
- Electrical inspection: Check accessible terminal continuity and verify the documented wiring interface before shipment.
- Power-on validation: Where the complete I/O assembly permits controlled testing, perform system POST and inspect ERR/RUN LED behavior on the associated DeltaV I/O hardware.
- Communication handshake verification: Confirm controller-to-I/O communication at the connected DeltaV subsystem after installation or controlled bench integration. The terminal block itself is passive.
- Documentation check: Record inspection results, serial or identification markings, and shipment-condition photographs.
- Packing inspection: Protect terminals and connectors against ESD, impact, contamination, and moisture during transit.
The -CA1 itself requires no calibration and contains no user-serviceable parts according to the Emerson instruction sheet.
CRO-Driven Buyer FAQ
Is Emerson -CA1 obsolete?
Third-party lifecycle references i as discontinued by the manufacturer. For existing DeltaV installations, that makes verified surplus inventory important when an exact termination-block configuration is still required. Confirm the complete suffix before ordering.
be replaced while the DeltaV system is powered?
Do not assume hot-swap capability. Emerson’s ATEX documentation states that this unit cannot be removed or inserted with system power energized. Follow the applicable DeltaV installation procedure and site isolation rules.
require firmware or configuration changes?
Normally, no firmware update applies to the terminal block itself. It is a termination component. The engineering check is hardware compatibility, terminal arrangement, keying, and correct association with the installed I/O hardware.
What warranty is provided?
Warranty: 12 months from shipment for the supplied unit, subject to the sales quotation and confirmed product condition. Technical support covers model verification, documentation review, installation guidance, and compatibility checks. Control strategy rewrites, plant commissioning, and site-specific engineering remain outside standard product support.
What should I send before ordering?
Provide the existing terminal-block part number, associated DeltaV I/O card or subsystem reference, photos of the installed assembly, and any label information. This is the fastest way to verify th variant before shipment.
