1. Emerson VE4005S2B1 | Authentic Process Control Hardware

2. Unboxing & Physical Snapshot

• Brand & Model: Emerson VE4005S2B1
• Product Family: Emerson DeltaV S-Series Traditional I/O.
• Product Type: Analog Output Card, Series 2, 8-channel, 4–20 mA with HART communication capability.
• Primary Function: Converts DeltaV controller commands into analog current output signals for field actuators, valves, positioners, and other process devices.
• Associated Part Numbers: KJ3221X1-BA1, 12P2531X082, 12P2531X102.
• Approximate Physical Dimensions (W × H × D): Approximately 125 × 41 × 105 mm.
• Estimated Shipping Weight: Approximately 0.2–0.5 kg for the module; packaged shipment weight depends on protective materials.
• Mounting Style: DeltaV S-Series carrier/backplane mounting with compatible termination block interface.
• Mechanical Features:
  • Plug-in circuit board assembly
  • Front identification label
  • Edge connector interface
  • Terminal block connection system

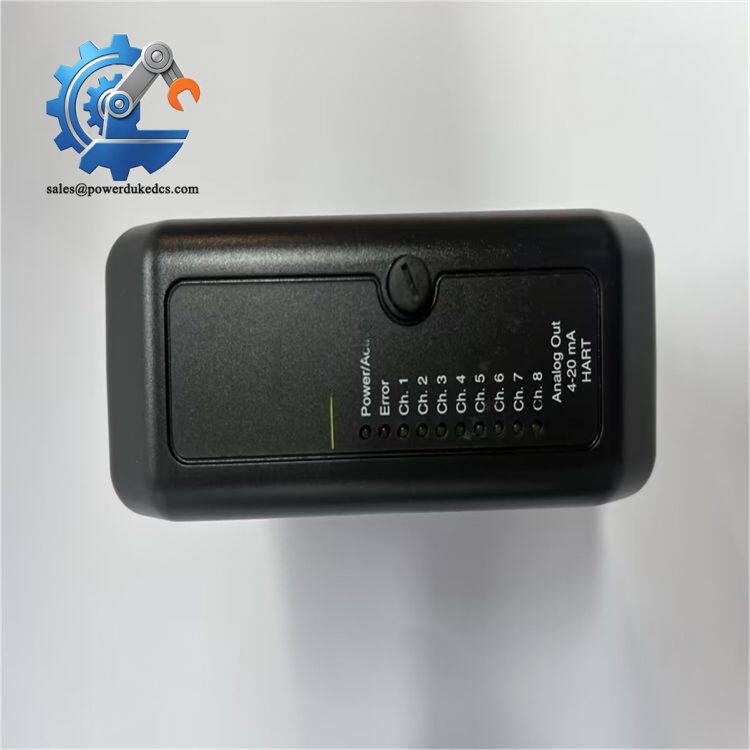

  • Status indicator LEDs
  • Retaining hardware
• Cooling Method: Passive cabinet convection cooling.
• Handling Requirements:
  • Use ESD protection during removal and installation.
  • Protect connector pins from contamination.
  • Keep the module inside protective packaging until installation.
• What’s in the Box:
  • Emerson VE4005S2B1 Analog Output Module
  • Anti-static (ESD) shielding bag
  • Protective foam packaging
  • Documentation when supplied

3. Product Introduction

The Emerson VE4005S2B1 is installed inside the DeltaV I/O subsystem where controller output commands are converted into precise analog signals for field equipment. The module works with compatible DeltaV termination blocks and provides eight 4–20 mA output channels with HART communication support (which is critical for intelligent field devices requiring both analog control and digital diagnostics).

This is a process control interface component, not a generic signal card. Inspect the terminal interface, connector contacts, module housing, and identification markings before installation. Check the date code. Long-stored I/O modules may develop contact oxidation or electronic aging that only appears during loop commissioning.

4. Core Technical Specifications

Parameter	Value
Manufacturer	Emerson
Model Number	VE4005S2B1
System Family	DeltaV S-Series Traditional I/O
Module Type	Analog Output Card
Channel Count	8 channels
Output Signal	4–20 mA
Communication Support	HART communication
Termination Block	KJ4001X1-CA1 compatible
Mounting Method	DeltaV S-Series carrier
Power Supply	DeltaV backplane supplied
Field Power	24 VDC system dependent
Power Consumption	Configuration dependent
Isolation	Field/system isolation
Diagnostics	Module status indicators
Configuration Memory	Non-volatile module memory
Firmware	Factory-installed module firmware
Operating Temperature	Approx. -40°C to +70°C
Humidity Range	5–95% RH, non-condensing
Shock Rating	Industrial control equipment specification
Vibration Rating	Industrial control equipment specification
Net Weight	Approx. 0.2 kg

Emerson VE4005S2B1

5. Global Compliance & Industry Certifications

Expected regulatory approvals and compliance considerations for the Emerson VE4005S2B1 include:

• CE Mark — applicable for electromagnetic compatibility compliance within approved DeltaV system installations.
• UL/cUL Recognition — may apply when installed as part of a certified DeltaV control system assembly.
• ATEX/IECEx Considerations — hazardous-area applications require approved barriers, certified enclosures, and complete system validation.
• Marine Approvals (DNV GL) — require confirmation at the complete automation system level.

The 4–20 mA output interface is commonly used in process plants because it provides a standardized current loop signal with good noise immunity and fault diagnosis capability.

Verify specific lot certifications with OEM.

6. Long-Term Storage & Asset Preservation Guide

• Keep the VE4005S2B1 inside the original ESD shielding bag until installation. Protect the edge connector and terminal interfaces from static discharge and airborne contamination.
• Maintain warehouse humidity below 60% RH. Moisture can accelerate corrosion on connector contacts and reduce long-term connection reliability.
• Store the module in a clean, temperature-controlled cabinet away from vibration sources, chemical vapors, and dust.
• Avoid stacking heavy items on the module housing. Mechanical pressure can damage the connector alignment features.
• Record serial number, hardware revision, firmware revision, and storage duration before returning the spare to service.

7. Physical Installation Prerequisites

• Install the VE4005S2B1 only in the approved Emerson DeltaV S-Series carrier assembly.
• Confirm compatibility with the correct termination block before replacement.
• Verify field wiring polarity and loop requirements before energization.
• Connect cabinet grounding according to site electrical standards.
• Leave at least 50 mm clearance above and below the I/O carrier area where cabinet airflow depends on convection cooling.
• Keep analog signal wiring separated from high-current switching cables.
• Use ESD protection when inserting or removing the module.
• Confirm module seating and retaining hardware before startup.


  Emerson VE4005S2B1

8. Buyer’s FAQ (Logistics & Compliance Focus)

Q: What HS Tariff Code is commonly used for Emerson VE4005S2B1?

A: Industrial DCS I/O modules are commonly classified under HS 8538 or HS 8537 depending on the declared function and customs interpretation. Some listings reference HS 85389091 for this module family.

Q: Why does Country of Origin (COO) matter for this DeltaV module?

A: COO affects customs clearance, duty assessment, supplier qualification, and lifecycle traceability. The COO should match the commercial invoice, packing list, and internal asset records.

Q: Should shipping insurance be arranged for the VE4005S2B1?

A: Recommended. Although the module is compact, the PCB assembly and connector contacts can be damaged by shock, moisture, or electrostatic exposure during international transportation.

Q: Does the VE4005S2B1 include the latest firmware pre-loaded?

A: The module contains factory-installed firmware according to its production revision. Verify compatibility with the installed DeltaV software version before commissioning or replacement.
