1. EPRO PR6423/003-030+CON021 | 8mm Probe Converter Assembly

2. Unboxing & Physical Snapshot

• Brand & Model: EPRO PR6423/003-030 + CON021
• Product Type: Eddy current displacement sensor system consisting of PR6423 proximity probe and CON021 signal converter.
• Application: Non-contact shaft vibration, axial displacement, eccentricity, and speed/key monitoring for critical rotating machinery such as turbines, compressors, pumps, and fans.
• Sensor Type: 8 mm eddy current proximity sensor.
• Measurement Range: 2 mm (80 mils).
• Initial Air Gap: Approximately 0.5 mm (20 mils).
• Approximate Sensor Dimensions: 8 mm probe body diameter; sensor assembly length varies by cable configuration.
• CON021 Converter Dimensions: Approximately 56 × 72 × 50.8 mm.
• Estimated Shipping Weight: Approximately 0.3–0.5 kg (0.7–1.1 lb) including protective packaging.
• Sensor Construction:
  • Stainless steel sensor housing
  • PTFE insulated cable
  • Nickel-plated connector components

• Converter Housing: LMgSi 0.5 F22 aluminum alloy housing.
• What’s in the Box:
  • EPRO PR6423/003-030 eddy current probe
  • CON021 signal converter
  • Mounting accessories when supplied
  • Protective packaging
  • OEM documentation when available

3. Product Introduction

Rotating machinery protection depends on accurate displacement measurement under severe mechanical conditions. The EPRO PR6423/003-030 combined with the CON021 converter forms a non-contact eddy current measurement chain designed for monitoring shaft movement, vibration, and position changes on critical machinery assets. The sensor operates without physical contact with the rotating shaft surface, reducing mechanical wear at the measurement point.

The probe and converter must be treated as a matched measurement system. Verify sensor type, converter compatibility, target material, and cable condition before installation. Inspect the probe tip, connector surfaces, and converter terminals carefully (small contamination or connector damage can introduce unstable vibration readings). The CON021 provides signal conditioning for the eddy current sensor and supports applications requiring reliable shaft displacement monitoring.

4. Core Technical Specifications

Parameter	Value
Manufacturer	EPRO (Emerson/AMS Machinery Health product line)
Model Number	PR6423/003-030 + CON021
Product Type	Eddy Current Sensor System
Sensor Technology	Non-contact eddy current displacement measurement
Probe Diameter	8 mm
Measurement Range	2 mm (80 mils)
Initial Air Gap	0.5 mm (20 mils)
Incremental Scale Factor	8 V/mm (203.2 mV/mil) ±5%
Best Fit Linearity Error	±0.025 mm at specified temperature range
Target Material	Ferromagnetic steel, typically 42CrMo4 / AISI 4140
Frequency Response	0–20,000 Hz
Converter Rise Time	<15 µs
Converter Supply Voltage	-23 VDC to -32 VDC or -21 VDC to -32 VDC depending on output mode
Converter Output Range	-4 V to -20 V or -2 V to -18 V
Sensor Protection Rating	IP66
Converter Protection Rating	IP20
Sensor Operating Temperature	Approximately -35°C to +180°C
Converter Operating Temperature	-30°C to +100°C
Converter Weight	Approximately 120 g

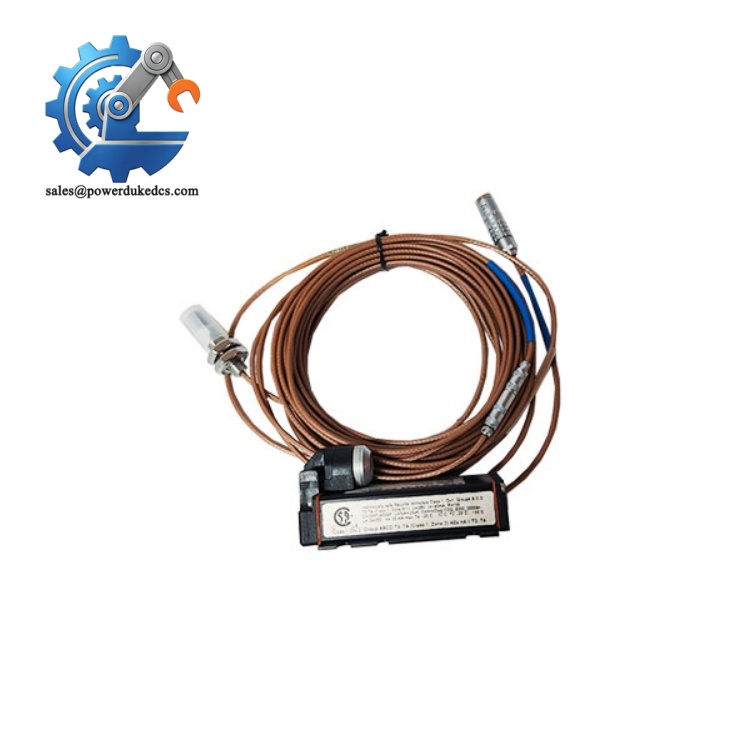

EPRO PR6423/003-030+CON021

5. Global Compliance & Industry Certifications

Expected regulatory approvals and compliance considerations for the EPRO PR6423/003-030 + CON021 system may include:

• CE Mark — applicable for approved machinery monitoring installations meeting EMC requirements.
• ATEX/IECEx — applicable only when installed as part of an approved hazardous-area monitoring system.
• UL/cUL Recognition — may apply depending on system configuration and regional approvals.
• RoHS Compliance — applicable to current manufacturing revisions.
• API 670 Application Compatibility — relevant for machinery protection systems measuring shaft displacement and vibration.
• Marine approvals such as DNV GL — only applicable when supplied within a certified marine machinery monitoring package.

ATEX and IECEx certification matters because turbine halls, compressor stations, and refinery areas may contain flammable atmospheres. The certification applies to the complete approved installation, including wiring, barriers, enclosure, and associated monitoring equipment.

Verify specific lot certifications with OEM.

6. Long-Term Storage & Asset Preservation Guide

• Keep the PR6423 probe and CON021 converter sealed in original ESD-safe packaging until installation. The probe connector and converter terminals require protection from dust and moisture.
• Maintain warehouse humidity below 60% RH. Connector oxidation can increase signal resistance after long storage periods.
• Store the probe cable without tight bends. The PTFE cable insulation is durable, but repeated mechanical stress can damage internal conductors.
• Protect the converter terminals with the original packaging covers. Avoid contact with oil mist, salt air, and chemical vapors.
• Record probe serial number, converter identification, calibration details, and storage inspection dates for maintenance traceability.

7. Physical Installation Prerequisites

• Install the PR6423 probe only with the compatible CON021 signal converter.
• Verify the correct probe gap setting before commissioning.
• Confirm the shaft target material matches the calibrated measurement system.
• Mount the CON021 converter in a clean cabinet environment with adequate airflow.
• Leave at least 50 mm clearance above and below cabinet-mounted equipment where cooling depends on natural convection.
• Keep sensor cables separated from high-current motor cables and variable-frequency drive wiring.
• Ensure cable routing avoids sharp bends, abrasion points, and excessive vibration zones.
• Confirm grounding and shielding practices according to the machinery protection system design.

8. Buyer’s FAQ (Logistics & Compliance Focus)

Q: What HS Tariff Code is commonly used for the EPRO PR6423/003-030 + CON021?

A: Eddy current monitoring systems are commonly evaluated under HS classifications related to measuring and inspection instruments, often within headings such as 9031. Final classification depends on the importing country’s customs interpretation and declared function.

Q: Does Country of Origin affect procurement records for this EPRO system?

A: Yes. Country of Origin (COO) documentation supports customs clearance, supplier qualification, and reliability audit requirements. Maintain original labels, test documents, and packaging records with the spare asset.

Q: Should shipping insurance be purchased for this sensor system?

A: Recommended. The probe is mechanically small but contains precision sensing elements, while the converter contains electronic signal-conditioning circuitry. Insure shipments according to replacement value.

Q: Does the PR6423/003-030 + CON021 include firmware updates?

A: The PR6423 probe is a passive sensing element, and the CON021 is a signal converter rather than a programmable controller. No application firmware loading is normally required. Verify calibration compatibility and system configuration before installation.
