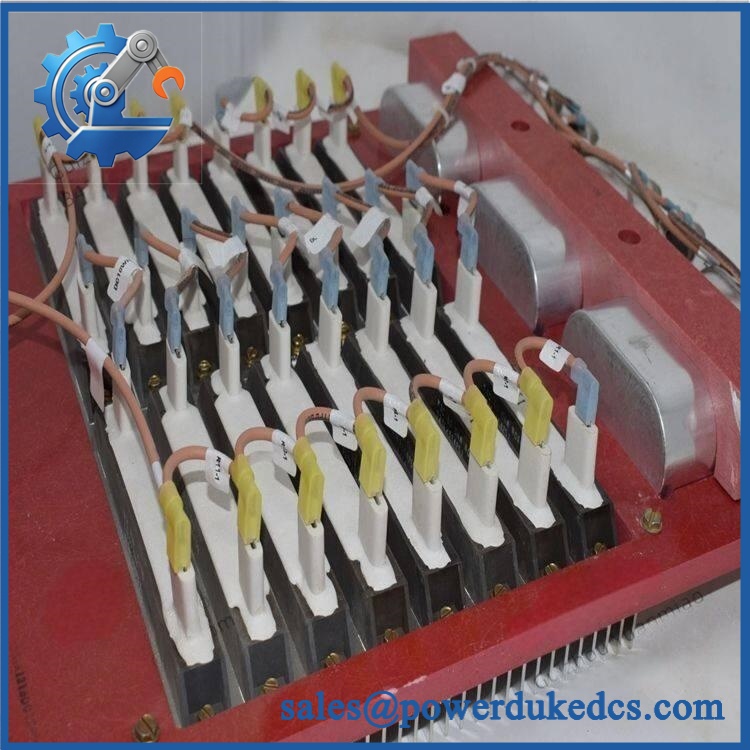

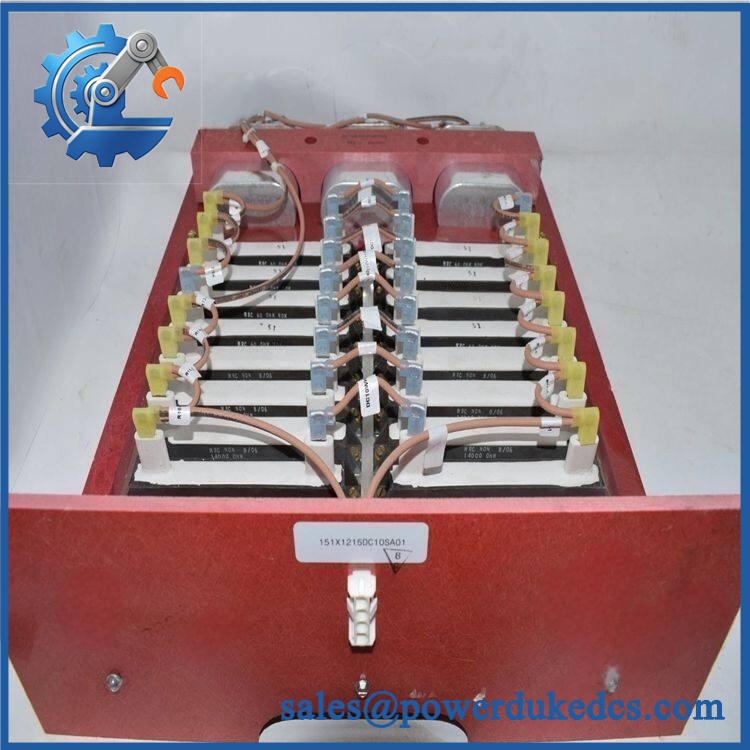

GE 151X1215DC20SA01 | 20A 115VAC 240VAC DC Drive

Description

• Brand: GE
• Full Model Number: 151X1215DC20SA01
• Product Type: DC Drive / Drive Controller
• System/Series Family: GE 151X Series
• Core Function: Controls DC motor speed, torque, and operating direction in industrial drive applications
• Top 3 Hardcore Specs: 15 HP class | 20 A output class | 115/230 VAC input class
• Drive Type: DC motor drive
• Application: Industrial DC motor speed control
• Stock Status: New surplus / condition to be confirmed per available unit

Module 3: Technical Product Introduction

A failed DC drive can stop an otherwise healthy motor and production line immediately. GE 151X1215DC20SA01 belongs to the GE 151X family of industrial DC drives, providing controlled power conversion for DC motor applications. The drive regulates motor operation through its control and power circuitry, allowing speed and torque to be managed without replacing the existing DC motor system with a newer AC-drive architecture.

The model designation places this unit in the 15 HP / 20 A class, with the associated 151X configuration using a 115/230 VAC-class input. These ratings should be confirmed against the drive nameplate and application because motor voltage, armature current, field requirements, and line configuration all affect whether the drive is suitable. —A drive that matches horsepower alone is not necessarily a valid replacement.

Module 4: Application Scenarios & Field Realities

• On legacy conveyor and material-handling equipment, the 151X drive can regulate a DC motor while preserving the existing motor and mechanical transmission. Check acceleration and deceleration behavior after replacement rather than simply confirming that the motor rotates.
• For industrial machines with older DC motors, retaining the correct drive can avoid a complete motor-and-drive conversion. Before sourcing a replacement, record armature voltage, armature current, field voltage, feedback type, and braking configuration.
• During a production-line drive failure, verify the incoming AC supply and motor circuit before condemning the controller. A shorted armature, field fault, or damaged feedback device can cause the replacement drive to trip immediately.
• Where precise speed regulation is required, inspect the feedback circuit as part of commissioning. A healthy drive with an incorrect or unstable tachometer/encoder signal can exhibit hunting, overspeed protection, or poor speed regulation.

GE 151X1215DC20SA01

Module 5: Migration, Compatibility & Installation Traps

Replacement Matrix

Field Traps — Watch Out

1. Verify armature current, not only horsepower.
The stated 20 A class must match the motor’s actual armature requirements. A 15 HP motor in one application can have different voltage/current requirements from another motor of the same horsepower rating.

2. Confirm line and motor voltage.
Do not energize the drive until the incoming AC configuration, armature output, and field supply requirements have been checked against the drive and motor nameplates.

3. Preserve the original drive settings.
Document acceleration, deceleration, current limits, speed feedback, field settings, and protection parameters before removing the existing controller. Factory-default settings are not a substitute for the machine’s commissioned values.

4. Check the motor before installing a replacement drive.
Measure insulation condition, armature resistance, field circuit condition, and feedback wiring as appropriate. A motor-side fault can destroy or trip a newly installed drive.

GE 151X1215DC20SA01

Module 6: Quality Assurance SOP

Before shipment, each available GE 151X1215DC20SA01 should pass a documented inspection sequence:

1. OEM identification inspection — Verify GE markings, complete 151X1215DC20SA01 designation, rating/nameplate information, serial information, and revision markings.
2. OEM anti-counterfeit visual inspection — Examine the enclosure, PCB assemblies, terminals, labels, power components, connectors, and evidence of unauthorized modification.
3. Physical inspection — Check power terminals, control terminals, mounting points, cooling surfaces, circuit boards, fuses, and connector interfaces for damage, corrosion, contamination, or overheating.
4. Part-number verification — Confirm the physical drive against the customer’s exact 151X1215DC20SA01 requirement.
5. Controlled AC power-on test — Apply the specified input using a protected laboratory source and monitor startup current and drive status.
6. DC output verification — Where the appropriate test fixture permits, verify the controlled DC output under a safe simulated motor/load condition.
7. Control-input verification — Test applicable enable, start/stop, speed-reference, fault, and other control interfaces.
8. Feedback verification — Where supported by the specific configuration, simulate or test the applicable speed-feedback circuit.
9. Protection-function verification — Check representative current, overvoltage, undervoltage, and fault responses using controlled test conditions appropriate to the drive.
10. Load/stability test — Operate the drive under a suitable controlled load and monitor output stability, temperature, current behavior, and fault status.
11. Final visual inspection — Recheck terminals, cooling paths, labels, and enclosure condition after testing.
12. Test record and packaging — Record the model number, revision, electrical test results, inspection date, and packaging condition before dispatch.

QA note: A DC drive should not be validated merely by a basic power-on check. Controlled output testing, command-input verification, feedback testing, protection checks, and load operation provide substantially stronger evidence of operating condition.
