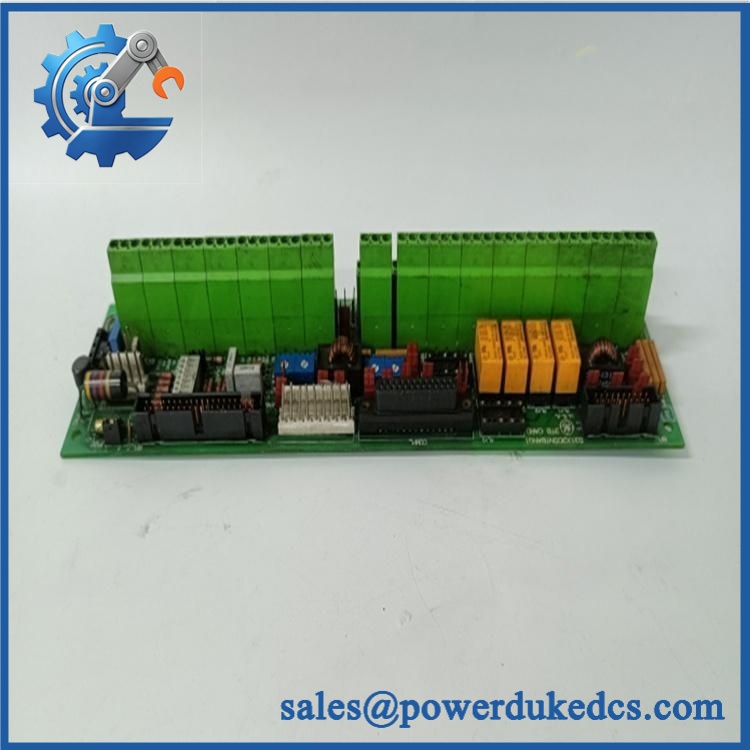

GE 531X305NTBANG1 | 5V 15V Regulated Power Terminal Board

Description

• Brand: GE General Electric
• Full Model Number: 531X305NTBANG1
• System/Series Family: GE 531X Series
• Core Function: NTB/3TB terminal interface for drive and excitation control signal distribution
• Top 3 Hardcore Specs: 5 VDC regulated supply; 15 VDC regulated supply; 24 VDC or 125 VAC unregulated supply
• Additional I/O: 7 relay outputs; encoder configuration via onboard jumpers; serial and analog interface functions
• Weight: Approx. 1 lb reported by one technical source; shipping weights vary by packaging
• Stock Status: New Surplus / Fully Tested Refurbished — confirm exact condition and test report for the available unit

Module 3: Commercial-Technical Deep Dive

When a legacy GE 531X drive or excitation cabinet is down, the terminal board is not the part to substitute casually. The 531X305NTBANG1 is identified as an NTB/3TB terminal board within the 531X family, providing the cabinet-level interface for relay outputs, analog I/O, encoder connections, and auxiliary power distribution. Its documented regulated outputs include 5 VDC and 15 VDC, while the unregulated supply options are 24 VDC or 125 VAC. That combination matters when restoring an existing panel because the board is tied to the original field wiring architecture rather than functioning as a generic signal card.

The practical ROI is downtime avoidance, not a nominal component price comparison. Seven relay outputs, encoder voltage selection through onboard jumpers, and integrated power-distribution functions reduce the number of external interface points that must be re-engineered during a board replacement. The 5 V and 15 V encoder selections are particularly important; a mismatch here can create feedback faults even when the replacement board powers normally. One field source also lists an RS-232C interface and analog test-related functions, but the exact application depends on the cabinet configuration and board revision. —Verify the installed drawing and jumper positions before energizing the replacement.

Module 4: Compatibility & Installation Traps

Migration/Compatibility

The 531X305NTBANG1 should be treated as a like-for-like 531X-series terminal-board replacement, not as a universal PLC I/O module. Available references identify it as an NTB/3TB board used with GE 531X-series drive and excitation equipment. A simple physical replacement may be possible where the cabinet documentation calls for the same part number, but do not assume firmware flashing is required or that a logic rewrite is applicable; this is primarily a terminal/interface board rather than a standalone programmable controller.

⚠️ Field Traps (Watch Out)

• Encoder jumper configuration: The onboard jumpers can configure encoder supply for 5 V or 15 V. Photograph the original jumper positions before removal and reproduce the approved configuration on the replacement. Applying the wrong encoder voltage can produce feedback instability or equipment damage.
• Mixed power references: The documented board supports regulated 5 VDC and 15 VDC supplies plus 24 VDC or 125 VAC unregulated supply options. Verify the cabinet schematic and terminal identification before connecting field wiring; confusing a regulated output with an incoming supply is a serious commissioning error.

GE 531X305NTBANG1

Module 5: Quality Assurance SOP

For surplus or replacement inventory, the shipment should be released only after a documented inspection sequence:

1. OEM anti-counterfeit visual inspection — verify GE markings, board part number, connector layout, component population, labels, revision markings, and signs of unauthorized rework.
2. Serial and traceability check — record serial/identification data and photograph the complete board before packaging.
3. PCB condition inspection — check terminal blocks, connectors, jumpers, solder joints, mounting points, and board surfaces for oxidation, contamination, cracked components, or mechanical damage.
4. Power-on self-test (POST) — when the applicable test fixture permits energization, verify expected power behavior and inspect all available status indications for abnormal ERR/RUN conditions.
5. Power verification — confirm the expected 5 VDC and 15 VDC regulated outputs and verify the applicable 24 VDC or 125 VAC supply path against the test configuration.
6. Communication/interface verification — perform the applicable serial or interface handshake and verify relay and analog channels supported by the test fixture.
7. Encoder configuration check — compare jumper settings against the customer-specified 5 V or 15 V encoder application before final release.
8. Final QC record — attach inspection results, photographs, serial information, test date, and packing inspection to the shipment file.

This is the level of documentation worth requesting for a discontinued or low-availability control board. A board that merely powers up is not equivalent to a board that has passed interface verification.

Module 6: CRO-Driven Buyer FAQ

1. Is the GE 531X305NTBANG1 still available as an original replacement?

The part is still listed by multiple industrial automation suppliers, including listings identifying it specifically as a GE 531X-series NTB/3TB terminal board. Because current inventory condition varies by lot, request the exact part-number photograph, identification label, and test status before purchase.

2. Is 531X305NTBANG1 a drop-in replacement?

When the existing cabinet is specified for the exact 531X305NTBANG1 part number, replacement is generally approached as a like-for-like board change. Do not treat similarly named 531X boards as interchangeable without checking the system drawing, connector arrangement, board revision, and jumper configuration.

3. Can I hot-swap this terminal board?

Do not assume hot-swap capability. This is a terminal/interface board carrying power and field connections, including configurations involving 125 VAC. Follow the equipment manufacturer’s shutdown, isolation, and lockout procedure unless the specific cabinet documentation explicitly authorizes energized replacement.

4. Does the replacement require firmware programming?

Normally, the 531X305NTBANG1 is not approached like a software-configured PLC CPU that requires a firmware image before installation. The critical installation variables are the correct board revision, field wiring, and onboard jumper configuration. Verify the original machine documentation before commissioning.

5. What warranty and technical support should I expect?

Warranty terms depend on the supplier and the condition of the specific unit. Published market listings show examples ranging from 12-month coverage to longer supplier-specific warranty programs, so the warranty should be stated in writing on the quotation. Technical support should cover product identification, compatibility review, installation documentation, and test evidence; application-specific control logic modification or field commissioning should be treated as a separate engineering service.
